PSL-FP-IFR26650EC

PSL-FP Series

Where to buy
Download Technical Data Sheet

Features

Specifications

Terminal Options

  • 3.2V 3.4Ah High performance 26650 LiFePO4 energy cell
  • 3.2V 3400mAh rechargeable battery
  • Super safe chemistry reducing the risk of explosion or combustion due to high impact, overcharging or short circuit situation
  • Construct custom battery design by connecting two or more cells in parallel and/or series
  • Fast charging and low self-discharge rate
  • Durable steel case material
  • UL 1642 certified
  • UN 38.3 certified

Model Number:

PSL-FP-IFR26650EC

Nominal voltage:

3.2V

Capacity @20HR (AH):

3.4 Ah

Weight:

0.085kg / 0.19lbs

Dimensions

Length:

2.58'' / 65.7mm

Depth:

0.99'' / 26.2mm

FLAT
  • 3.2V 3.4Ah High performance 26650 LiFePO4 energy cell
  • 3.2V 3400mAh rechargeable battery
  • Super safe chemistry reducing the risk of explosion or combustion due to high impact, overcharging or short circuit situation
  • Construct custom battery design by connecting two or more cells in parallel and/or series
  • Fast charging and low self-discharge rate
  • Durable steel case material
  • UL 1642 certified
  • UN 38.3 certified

Model Number:

PSL-FP-IFR26650EC

Nominal voltage:

3.2V

Capacity @20HR (AH):

3.4 Ah

Weight:

0.085kg / 0.19lbs

Dimensions

Length:

2.58'' / 65.7mm

Depth:

0.99'' / 26.2mm

FLAT

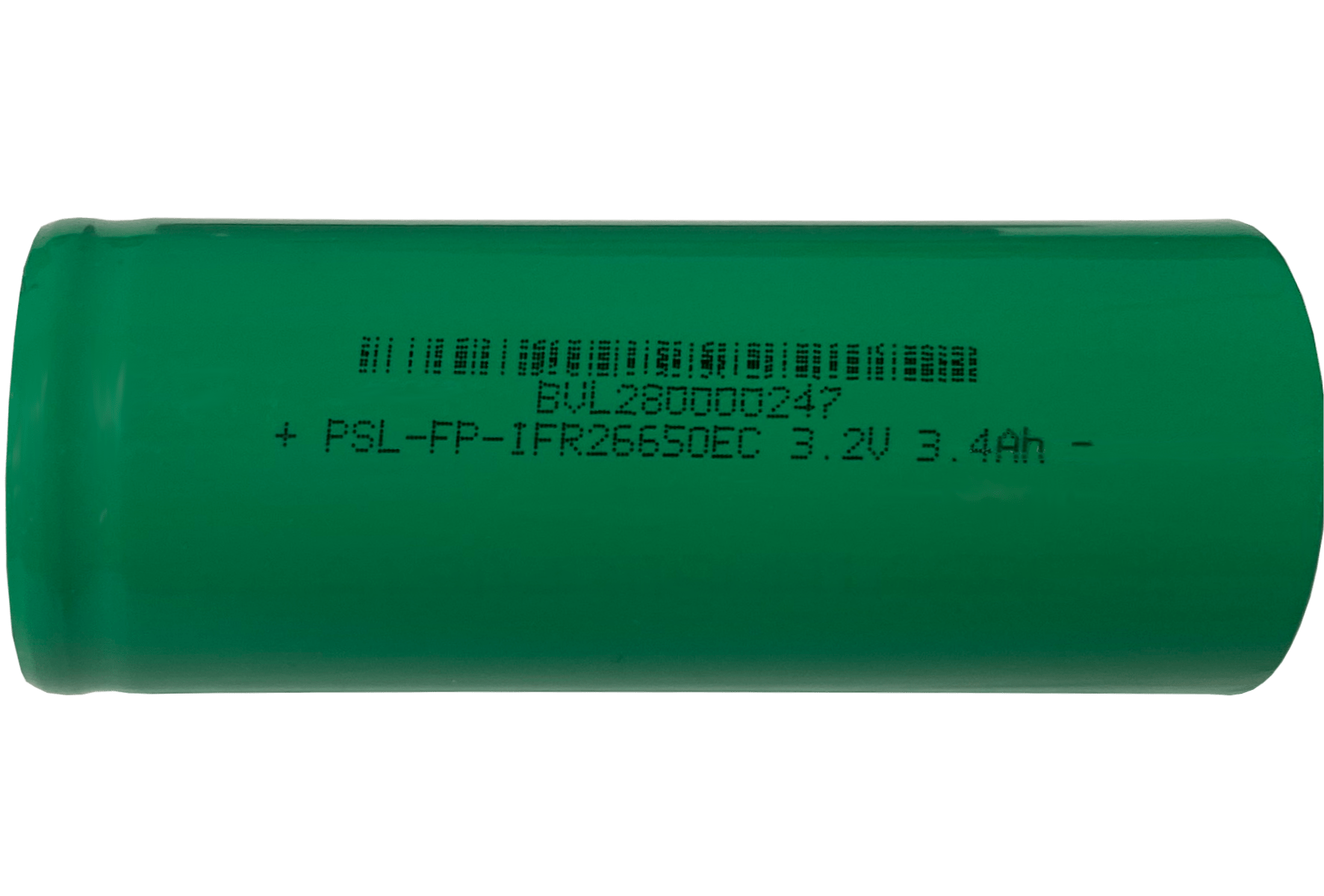

Product Image

Power Sonic also supply a 26650 LiFePO4 Power Cell

MODEL SUMMARY

The PSL-FP-IFR26650EC is part of our PSL-FP range of Lithium Iron Phosphate (LiFePO4) cells. With high efficiency and ultra-fast charging and discharging the 3.2V 3.4Ah 26650 cylindrical energy cell is ideal for a variety of industrial applications where a long-life span and quick charging capabilities are needed. With a button terminal the 26650 lithium iron phosphate battery provides different options for configuration. Delivering 2000 cycles at 100% depth of discharge (DoD). The PSL-FP-IFR26650EC is an energy cell. Energy cells are designed to deliver sustained current over a long period of time, making them ideal for use in cyclic applications including energy storage, electric scooters, electric wheelchairs and much, much more.

Power Sonic's LiFePO4 cells are a much safer option than other battery technologies such as LiCoO2 and manganese. Our 26650 battery cells have excellent thermal and chemical stability and can discharge within a temperature range of -20°C to 60°C.

certificate certificate
