Innovative Battery Energy Storage Systems (BESS)

BESS FEATURES

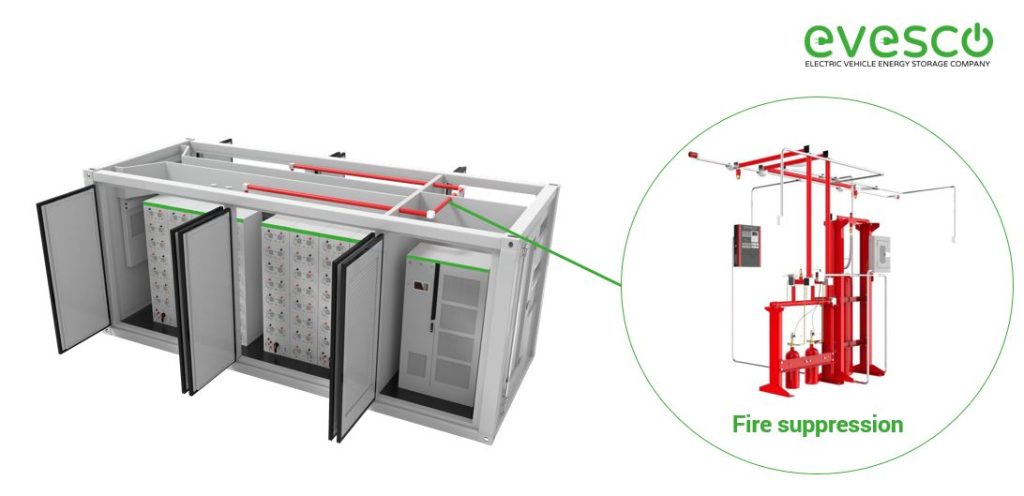

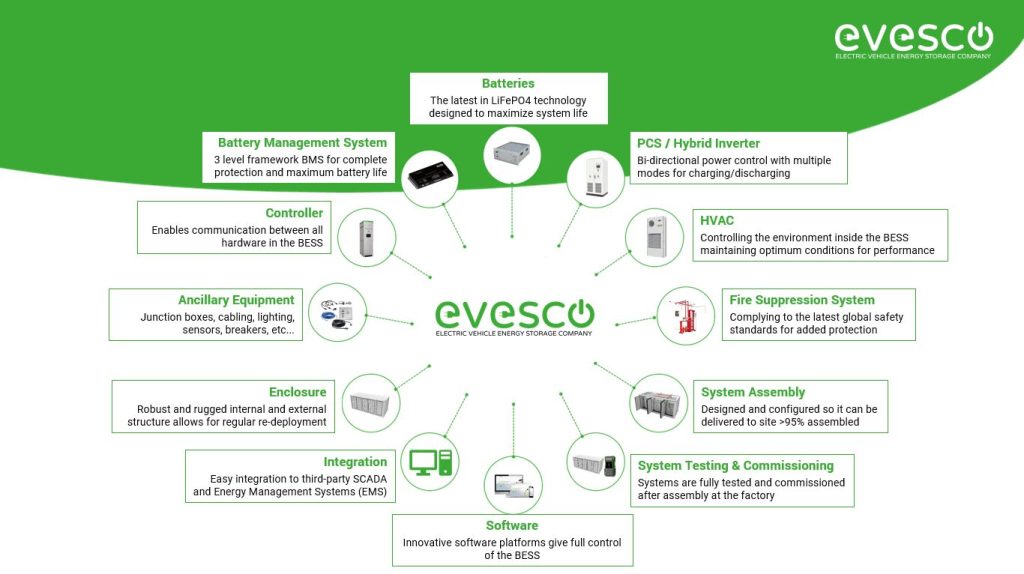

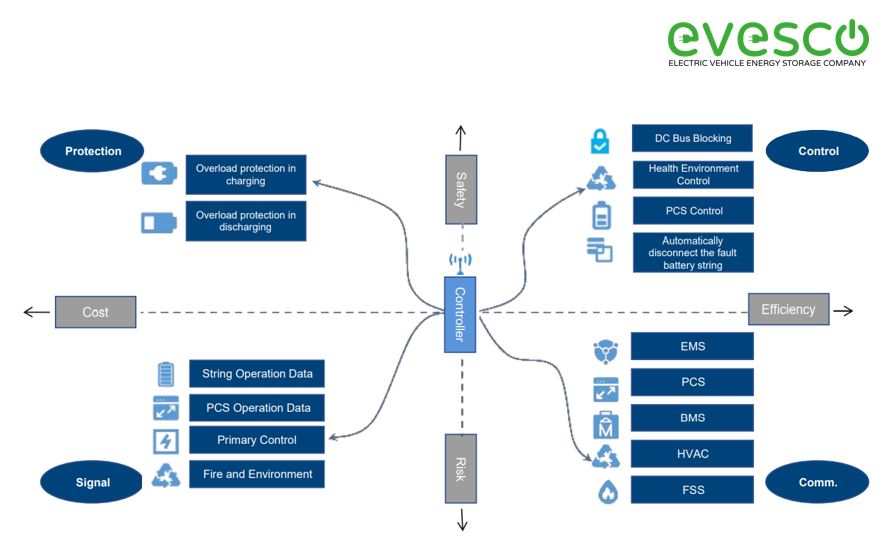

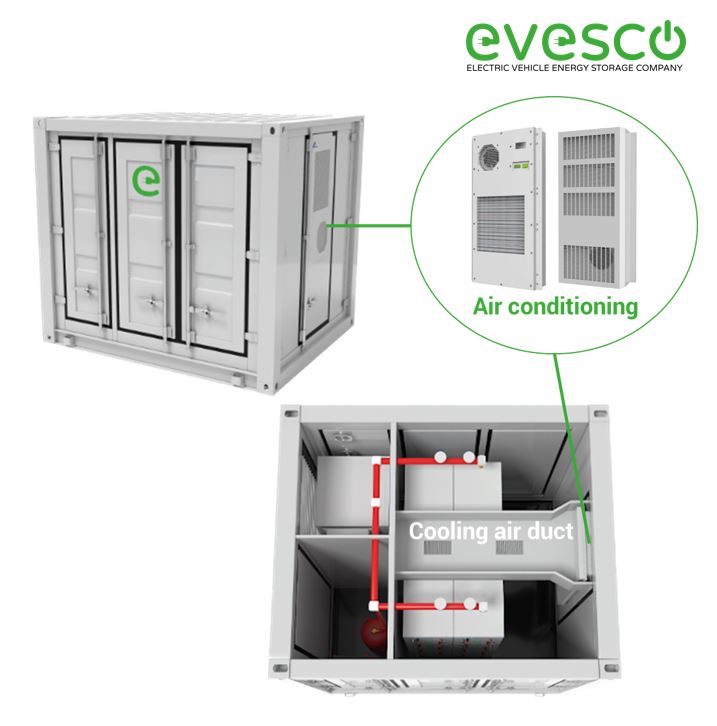

  • All-in-one design complete with battery, PCS, HVAC, fire suppression, and smart controller

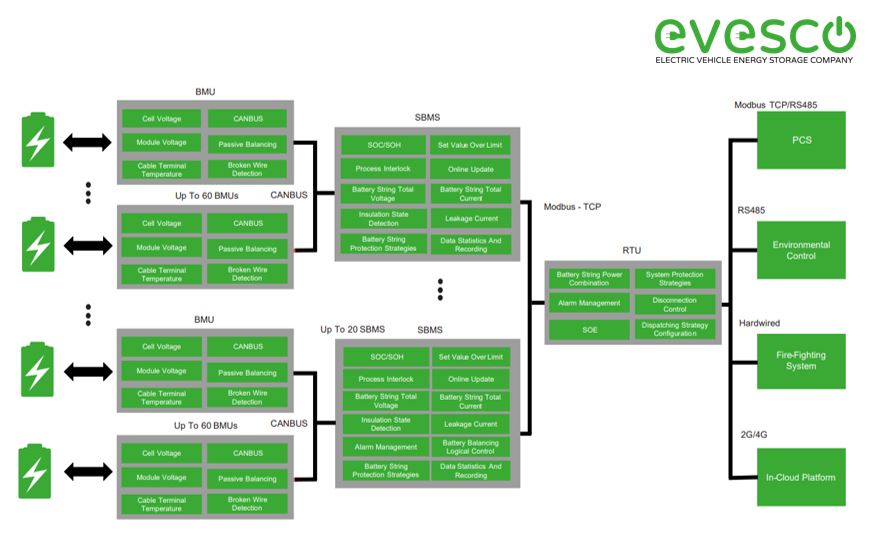

  • Maximum safety utilizing the safest type of lithium battery chemistry (LiFePO4) combined with an intelligent 3-level battery management system
  • Outstanding performance and long lifespan
  • Bi-directional technology with multiple modes for flexible charging and discharging
  • Optimized for both on-grid and off-grid (island mode) applications
  • Modular and scalable design enabling multiple MW of rated power and MWh of capacity
  • Prefabricated containerized design with many models >95% pre-assembled
  • Robust and rugged internal and external structure
  • Designed for quick and easy installation and maintenance
Summary Image

BATTERY ENERGY STORAGE SYSTEMS (BESS)

EVESCO’s energy storage solutions have been developed on the back of over 50 years of expertise and innovation in battery and power conversion technology. The addition of battery energy storage to EV charging, solar, wind, and other renewable energy applications can increase revenues dramatically. The EVESCO energy storage system creates tremendous value and flexibility for customers by utilizing stored energy during peak periods.

All of EVESCO’s energy storage systems are power source agnostic and can integrate with a variety of different power generators in both on-grid and off-grid, also known as island mode, scenarios. If a grid connection is unavailable the system can integrate with solar, wind, power generators utilizing biofuels or natural gas, and fuel cells powered by hydrogen.

ALL-IN-ONE CONTAINERIZED ENERGY STORAGE SYSTEMS

EVESCO’s 5ft, 10ft and 20ft all-in-one containerized energy storage systems are designed to be Plug & Play solutions, manufactured, pre-configured, commissioned, and tested at our production facilities. This results in minimal on-site impact and almost instant operation. EVESCO's 40ft containerized systems are delivered pre-fabricated with only the battery system needing to be assembled. While EVESCO offers several standardized solutions, our energy storage systems have been engineered to offer the flexibility to be adapted to your specific needs. The containerized solutions are configured with batteries, a power conversion system, HVAC, smart controller, and all associated safety equipment including fire suppression and a 3-level battery management system.

ES BESS Series

ES-10001000-EU

EVESCO’s ES-10001000-EU is an all-in-one containerized energy storage system that creates tremendous value and flexibility for commercial and...

Specs:

Rated Power: 1MW
Rated Capacity: 1106kWh
DC Voltage Range: 672 - 852 VDC
Supply Input: 400VAC / 50Hz

View ES-10001000-EU

ES-10001000-NA

EVESCO’s ES-10001000-NA is an all-in-one containerized energy storage system that creates tremendous value and flexibility for commercial and...

Specs:

Rated Power: 1MW
Rated Capacity: 1106kWh
DC Voltage Range: 672 - 852 VDC
Supply Input: 480VAC / 60Hz

View ES-10001000-NA

ES-10002000-EU

EVESCO’s ES-10002000-EU is an all-in-one containerized energy storage system that creates tremendous value and flexibility for commercial and...

Specs:

Rated Power: 1MW
Rated Capacity: 2212kWh
DC Voltage Range: 672 - 852 VDC
Supply Input: 400VAC / 50Hz

View ES-10002000-EU

ES-10002000-NA

EVESCO’s ES-10002000-NA is an all-in-one containerized energy storage system that creates tremendous value and flexibility for commercial and...

Specs:

Rated Power: 1MW
Rated Capacity: 2212kWh
DC Voltage Range: 672 - 852 VDC
Supply Input: 480VAC / 60Hz

View ES-10002000-NA

ES-10002000S

EVESCO’s ES-10002000S is an all-in-one and modular battery energy storage system that creates tremendous value and flexibility for commercial and...

Specs:

Rated Power: 1MW
Rated Capacity: 2064kWh
DC Voltage Range: 1075.2 - 1363.2 VDC
Supply Input: 690VAC, 50 / 60Hz

View ES-10002000S

ES-100128-EU

EVESCO’s ES-100128-EU is an all-in-one containerized energy storage system that creates tremendous value and flexibility for commercial and...

Specs:

Rated Power: 100kW
Rated Capacity: 128kWh
DC Voltage Range: 314 - 398 VDC
Supply Input: 400VAC / 50Hz

View ES-100128-EU

ES-100128-NA

EVESCO’s ES-100128-NA is an all-in-one containerized energy storage system that creates tremendous value and flexibility for commercial and...

Specs:

Rated Power: 100kW
Rated Capacity: 128kWh
DC Voltage Range: 314 - 398 VDC
Supply Input: 480VAC / 60Hz

View ES-100128-NA

ES-100192-EU

EVESCO’s ES-100192-EU is an all-in-one containerized energy storage system that creates tremendous value and flexibility for commercial and...

Specs:

Rated Power: 100kW
Rated Capacity: 192kWh
DC Voltage Range: 314 - 398 VDC
Supply Input: 400VAC / 50Hz

View ES-100192-EU

ES-100192-NA

EVESCO’s ES-100192-NA is an all-in-one containerized energy storage system that creates tremendous value and flexibility for commercial and...

Specs:

Rated Power: 100kW
Rated Capacity: 192kWh
DC Voltage Range: 314 - 398 VDC
Supply Input: 480VAC / 60Hz

View ES-100192-NA

ES-100256-EU

EVESCO’s ES-100256-EU is an all-in-one containerized energy storage system that creates tremendous value and flexibility for commercial and...

Specs:

Rated Power: 100kW
Rated Capacity: 256kWh
DC Voltage Range: 314 - 398 VDC
Supply Input: 400VAC / 50Hz

View ES-100256-EU

ES-100256-NA

EVESCO’s ES-100256-NA is an all-in-one containerized energy storage system that creates tremendous value and flexibility for commercial and...

Specs:

Rated Power: 100kW
Rated Capacity: 256kWh
DC Voltage Range: 314 - 398 VDC
Supply Input: 480VAC / 60Hz

View ES-100256-NA

ES-100384-EU

EVESCO’s ES-100384-EU is an all-in-one containerized energy storage system that creates tremendous value and flexibility for commercial and...

Specs:

Rated Power: 100kW
Rated Capacity: 384kWh
DC Voltage Range: 314 - 398 VDC
Supply Input: 400VAC / 50Hz

View ES-100384-EU

ES-100384-NA

EVESCO’s ES-100384-NA is an all-in-one containerized energy storage system that creates tremendous value and flexibility for commercial and...

Specs:

Rated Power: 100kW
Rated Capacity: 384kWh
DC Voltage Range: 314 - 398 VDC
Supply Input: 480VAC / 60Hz

View ES-100384-NA

ES-250500-EU

EVESCO’s ES-250500-EU is an all-in-one containerized energy storage system that creates tremendous value and flexibility for commercial and...

Specs:

Rated Power: 250kW
Rated Capacity: 553kWh
DC Voltage Range: 672 - 852 VDC
Supply Input: 400VAC / 50Hz

View ES-250500-EU

ES-250500-NA

EVESCO’s ES-250500-NA is an all-in-one containerized energy storage system that creates tremendous value and flexibility for commercial and...

Specs:

Rated Power: 250kW
Rated Capacity: 553kWh
DC Voltage Range: 672 - 852 VDC
Supply Input: 480VAC / 60Hz

View ES-250500-NA

ES-5001000-EU

EVESCO’s ES-5001000-EU is an all-in-one containerized energy storage system designed to create tremendous value and flexibility for commercial and...

Specs:

Rated Power: 500kW
Rated Capacity: 1106kWh
DC Voltage Range: 672 - 852 VDC
Supply Input: 400VAC / 50Hz

View ES-5001000-EU

ES-5001000-NA

EVESCO’s ES-5001000-NA is an all-in-one containerized energy storage system designed to create tremendous value and flexibility for commercial and...

Specs:

Rated Power: 500kW
Rated Capacity: 1106kWh
DC Voltage Range: 672 - 852 VDC
Supply Input: 480VAC / 60Hz

View ES-5001000-NA

ES-500500-EU

EVESCO’s ES-500500-EU is an all-in-one containerized energy storage system designed to create tremendous value and flexibility for commercial and...

Specs:

Rated Power: 500kW
Rated Capacity: 553kWh
DC Voltage Range: 672 - 852 VDC
Supply Input: 400VAC / 50Hz

View ES-500500-EU

ES-500500-NA

EVESCO’s ES-500500-NA is an all-in-one containerized energy storage system that creates tremendous value and flexibility for commercial and...

Specs:

Rated Power: 500kW
Rated Capacity: 553kWh
DC Voltage Range: 672 - 852 VDC
Supply Input: 480VAC / 60Hz

View ES-500500-NA

ES-50128-EU

EVESCO’s ES-50128-EU is an all-in-one containerized energy storage system that creates tremendous value and flexibility for commercial and...

Specs:

Rated Power: 50kW
Rated Capacity: 128kWh
DC Voltage Range: 314 - 398 VDC
Supply Input: 400VAC / 50Hz

View ES-50128-EU

ES-50128-NA

EVESCO’s ES-50128-NA is an all-in-one containerized energy storage system that creates tremendous value and flexibility for commercial and...

Specs:

Rated Power: 50kW
Rated Capacity: 128kWh
DC Voltage Range: 314 - 398 VDC
Supply Input: 480VAC / 60Hz

View ES-50128-NA

ES-50192-EU

EVESCO’s ES-50192-EU is an all-in-one containerized energy storage system that creates tremendous value and flexibility for commercial and...

Specs:

Rated Power: 50kW
Rated Capacity: 192kWh
DC Voltage Range: 314 - 398 VDC
Supply Input: 400VAC / 50Hz

View ES-50192-EU

ES-50192-NA

EVESCO’s ES-50192-NA is an all-in-one containerized energy storage system that creates tremendous value and flexibility for commercial and...

Specs:

Rated Power: 50kW
Rated Capacity: 192kWh
DC Voltage Range: 314 - 398 VDC
Supply Input: 480VAC / 60Hz

View ES-50192-NA

ES-5064-EU

EVESCO’s ES-5064-EU is an all-in-one containerized energy storage system that creates tremendous value and flexibility for commercial and...

Specs:

Rated Power: 50kW
Rated Capacity: 64kWh
DC Voltage Range: 314 - 398 VDC
Supply Input: 400VAC / 50Hz

View ES-5064-EU

ES-5064-NA

EVESCO’s ES-5064-NA is an all-in-one containerized energy storage system that creates tremendous value and flexibility for commercial and...

Specs:

Rated Power: 50kW
Rated Capacity: 64kWh
DC Voltage Range: 314 - 398 VDC
Supply Input: 480VAC / 60Hz

View ES-5064-NA

The electric grid is facing challenges that have never been experienced before. The electrification of transport, heating, and other technologies has increased electricity demand across the world and consumers are demanding clean, reliable, and affordable energy. Innovative battery energy storage is helping transform the grid, making it more reliable and resilient while unlocking new opportunities and revenue streams for businesses.

WORK WITH EVESCO

We understand the complexities of energy storage and power conversion and will assess your requirements in detail to ensure you get the optimal solution for your specific needs. We offer both standardized energy storage systems and customized solutions that can be tailored to your exacting power and capacity requirements.

Read more Read less

Reduce Energy Bills

  • By optimizing their energy, businesses maximize savings by reducing peak grid usage and demand charges on energy bills

Lower Greenhouse Gas Emissions

  • Demonstrate leadership in sustainability and increase control over clean energy usage to meet ESG objectives

Generate Revenue

  • By participating in demand response programs that help relieve stress on the grid, businesses can generate additional revenue

Increase Business Resilience

  • With the negative effects of increasing blackouts, surges, and power outages, the need for reliable backup power has never been so critical
