PSL-FP-IFR18650EC

PSL-FP Series

Where to buy
Download Technical Data Sheet

Features

Specifications

Terminal Options

  • High performance LiFePO4 energy cell
  • Super safe chemistry reducing the risk of explosion or combustion due to high impact, overcharging or short circuit situation
  • Construct custom battery design by connecting two or more cells in parallel and/or series
  • Fast charging and low self-discharge rate
  • Durable steel case material
  • UL 1642 certified
  • UN 38.3 certified

Model Number:

PSL-FP-IFR18650EC

Nominal voltage:

3.2V

Capacity @20HR (AH):

1.5 Ah

Weight:

0.04kg / 0.09lbs

Dimensions

Length:

2.56'' / 65mm

Depth:

0.72'' / 18.2mm

Button
  • High performance LiFePO4 energy cell
  • Super safe chemistry reducing the risk of explosion or combustion due to high impact, overcharging or short circuit situation
  • Construct custom battery design by connecting two or more cells in parallel and/or series
  • Fast charging and low self-discharge rate
  • Durable steel case material
  • UL 1642 certified
  • UN 38.3 certified

Model Number:

PSL-FP-IFR18650EC

Nominal voltage:

3.2V

Capacity @20HR (AH):

1.5 Ah

Weight:

0.04kg / 0.09lbs

Dimensions

Length:

2.56'' / 65mm

Depth:

0.72'' / 18.2mm

Button

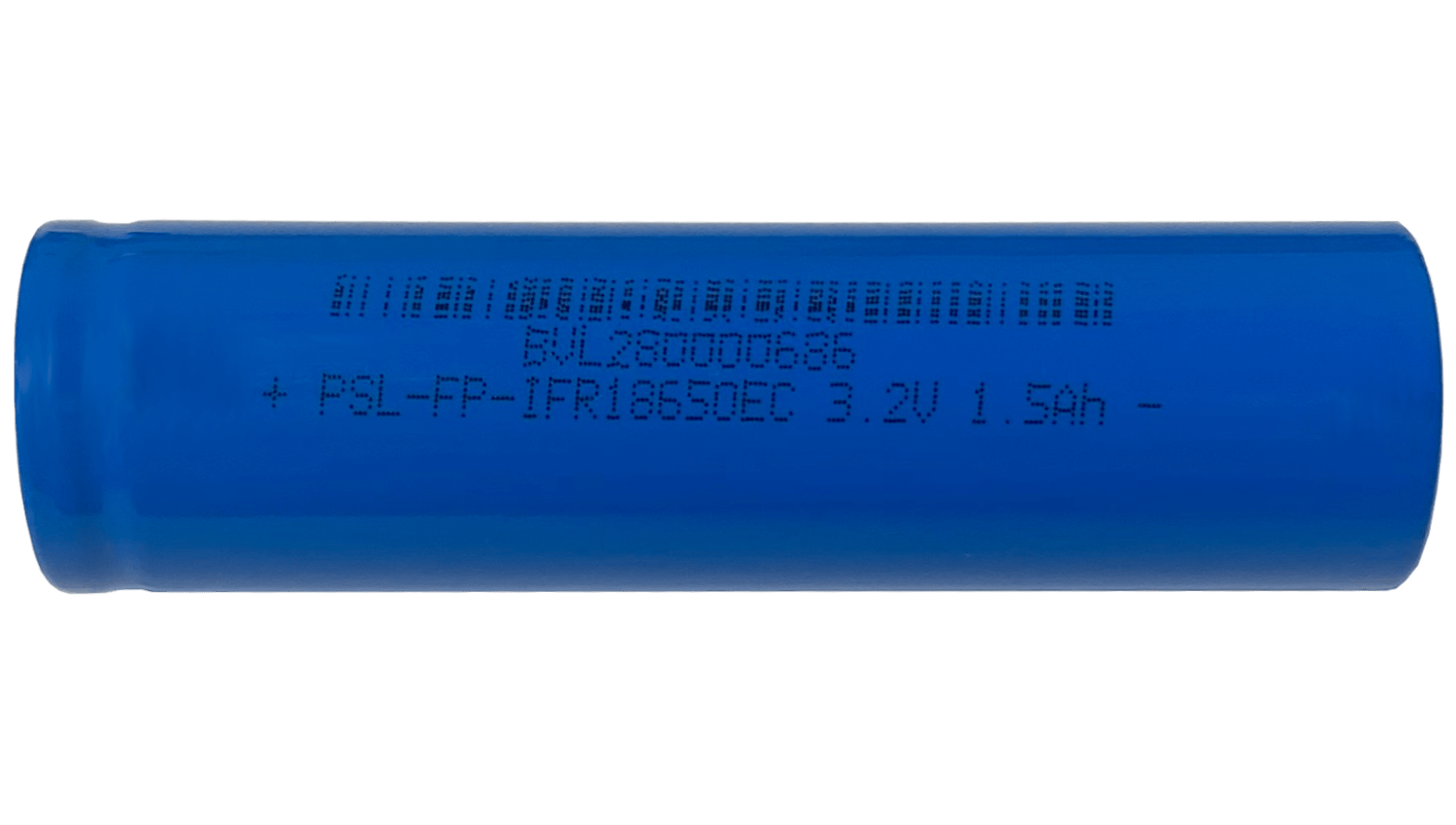

Product Image

MODEL SUMMARY

The PSL-FP-IFR18650EC is part of our PSL-FP range of Lithium Iron Phosphate (LiFePO4) cells. With high efficiency and ultra-fast charging and discharging the 3.2V 1.5Ah cylindrical energy cell is ideal for a variety of industrial applications where a long-life span and quick charging capabilities are needed. With a button terminal the PSL-FP-IFR18650EC provides different options for configuration. Delivering 2000 cycles at 100% depth of discharge (DoD). The PSL-FP-IFR18650EC is an energy cell. Energy cells are designed to deliver sustained current over a long period of time, making them ideal for use in cyclic applications.
