PSL-SC SERIES - SERIES CONNECTION LITHIUM BATTERIES

RANGE FEATURES

  • Super safe lithium iron phosphate (LiFePO4) chemistry
  • Higher capacity or voltage capability through parallel or series connection
  • Delivers twice the power of lead acid batteries, even at high discharge rates, while maintaining constant power
  • A smart battery management system (BMS) controls the parameters of the battery to provide optimum safety and battery life
  • Compact design and only 40% of the weight of comparable lead acid batteries
  • Faster charging and lower self-discharge
  • Up to 10 times longer cycle life than lead acid batteries
  • Rugged impact resistant ABS case and cover
Summary Image

DEPENDABLE LITHIUM BATTERIES THAT CAN BE CONNECTED IN SERIES OR PARALLEL

Combining proven lithium technology with an intelligent battery management system (BMS), the Power Sonic PSL-SC range delivers a lithium battery that lasts longer, weighs less and charges quicker than the equivalent lead acid battery.

At the heart of every Power Sonic PSL-SC lithium battery is an intelligent BMS that monitors and reacts to multiple voltage, current, and temperature events to maximize performance, battery life and safety. With its advanced BMS design, the PSL-SC range can be connected in a series or parallel configuration up to 4 batteries (model dependant) providing a solution for higher voltage and higher capacity applications.

KNOW YOUR BATTERY MODEL NUMBER?

If you know the model number of the battery you are looking for, please enter it below.

Oops looks like something went wrong

X

WANT TO FILTER OUR FULL BATTERY RANGE?

Click here

PSL-SC SERIES

Sort by



Voltage

Capacity

Min (7)
01

Max (300)
01

Weight (Kg) (Pound)

01

Terminal Options

Height (mm) (inches)

01

Length (mm) (inches)

01

Width (mm) (inches)

01

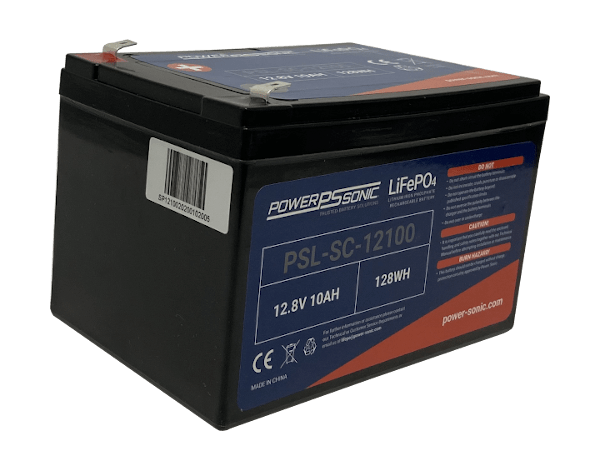

PSL-SC-12100

The PSL-SC-12100 is part of our deep cycle lithium series and parallel connection range which can be connected in a series or parallel configuration...

Capacity Ah :

10.0 AH

Voltage:

12.8V

View PSL-SC-12100

PSL-SC-121000-G27

The PSL-SC-121000-G27 is part of our deep cycle lithium series and parallel connection range which can be connected in a series or parallel...

Capacity Ah :

100.0 AH

Voltage:

12.8V

View PSL-SC-121000-G27

PSL-SC-121000-G31

The PSL-SC-121000-G31 is part of our deep cycle lithium series and parallel connection range which can be connected in a series or parallel...

Capacity Ah :

100.0 AH

Voltage:

12.8V

View PSL-SC-121000-G31

PSL-SC-12120

The PSL-SC-12120 is part of our deep cycle lithium series and parallel connection range which can be connected in a series or parallel configuration...

Capacity Ah :

12.0 AH

Voltage:

12.8V

View PSL-SC-12120

PSL-SC-121250-G31

The PSL-SC-121250-G31 is part of our deep cycle lithium series and parallel connection range which can be connected in a series or parallel...

Capacity Ah :

125.0 AH

Voltage:

12.8V

View PSL-SC-121250-G31

PSL-SC-121500-G8D

The PSL-SC-121500-G8D is part of our deep cycle lithium series and parallel connection range which can be connected in a series or parallel...

Capacity Ah :

150.0 AH

Voltage:

12.8V

View PSL-SC-121500-G8D

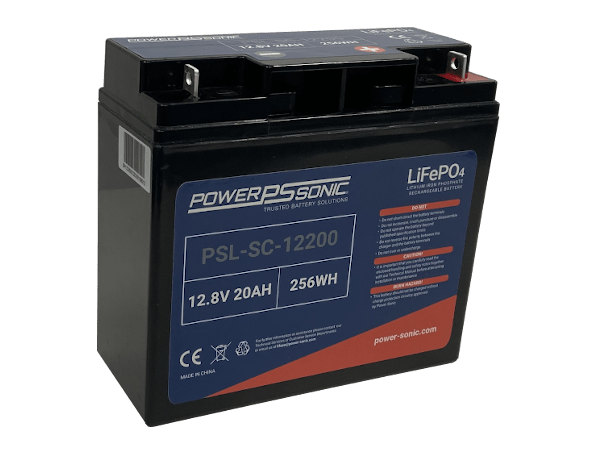

PSL-SC-12200

The PSL-SC-12200 is part of our deep cycle lithium series and parallel connection range which can be connected in a series or parallel configuration...

Capacity Ah :

20.0 AH

Voltage:

12.8V

View PSL-SC-12200

PSL-SC-122000-G8D

The PSL-SC-122000-G8D is part of our deep cycle lithium series and parallel connection range which can be connected in a series or parallel...

Capacity Ah :

200.0 AH

Voltage:

12.8V

View PSL-SC-122000-G8D

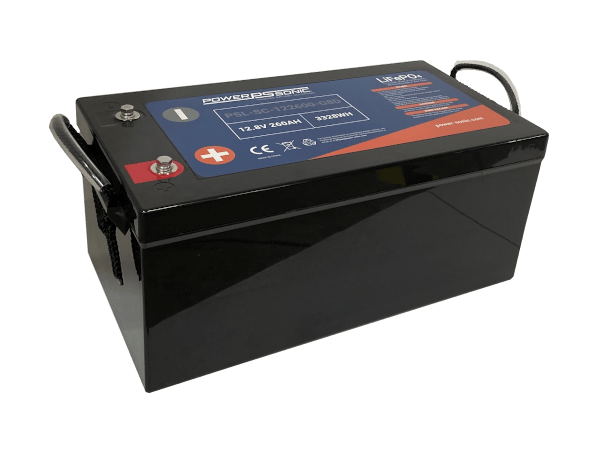

PSL-SC-122600-G8D

The PSL-SC-122600-G8D is part of our deep cycle lithium series and parallel connection range which can be connected in a series or parallel...

Capacity Ah :

260.0 AH

Voltage:

12.8V

View PSL-SC-122600-G8D

PSL-SC-123000-G8D

The PSL-SC-123000-G8D is part of our deep cycle lithium series and parallel connection range which can be connected in a series or parallel...

Capacity Ah :

300.0 AH

Voltage:

12.8V

View PSL-SC-123000-G8D

PSL-SC-12350-GU1

The PSL-SC-12350-GU1 is part of our deep cycle lithium series and parallel connection range which can be connected in a series or parallel...

Capacity Ah :

35.0 AH

Voltage:

12.8V

View PSL-SC-12350-GU1

PSL-SC-12500

The PSL-SC-12500 is part of our deep cycle lithium series and parallel connection range which can be connected in a series or parallel configuration...

Capacity Ah :

50.0 AH

Voltage:

12.8V

View PSL-SC-12500
1 2

LiFePO4 batteries are much safer than other lithium battery technologies. Using them reduces the risk of explosion or combustion due to high impact, over-charging or short circuit situations. Not only are they safer but they can be mounted in any direction and will never leak.

The PSL-SC series can be connected in a series or parallel configuration allowing for higher voltage or higher capacity battery systems. Take a look at our guide to connecting batteries in parallel and series for more information.

Lithium offers several performance benefits versus it's sealed lead acid (SLA) equivalent. A lithium battery's capacity is independent from the discharge rate and provides constant power throughout it's discharge. The degredation of a lithium battery at a high temperature is significantly reduced in comparison to SLA. Lithium has ten times the cycle life as SLA at room temperature. Even at an elevated temperature, lithium still has increased cycle life.

Lastly, Lithium charging follows a similar charging profile as SLA, Constant Current Constant Voltage (CC/CV). However, lithium can be charged faster, without the need for a maintenance float charge. Take a look at these blog posts for more information on the differences between lithium and lead acid batteries and how to charge lithium batteries.

Read more Read less
