Dual Level 2 Charging Station With Media Screen

EVAC-S SERIES FEATURES

  • Dual EV charging station with integrated 55-inch media screen
  • Share customized content applicable to your venue
  • Charge two electric cars at the same time from 3.5 kW to 22 kW
  • Dual Type 1 (SAE J1772) or Type 2 (Mennekes) charging protocols available
  • Offline and online versions with OCPP1.6 available
  • Android OS based media player
  • Start modes include plug-and-play and RFID
  • Available with different power and voltage configurations for global markets
  • Ideal for various retail environments, including auto dealerships, supermarkets, malls, big box stores and much more
Summary Image

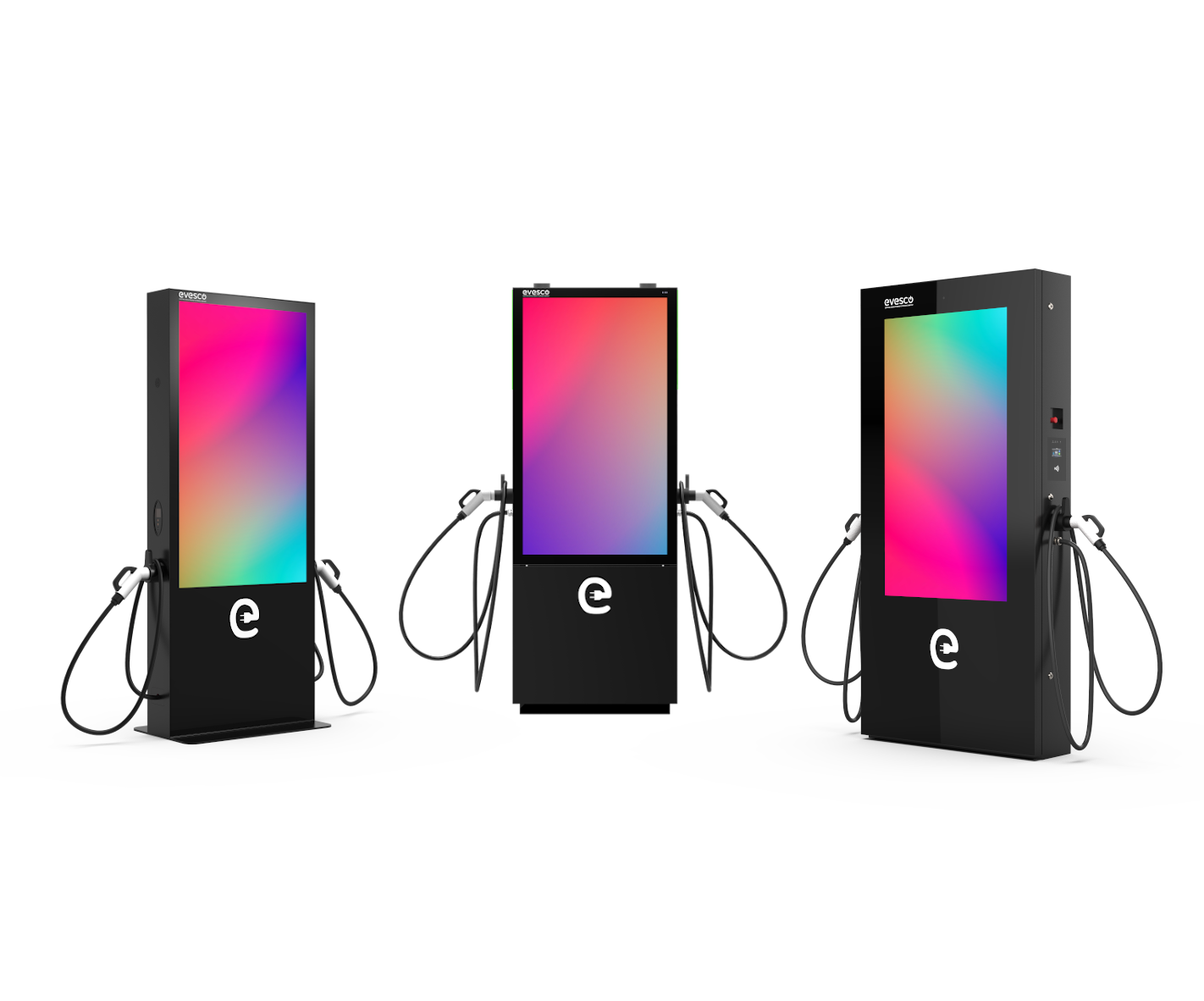

DUAL EV CHARGING STATION WITH MEDIA SCREEN

EVESCO's EVAC-S series of dual Level 2 EV chargers have been designed to attract more electric vehicle drivers to your location and engage them with customized content via a high-quality 55-inch media screen. With dual charging cables, the EVAC-S series can charge two EVs simultaneously with power output from 3.5 kW to 22 kW per charging cable (output power depends on the country of installation). Fully captivate potential customers with static content or videos to increase brand awareness, promote products, relay important messages or generate additional revenue from advertising; you have complete control over what is displayed and when.

EVESCO’s Level 2 dual-port charging stations provide AC power to the electric vehicles ‘onboard charger’, which uses advanced power control technology to convert that AC power into DC power to charge the vehicle battery. Level 2 charging stations are much faster than Level 1 chargers and come in various charging capacities. Charging for 60 minutes with a 7.6 kW charger delivers approx. 40 km (25 miles) of range, and a 22 kW charger approx. 120 km (75 miles) of range. Charge rates and speeds can differ depending on your electric vehicle type. These media screen charging stations are ideal for Level 2 EV charging in various retail environments, including auto dealerships, supermarkets, malls, big box stores and much more.

EVAC-S Series

EVAC-19S IP66 (NA)

The EVAC-S series of Level 2 dual charging stations have been designed to attract high-value electric vehicle drivers to your location. The EVAC-19S...

Specs:

Output Power: 19.2kW
Supply Input: 240 / 208VAC / 60Hz
Socket Type: Dual Type 1 (SAE J1772)
Installation: Outdoors (IP66 rated)

View EVAC-19S IP66 (NA)

EVAC-22S indoor (EU)

The EVAC-S series of Level 2 dual charging stations have been designed to attract high-value electric vehicle drivers to your location. The EVAC-22S...

Specs:

Output Power: 22kW
Supply Input: 400VAC (+/- 10%) / 50Hz
Socket Type: Dual Type 2 (Mennekes)
Installation: Indoors

View EVAC-22S indoor (EU)

EVAC-22S IP55 (EU)

The EVAC-S series of Level 2 dual charging stations have been designed to attract high-value electric vehicle drivers to your location. The EVAC-22S...

Specs:

Output Power: 22kW
Supply Input: 400VAC (+/-10%) / 50Hz
Socket Type: Dual Type 2 (Mennekes)
Installation: Outdoors (IP55 rated)

View EVAC-22S IP55 (EU)

EVAC-22S IP66 (EU)

The EVAC-S series of Level 2 dual charging stations have been designed to attract high-value electric vehicle drivers to your location. The EVAC-22S...

Specs:

Output Power: 22kW
Supply Input: 400VAC (+/-10%) / 50Hz
Socket Type: Dual Type 2 (Mennekes)
Installation: Outdoors (IP66 rated)

View EVAC-22S IP66 (EU)

EVAC-3S indoor (EU)

The EVAC-S series of Level 2 dual charging stations have been designed to attract high-value electric vehicle drivers to your location. The EVAC-3S...

Specs:

Output Power: 3.7kW
Supply Input: 230VAC / 50Hz
Socket Type: Dual Type 2 (Mennekes)
Installation: Indoors

View EVAC-3S indoor (EU)

EVAC-3S indoor (NA)

The EVAC-S series of Level 2 dual charging stations have been designed to attract high-value electric vehicle drivers to your location. The EVAC-3S...

Specs:

Output Power: 3.5kW
Supply Input: 208 / 240VAC / 60Hz
Socket Type: Dual Type 1 (SAE J1772)
Installation: Indoors

View EVAC-3S indoor (NA)

EVAC-9S indoor (NA)

The EVAC-S series of Level 2 dual charging stations have been designed to attract high-value electric vehicle drivers to your location. The EVAC-9S...

Specs:

Output Power: 9.6kW
Supply Input: 208 / 240VAC / 60Hz
Socket Type: Dual Type 1 (SAE J1772)
Installation: Indoors

View EVAC-9S indoor (NA)

EVAC-9S IP55 (NA)

The EVAC-S series of Level 2 dual charging stations have been designed to attract high-value electric vehicle drivers to your location. The EVAC-9S...

Specs:

Output Power: 9.6kW
Supply Input: 208 / 240VAC / 60Hz
Socket Type: Dual Type 1 (SAE J1772)
Installation: Outdoors (IP55 rated)

View EVAC-9S IP55 (NA)

EVAC-9S IP66 (NA)

The EVAC-S series of Level 2 dual charging stations have been designed to attract high-value electric vehicle drivers to your location. The EVAC-9S...

Specs:

Output Power: 9.6kW
Supply Input: 240 / 208VAC / 60Hz
Socket Type: Dual Type 1 (SAE J1772)
Installation: Outdoors (IP66 rated)

View EVAC-9S IP66 (NA)

EVESCO's media screen charging stations are at the forefront of commercial EV charging solutions and offer a unique way to generate additional revenue and engage with a targeted audience.

As demand for EV charging infrastructure grows to charge the world’s electric vehicles, reliable and intelligent charging solutions are critical. By combining EV charging stations with EVESCO’s smart energy storage system, we can provide a flexible and sustainable solution that can meet the demands of today's and tomorrow’s EV drivers and help businesses meet their sustainability goals.

To encourage EV adoption and investment in EV charging infrastructure, governments, and utility companies have created various incentive and funding programs that subsidize and promote the installation and deployment of EV charging stations. EVESCO can help guide you through these incentive programs to minimalize your costs.
