PSL-SC-12800-G27

PSL-SC Series

Where to buy
Download Technical Data Sheet

Features

Specifications

Terminal Options

  • 12.8V 80Ah Group 27 deep cycle lithium battery
  • Battery Management System (BMS) controls the parameters of the battery to provide optimum safety and battery life
  • Higher capacity or voltage capability through parallel or series connection
  • Super safe lithium iron phosphate (LiFePO4) chemistry
  • Compact design and only 40% of the weight of comparable lead acid batteries
  • Delivers twice the power of lead acid batteries, even at high discharge rates, while maintaining constant power
  • Faster charging and lower self-discharge
  • Up to 10 times longer cycle life than lead acid batteries

Model Number:

PSL-SC-12800-G27

Nominal voltage:

12.8V

Capacity @20HR (AH):

80.0 Ah

Weight:

10.1kg / 22.3lbs

Case:

ABS

Dimensions

Length:

12.1'' / 307mm

Width:

6.6'' / 168mm

Height:

8.7'' / 221mm

T11
Terminal Info
  • 12.8V 80Ah Group 27 deep cycle lithium battery
  • Battery Management System (BMS) controls the parameters of the battery to provide optimum safety and battery life
  • Higher capacity or voltage capability through parallel or series connection
  • Super safe lithium iron phosphate (LiFePO4) chemistry
  • Compact design and only 40% of the weight of comparable lead acid batteries
  • Delivers twice the power of lead acid batteries, even at high discharge rates, while maintaining constant power
  • Faster charging and lower self-discharge
  • Up to 10 times longer cycle life than lead acid batteries

Model Number:

PSL-SC-12800-G27

Nominal voltage:

12.8V

Capacity @20HR (AH):

80.0 Ah

Weight:

10.1kg / 22.3lbs

Case:

ABS

Dimensions

Length:

12.1'' / 307mm

Width:

6.6'' / 168mm

Height:

8.7'' / 221mm

T11
Terminal Info

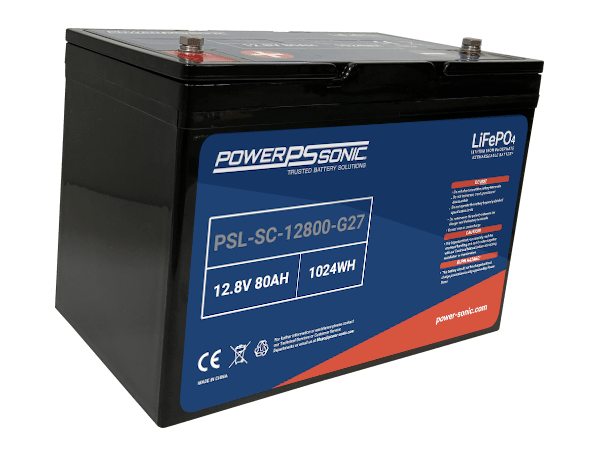

Product Image

Battery Management System features include cell function balancing, over-current protection, over-charge protection, over-discharge protection and over-temperature protection.

MODEL SUMMARY

The PSL-SC-12800-G27 is part of our deep cycle lithium series and parallel connection range which can be connected in a series or parallel configuration allowing for higher voltage or higher capacity battery systems. The 12.8V 80.0Ah deep cycling battery lasts longer, weighs less and charges quicker than the equivalent lead acid battery. This battery matches the dimensions of group size 27 and can be used as a drop-in replacement for equivalent lead acid batteries within the 27 group size.

At the heart of every PSL-SC deep cycling lithium battery is an intelligent battery management system that monitors and reacts to multiple voltage, current, and temperature events to maximize performance, battery life and safety. With its advanced BMS design, the PSL-SC-12800-G27 can be connected up to 4 batteries in series or up to 4 batteries in parallel providing a solution for higher voltage and higher capacity applications.

certificate certificate
