PSL-BTP-241000

Lithium Bluetooth Series

Where to buy
Download Technical Data Sheet

Features

Specifications

Terminal Options

  • 25.6V 100Ah Smart LiFePO4 Battery
  • Battery Management System (BMS) controls the parameters of the battery to provide optimum safety and performance
  • BMS enhanced design balances the battery cells and protects against overcharging and discharging
  • Bluetooth® communication capability for battery status monitoring through Power Sonic app
  • Up to 10 times more cycles than lead acid batteries
  • Faster charging and lower self-discharge
  • Compact and only 40% of the weight of comparable lead acid batteries
  • Delivers twice the power of lead acid batteries, even high discharge rate, while maintaining high energy capacity

Model Number:

PSL-BTP-241000

Nominal voltage:

25.6V

Capacity:

100.00 Ah

Weight:

24.8kg / 54.6lbs

Case:

UL94:V0 Flame retardant plastic

Dimensions

Length:

19.03'' / 483.5mm

Width:

6.69'' / 170mm

Height:

9.49'' / 241mm

Recommended Charger:

PSC-2410000-LIFE-EU

M8
  • 25.6V 100Ah Smart LiFePO4 Battery
  • Battery Management System (BMS) controls the parameters of the battery to provide optimum safety and performance
  • BMS enhanced design balances the battery cells and protects against overcharging and discharging
  • Bluetooth® communication capability for battery status monitoring through Power Sonic app
  • Up to 10 times more cycles than lead acid batteries
  • Faster charging and lower self-discharge
  • Compact and only 40% of the weight of comparable lead acid batteries
  • Delivers twice the power of lead acid batteries, even high discharge rate, while maintaining high energy capacity

Model Number:

PSL-BTP-241000

Nominal voltage:

25.6V

Capacity:

100.00 Ah

Weight:

24.8kg / 54.6lbs

Case:

UL94:V0 Flame retardant plastic

Dimensions

Length:

19.03'' / 483.5mm

Width:

6.69'' / 170mm

Height:

9.49'' / 241mm

Recommended Charger:

PSC-2410000-LIFE-EU

M8

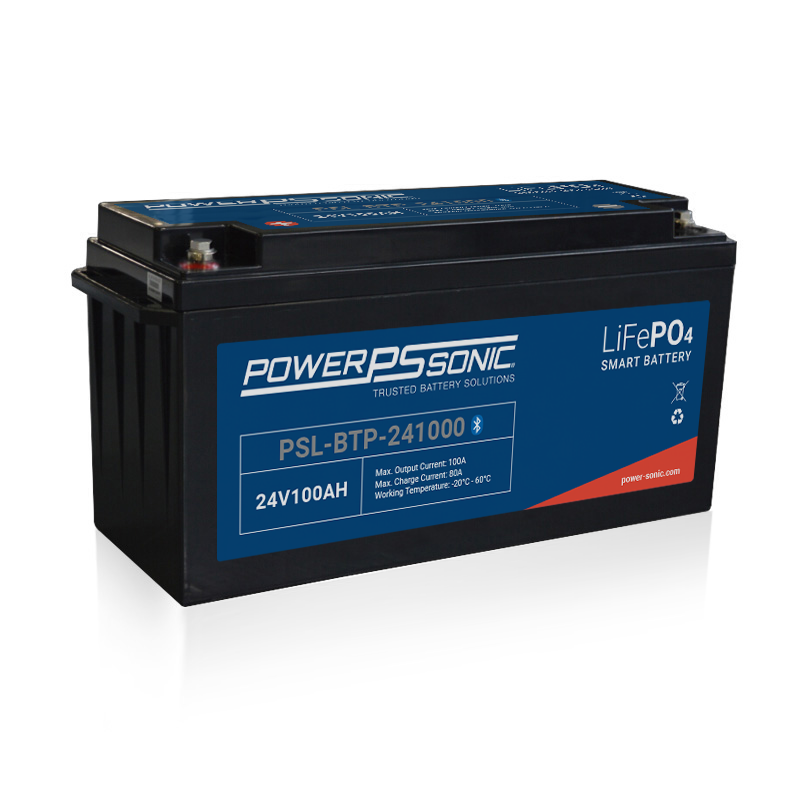

Product Image

Battery Management System (BMS) features include balancing function for cells, over-current protection, over-charge protection, over-discharge protection and over-temperature protection.

MODEL SUMMARY

The PSL-BTP-241000 is part of our Bluetooth lithium range of LiFePO4 batteries which combines proven lithium iron phosphate technology with an intelligent battery management system (BMS) and Bluetooth connectivity, delivering a battery that lasts longer and can be monitored with a smart phone and other smart devices.

The 25.6V 100Ah smart battery is the ideal solution for users who have batteries in hard to access locations or in critical applications where the battery needs to be regularly checked for peak performance.
