PSL-24200

PSL Series

Where to buy
Download Technical Data Sheet

Features

Specifications

Terminal Options

  • 25.6V 22Ah High performance LiFePO4 battery
  • Compact and only 40% of the weight of comparable lead acid battery
  • Up to 10 times longer cycle life
  • Delivers twice the power of lead acid batteries, even high discharge rate, while maintaining high energy capacity
  • Super safe chemistry reducing the risk of explosion or combustion due to high impact, overcharging or short circuit situation
  • Rugged impact resistant ABS case and cover flame retardant to UL94:V-0

Model Number:

PSL-24200

Nominal voltage:

25.6V

Capacity:

22.00 Ah

Weight:

5.9kg / 13.0lbs

Case:

UL94:V0 Flame retardant plastic

Dimensions

Length:

7.68'' / 195mm

Width:

5.12'' / 130mm

Height:

7.20'' / 183mm

M6
  • 25.6V 22Ah High performance LiFePO4 battery
  • Compact and only 40% of the weight of comparable lead acid battery
  • Up to 10 times longer cycle life
  • Delivers twice the power of lead acid batteries, even high discharge rate, while maintaining high energy capacity
  • Super safe chemistry reducing the risk of explosion or combustion due to high impact, overcharging or short circuit situation
  • Rugged impact resistant ABS case and cover flame retardant to UL94:V-0

Model Number:

PSL-24200

Nominal voltage:

25.6V

Capacity:

22.00 Ah

Weight:

5.9kg / 13.0lbs

Case:

UL94:V0 Flame retardant plastic

Dimensions

Length:

7.68'' / 195mm

Width:

5.12'' / 130mm

Height:

7.20'' / 183mm

M6

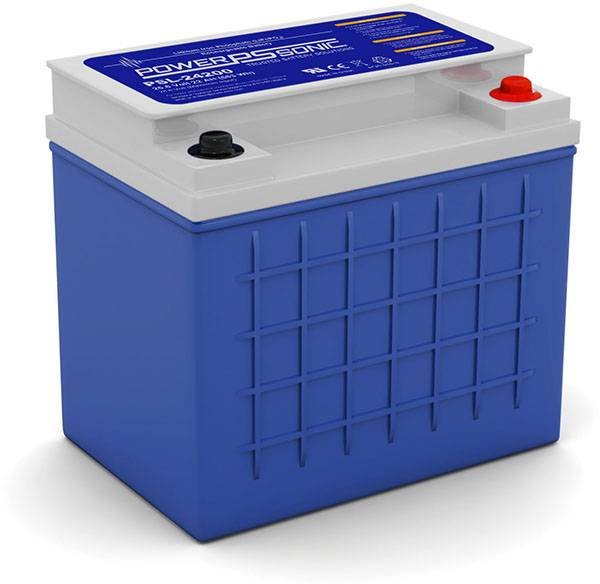

Product Image

E2 – With simple PCM (No communications port)

MODEL SUMMARY

The PSL-24200 is part of our PSL range of Lithium Iron Phosphate (LiFePO4) batteries which have been engineered to offer a lighter, longer life and higher power solution compared to standard lead acid batteries. The 25.6V 22.00Ah LiFePO4 battery offers up to 10 times more cycles at 40% of the weight of the equivalent lead acid battery. Applications include renewable energy, telecoms, medical and electric vehicles.

Power Sonic’s cutting-edge manufacturing and process control combined with meticulous quality assurance procedures guarantee consistent and dependable performance.
