PS-1230VdS

PS Series

Where to buy
Download Technical Data Sheet

Features

Specifications

Terminal Options

  • VdS and NCP approved VRLA battery
  • Absorbent Glass Mat (AGM) technology for superior performance
  • Power and volume ratio yielding unrivalled energy density
  • Valve regulated, maintenance free spill proof construction
  • Rugged impact resistant ABS case and cover
  • 5 year design life
  • Approved for transport by air. D.O.T., I.A.T.A., F.A.A. and C.A.B certified

Model Number:

PS-1230VdS

Nominal voltage:

12V

Capacity @20HR (AH):

3.40 Ah

Capacity @10HR (AH):

3.20 Ah

Weight:

1.4kg / 3.0lbs

Case:

ABS UL94:HB (flame retardant UL94:V0 version also available)

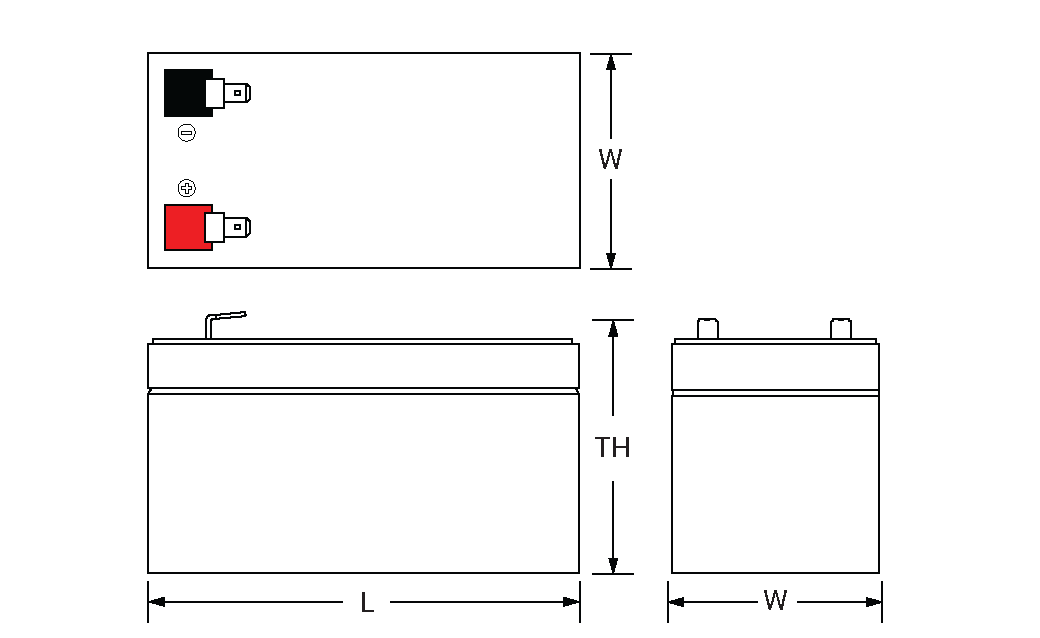

Dimensions

Length:

5.28'' / 134mm

Width:

2.64'' / 67mm

Height:

2.38'' / 60.5mm

Recommended Charger:

PSC-12500ACX

F1
Terminal Info
  • VdS and NCP approved VRLA battery
  • Absorbent Glass Mat (AGM) technology for superior performance
  • Power and volume ratio yielding unrivalled energy density
  • Valve regulated, maintenance free spill proof construction
  • Rugged impact resistant ABS case and cover
  • 5 year design life
  • Approved for transport by air. D.O.T., I.A.T.A., F.A.A. and C.A.B certified

Model Number:

PS-1230VdS

Nominal voltage:

12V

Capacity @20HR (AH):

3.40 Ah

Capacity @10HR (AH):

3.20 Ah

Weight:

1.4kg / 3.0lbs

Case:

ABS UL94:HB (flame retardant UL94:V0 version also available)

Dimensions

Length:

5.28'' / 134mm

Width:

2.64'' / 67mm

Height:

2.38'' / 60.5mm

Recommended Charger:

PSC-12500ACX

F1
Terminal Info

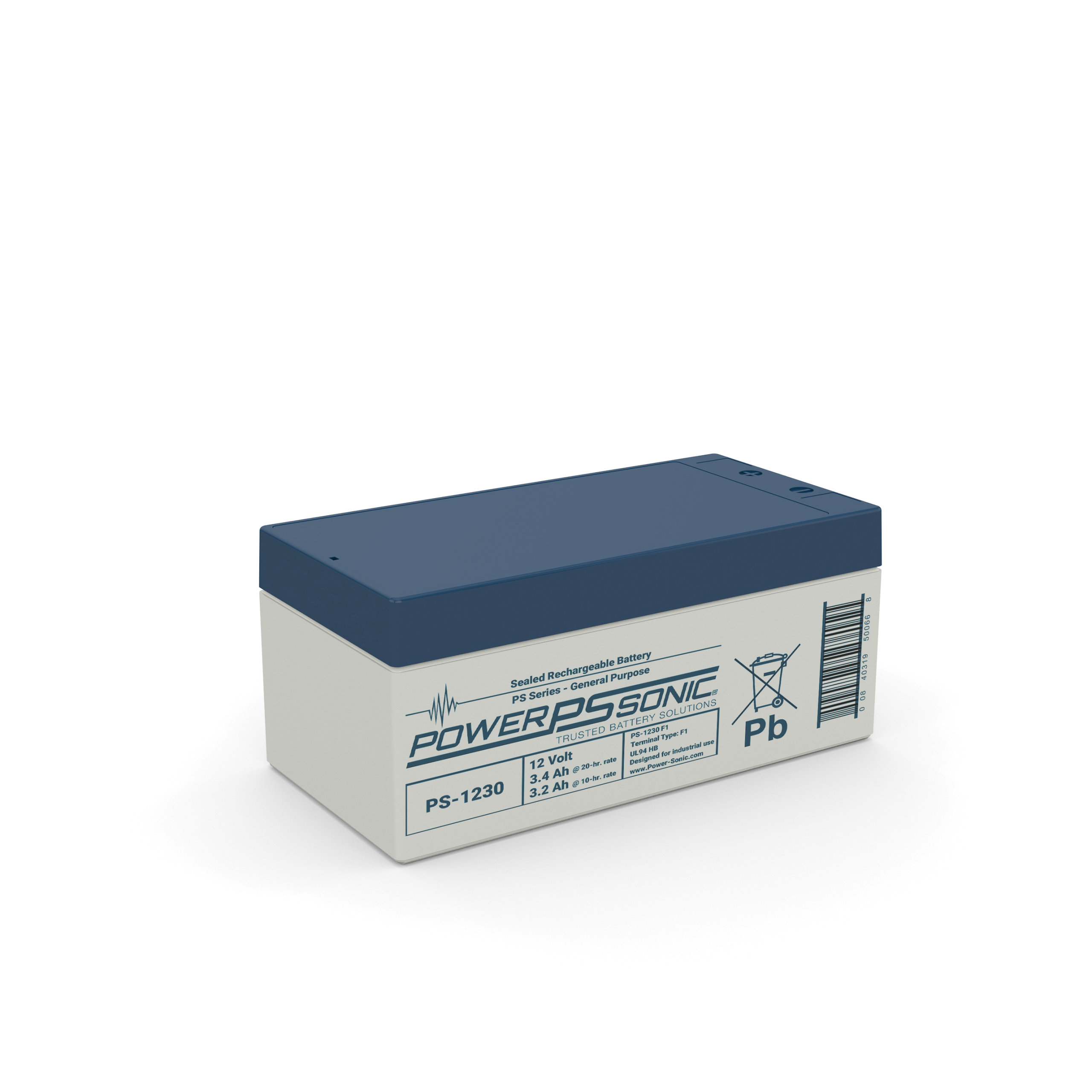

Product Image

This model is for the VdS version of this battery. The VdS certification is specific to our European market and is only stocked there and not in the USA. Contact Power Sonic customer service if you would like to special order this battery outside of Europe.

MODEL SUMMARY

The PS-1230VdS is part of our VdS approved PS range of sealed lead acid batteries (often referred to as VRLA) which have been specifically designed for general purpose and standby applications. The 12V 3.40Ah battery offers excellent performance in a wide range of applications including security and fire protection systems, medical devices, emergency lighting and UPS systems.

All Power Sonic batteries are subject to stringent quality controls through every step of the manufacturing process ensuring both consistency and reliability.
