EVDC-180NA

EVDC Series

Contact us
Download Technical Data Sheet

Features

Specifications

  • 180kW DC ultra-fast electric vehicle charger with 300 - 1000V output
  • Dual charging ports with intelligent load balancing for simultaneous charging of two electric vehicles
  • Open Charge Point Protocol (OCPP) 1.6 and ISO 15118 (Plug&Charge) compliant
  • Driver friendly with a 10 inch LCD touchscreen and simple to use interface
  • Start modes include plug-n-play, RFID, OCPP, and optional POS
  • Ethernet, 4G and Wi-Fi connections available
  • IP54 rated enclosure, ideal for a wide range of locations and conditions
  • 60Hz, 480VAC supply input (three-phase)

Model Number:

EVDC-180NA

Output Power:

180kW

Output Voltage:

300 -1000V

Output Current:

300A (0 - 300A variable range)

Supply Input:

480VAC three-phase / 60Hz

Input Current:

221A (480VAC)

Socket Type:

Dual port CHAdeMO or NACS + CCS 1 or dual CCS 1

Network Connections:

LAN, 4G, Wi-Fi

Communication:

OCPP1.6

Start Modes:

Plug-n-play, RFID, OCPP and optional POS

Display:

10 inch LCD touchscreen

Dimensions

Width:

35.4'' / 900mm

Depth:

22.4'' / 570mm

Height:

63.0'' / 1600mm

  • 180kW DC ultra-fast electric vehicle charger with 300 - 1000V output
  • Dual charging ports with intelligent load balancing for simultaneous charging of two electric vehicles
  • Open Charge Point Protocol (OCPP) 1.6 and ISO 15118 (Plug&Charge) compliant
  • Driver friendly with a 10 inch LCD touchscreen and simple to use interface
  • Start modes include plug-n-play, RFID, OCPP, and optional POS
  • Ethernet, 4G and Wi-Fi connections available
  • IP54 rated enclosure, ideal for a wide range of locations and conditions
  • 60Hz, 480VAC supply input (three-phase)

Model Number:

EVDC-180NA

Output Power:

180kW

Output Voltage:

300 -1000V

Output Current:

300A (0 - 300A variable range)

Supply Input:

480VAC three-phase / 60Hz

Input Current:

221A (480VAC)

Socket Type:

Dual port CHAdeMO or NACS + CCS 1 or dual CCS 1

Network Connections:

LAN, 4G, Wi-Fi

Communication:

OCPP1.6

Start Modes:

Plug-n-play, RFID, OCPP and optional POS

Display:

10 inch LCD touchscreen

Dimensions

Width:

35.4'' / 900mm

Depth:

22.4'' / 570mm

Height:

63.0'' / 1600mm

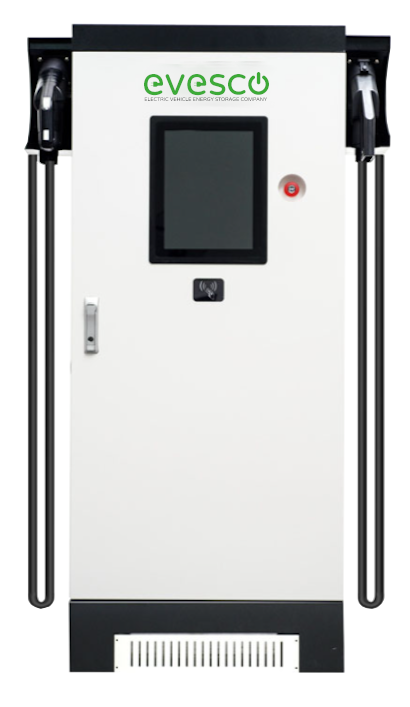

Product Image

MODEL SUMMARY

The EVDC-180NA is a 180kW DC fast charger that utilizes a 480VAC, 60Hz three-phase input converting AC to DC within the charger itself, resulting in faster power delivery to the electric vehicle battery. DC fast chargers are often referred to as level three charging stations and are currently the fastest charging option available for EVs. EVESCO’s 180kW DC fast charging station has dual ports for either CHAdeMO or NACS and CCS 1 charging cables or dual CCS 1 charging cables; each option can split power to charge two electric vehicles simultaneously. With its IP54-rated enclosure, it is well-suited for various installation locations.

The EVDC-180NA is supported through OCPP 1.6, enabling seamless communication and authentication between the charger, the electric vehicle, and various software systems allowing for customer billing, fleet management, and charging station monitoring. A 10-inch LCD touchscreen display and RFID reader make a user-friendly charging experience. Additional options include POS support for credit cards giving added flexibility on usage. EVESCO's EVDC series of DC fast charging stations have a future-proof design with a 1000 V max output and full compliance with ISO15118 Plug&Charge standard.
