EVDC-120S-NA

EVDC-S Series

Contact us
Download Technical Data Sheet

Features

Specifications

  • 120kW EV fast charger with integrated 55 inch media screen
  • Share customized content applicable to your venue or to generate additional revenue
  • Dual charging ports with intelligent load balancing for simultaneous charging of two electric vehicles
  • Future-proof design with 1000V max output
  • Open Charge Point Protocol (OCPP) 1.6 and ISO 15118 (Plug&Charge) compliant
  • Start modes include plug-n-play, RFID, OCPP, and optional POS
  • Ethernet, 4G and Wi-Fi connections available
  • 60Hz, 480VAC supply input (three-phase)

Model Number:

EVDC-120S-NA

Output Power:

120kW (can split power to charge two EVs simultaneously)

Output Voltage:

300 -1000V

Supply Input:

480VAC three-phase / 60Hz

Input Current:

147A (480VAC)

Socket Type:

Dual port CHAdeMO or NACS + CCS 1 or dual CCS 1

Network Connections:

LAN, 4G, Wi-Fi

Communication:

OCPP1.6

Start Modes:

Plug-n-play, RFID, OCPP and optional POS

Media Screen:

55 inch (1920 x 1080 resolution)

Dimensions

Width:

39.4'' / 1000mm

Depth:

27.6'' / 702mm

Height:

86.6'' / 2200mm

  • 120kW EV fast charger with integrated 55 inch media screen
  • Share customized content applicable to your venue or to generate additional revenue
  • Dual charging ports with intelligent load balancing for simultaneous charging of two electric vehicles
  • Future-proof design with 1000V max output
  • Open Charge Point Protocol (OCPP) 1.6 and ISO 15118 (Plug&Charge) compliant
  • Start modes include plug-n-play, RFID, OCPP, and optional POS
  • Ethernet, 4G and Wi-Fi connections available
  • 60Hz, 480VAC supply input (three-phase)

Model Number:

EVDC-120S-NA

Output Power:

120kW (can split power to charge two EVs simultaneously)

Output Voltage:

300 -1000V

Supply Input:

480VAC three-phase / 60Hz

Input Current:

147A (480VAC)

Socket Type:

Dual port CHAdeMO or NACS + CCS 1 or dual CCS 1

Network Connections:

LAN, 4G, Wi-Fi

Communication:

OCPP1.6

Start Modes:

Plug-n-play, RFID, OCPP and optional POS

Media Screen:

55 inch (1920 x 1080 resolution)

Dimensions

Width:

39.4'' / 1000mm

Depth:

27.6'' / 702mm

Height:

86.6'' / 2200mm

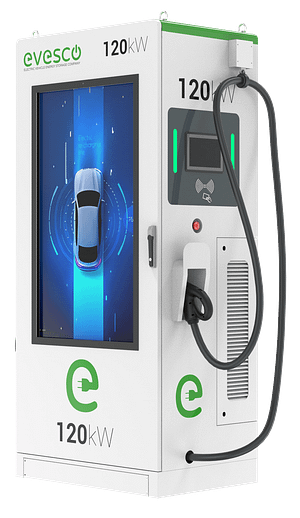

Product Image

MODEL SUMMARY

The EVDC-S series of fast EV chargers have been designed to attract high-value electric vehicle drivers to your business. The EVDC-120S-NA is a 120kW EV fast-charging station with an integrated 55-inch media screen. You can use the media screen to engage with customers by sharing customized content in static or video formats; this can increase brand awareness, promote products, relay important messages or generate additional revenue through advertising. These fast EV chargers are perfect in high traffic or footfall locations.

The 120kW fast EV charger utilizes a 480VAC, 60Hz three-phase input converting AC to DC within the charger resulting in faster delivery of power directly to the electric vehicle battery. DC fast chargers currently provide the quickest charging option for electric vehicles. The EVDC-120S-NA comes complete with dual charging cables with CHAdeMO or NACS and CCS 1 EV connectors capable of splitting power to charge two electric cars simultaneously. All EVDC-S fast chargers are supported through OCPP 1.6, enabling seamless communication and authentication between the charger, the electric vehicle, and various software systems allowing for customer billing, fleet management, and charging station monitoring. Additional options include POS support for credit cards giving added flexibility on usage.
