EVDC-360X NA

EVDC Series

Contact us
Download Technical Data Sheet

Features

Specifications

  • Twin 180kW DC ultra-fast electric vehicle charger with 300 - 1000V output
  • True simultaneous charging - charge two cars at the same time with twin 180 kW CCS1 charging cables
  • Smaller footprint and costs less than two separate 180 kW charging stations
  • Open Charge Point Protocol (OCPP) 1.6 and ISO 15118 (Plug&Charge) compliant
  • Start modes include plug-n-play, RFID, OCPP, and optional POS
  • Ethernet, 4G and Wi-Fi connections available
  • IP54 rated enclosure, ideal for a wide range of locations and conditions
  • 60Hz, 480VAC supply input (three-phase)

Model Number:

EVDC-360X NA

Output Power:

180kW + 180kW

Output Voltage:

300 -1000V

Supply Input:

480VAC three-phase / 60Hz

Socket Type:

CCS1 + CCS 1

Network Connections:

LAN, 4G, Wi-Fi

Communication:

OCPP1.6

Start Modes:

Plug-n-play, RFID, OCPP and optional POS

Display:

10 inch LCD touchscreen

Dimensions

Width:

37.4'' / 950mm

Depth:

30.7'' / 780mm

Height:

89.8'' / 2280mm

  • Twin 180kW DC ultra-fast electric vehicle charger with 300 - 1000V output
  • True simultaneous charging - charge two cars at the same time with twin 180 kW CCS1 charging cables
  • Smaller footprint and costs less than two separate 180 kW charging stations
  • Open Charge Point Protocol (OCPP) 1.6 and ISO 15118 (Plug&Charge) compliant
  • Start modes include plug-n-play, RFID, OCPP, and optional POS
  • Ethernet, 4G and Wi-Fi connections available
  • IP54 rated enclosure, ideal for a wide range of locations and conditions
  • 60Hz, 480VAC supply input (three-phase)

Model Number:

EVDC-360X NA

Output Power:

180kW + 180kW

Output Voltage:

300 -1000V

Supply Input:

480VAC three-phase / 60Hz

Socket Type:

CCS1 + CCS 1

Network Connections:

LAN, 4G, Wi-Fi

Communication:

OCPP1.6

Start Modes:

Plug-n-play, RFID, OCPP and optional POS

Display:

10 inch LCD touchscreen

Dimensions

Width:

37.4'' / 950mm

Depth:

30.7'' / 780mm

Height:

89.8'' / 2280mm

Product Image

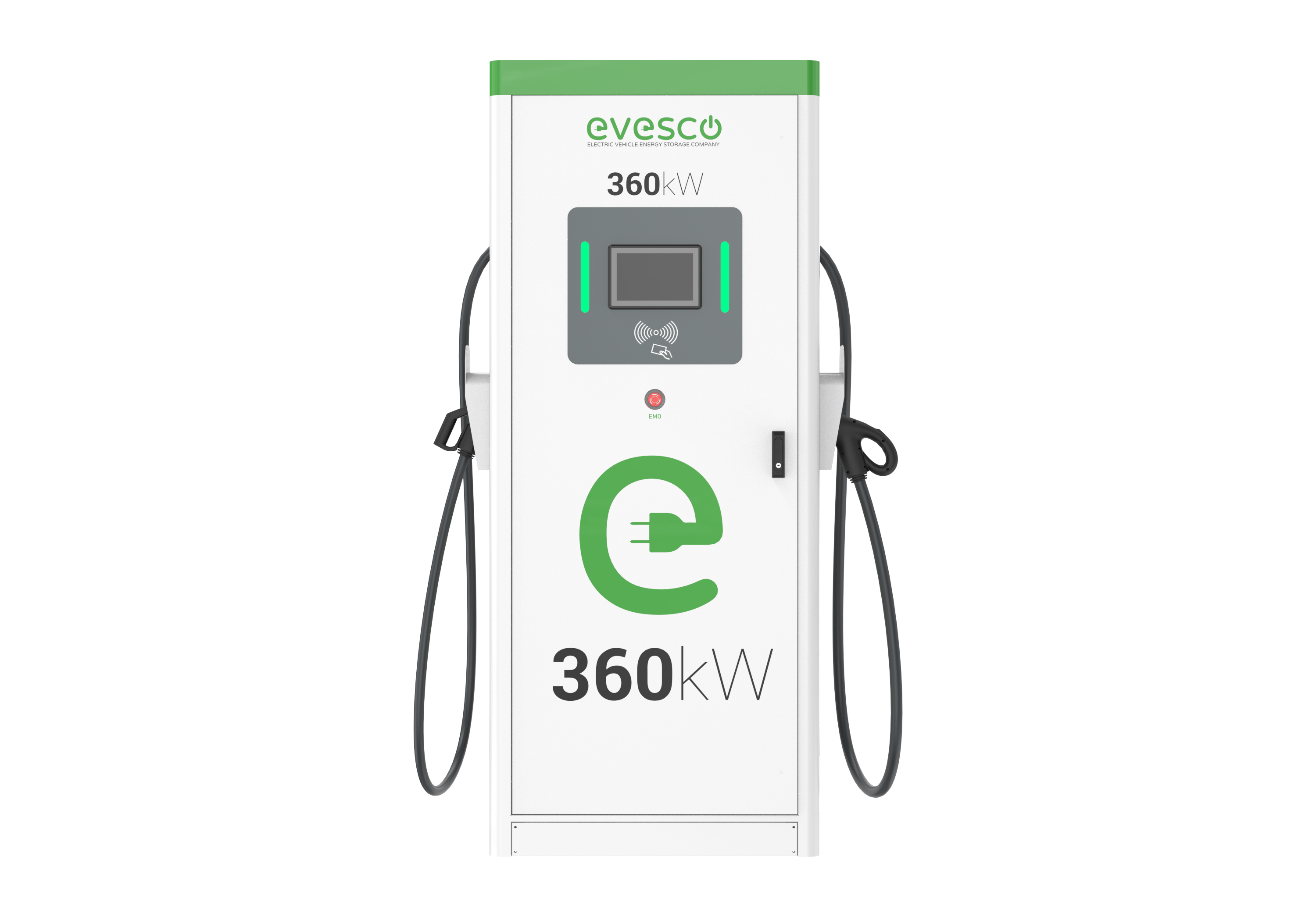

The EVDC-360X NA is a twin 180 kW DC charging station delivering two separate CCS 1 charging cables with up to 180 kW output.

MODEL SUMMARY

The EVDC-360X NA is a twin 180kW DC fast charger that utilizes a 480VAC, 60Hz three-phase input converting AC to DC within the charger itself, resulting in faster power delivery to the electric vehicle battery. DC fast chargers are often referred to as level three chargers and are currently the fastest charging option available for EVs. EVESCO’s twin 180kW DC fast charging station is two high-powered EV chargers in one with two 180 kW CCS 1 charging cables, both capable of delivering up to 180 kW output power, whether one or two electric vehicles are charging. With its IP54-rated enclosure, it is well-suited for various installation locations.

The EVDC-360X NA is supported through OCPP 1.6, enabling seamless communication and authentication between the charger, the electric vehicle, and various software systems allowing for customer billing, fleet management, and charging station monitoring. A 10-inch LCD touchscreen display and RFID reader make a user-friendly charging experience. Additional options include POS support for credit cards giving added flexibility on usage. EVESCO's EVDC series of DC fast charging stations have a future-proof design with a 1000 V max output and full compliance with ISO15118 Plug&Charge standard.
