EVDC-120EU

EVDC Series

Contact us
Download Technical Data Sheet

Features

Specifications

  • UL compliant 120kW DC fast electric vehicle charger with 300 - 1000V output
  • Dual charging ports with intelligent load balancing for simultaneous charging of two electric vehicles
  • Open Charge Point Protocol (OCPP) 1.6 and ISO 15118 (Plug&Charge) compliant
  • Driver friendly with a 10 inch LCD touchscreen and simple to use interface
  • Start modes include plug-n-play, RFID, OCPP, and optional POS
  • Ethernet, 4G and Wi-Fi connections available
  • IP54 rated enclosure, ideal for a wide range of locations and conditions
  • 50Hz, 400VAC (+/- 10%) supply input (three-phase)

Model Number:

EVDC-120EU

Output Power:

120kW (can split power to charge two EVs simultaneously)

Output Voltage:

300 -1000V

Output Current:

300A (0 - 300A variable range)

Supply Input:

400VAC (+/- 10%) three-phase / 50Hz

Input Current:

177A (400VAC)

Socket Type:

Dual port CHAdeMO + CCS 2 or dual CCS 2

Network Connections:

LAN, 4G, Wi-Fi

Communication:

OCPP1.6

Start Modes:

Plug-n-play, RFID, OCPP and optional POS

Display:

10 inch LCD touchscreen

Dimensions

Width:

37.4'' / 950mm

Depth:

19.3'' / 490mm

Height:

65.0'' / 1650mm

  • UL compliant 120kW DC fast electric vehicle charger with 300 - 1000V output
  • Dual charging ports with intelligent load balancing for simultaneous charging of two electric vehicles
  • Open Charge Point Protocol (OCPP) 1.6 and ISO 15118 (Plug&Charge) compliant
  • Driver friendly with a 10 inch LCD touchscreen and simple to use interface
  • Start modes include plug-n-play, RFID, OCPP, and optional POS
  • Ethernet, 4G and Wi-Fi connections available
  • IP54 rated enclosure, ideal for a wide range of locations and conditions
  • 50Hz, 400VAC (+/- 10%) supply input (three-phase)

Model Number:

EVDC-120EU

Output Power:

120kW (can split power to charge two EVs simultaneously)

Output Voltage:

300 -1000V

Output Current:

300A (0 - 300A variable range)

Supply Input:

400VAC (+/- 10%) three-phase / 50Hz

Input Current:

177A (400VAC)

Socket Type:

Dual port CHAdeMO + CCS 2 or dual CCS 2

Network Connections:

LAN, 4G, Wi-Fi

Communication:

OCPP1.6

Start Modes:

Plug-n-play, RFID, OCPP and optional POS

Display:

10 inch LCD touchscreen

Dimensions

Width:

37.4'' / 950mm

Depth:

19.3'' / 490mm

Height:

65.0'' / 1650mm

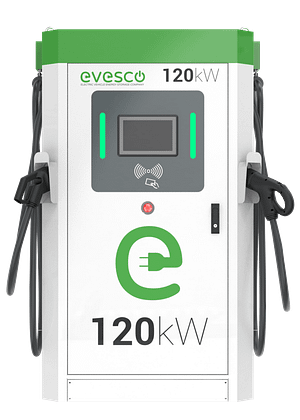

Product Image

This is the 2nd generation version of the EVDC-120EU which offers an improved future-proof design with a max output of 1000 V, a more intuitive user interface, a smaller footprint, and ISO15118 (Plug&Charge) compliance.

MODEL SUMMARY

The 2nd generation EVDC-120EU is a 120kW DC fast charger that utilizes a 400VAC (+/- 10%), 50Hz three-phase input converting AC to DC within the charger itself, resulting in faster power delivery to the electric vehicle battery. DC fast chargers are often referred to as level 3 charging stations and are currently the fastest charging option available for EVs. EVESCO’s 120kW DC fast charging station is UL compliant and has dual ports for either CHAdeMO and CCS 2 charging cables or dual CCS 2 charging cables; both options can split power to charge two electric vehicles simultaneously. With its IP54-rated enclosure, it is well-suited for various installation locations.

The EVDC-120EU is supported through OCPP 1.6, enabling seamless communication and authentication between the charger, the electric vehicle, and various software systems allowing for customer billing, fleet management, and charging station monitoring. A 10-inch LCD touchscreen display and RFID reader make a user-friendly charging experience. Additional options include POS support for credit cards giving added flexibility on usage. EVESCO's EVDC series of DC fast charging stations have a future-proof design with a 1000 V max output and full compliance with ISO15118 Plug&Charge standard.
