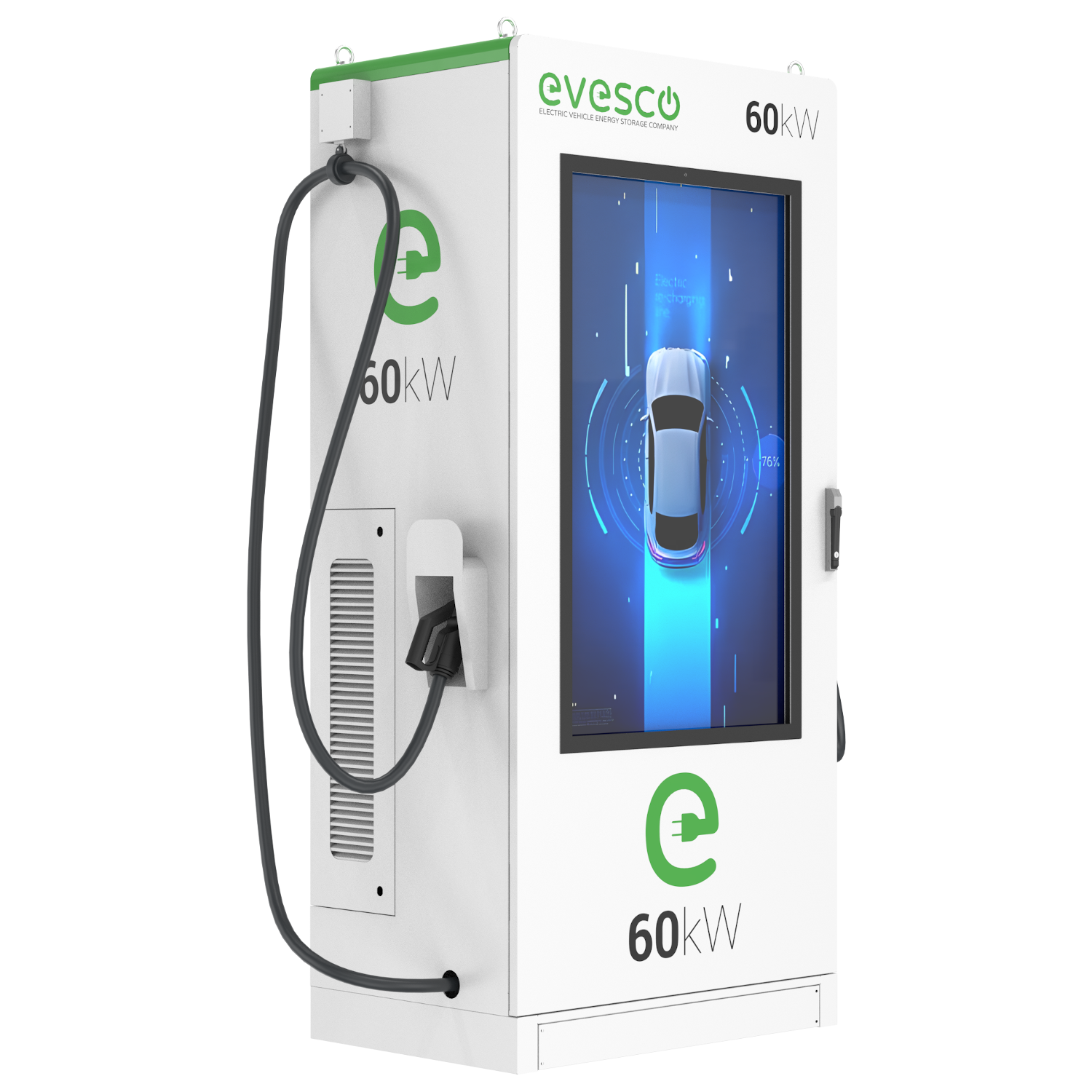

EVDC-CORE-60-MEDIA (EU)

Turn every charging session into a revenue opportunity. The EVDC-CORE-60-MEDIA (EU) combines reliable DC fast charging up to 60 kW with an integrated 55” media display, enabling operators to monetize driver dwell time through targeted advertising and branded content. Designed for high-visibility, high-traffic locations, the EVDC-CORE-MEDIA Series supports dual-vehicle charging with intelligent power sharing, maximizing site utilization while generating new recurring revenue streams per charger. A wide 300 - 1000 VDC output range ensures compatibility with current and next-generation EVs. With flexible authentication, OCPP connectivity, and 400 (+/-10%) VAC input, the EVDC-CORE-60-MEDIA (EU) delivers a high-impact, future-ready charging solution that drives both utilization and profitability.

Request A Quote

Product Group Information

The EVDC-CORE-MEDIA series builds on the proven EVDC-CORE charging platform by adding a large-format, high-visibility 55-inch media screen designed for public-facing environments. Delivering 60 kW to 210 kW of DC fast charging, the system combines reliable charging performance with dynamic content display to support branding, wayfinding, and customer engagement. Intelligent dual-vehicle charging with power sharing maximizes site throughput, while a wide 300–1000 VDC output range ensures compatibility with today’s and next-generation EVs. EVDC-CORE-MEDIA chargers are commonly deployed at retail locations, forecourts, parking facilities, and destination sites where charging infrastructure doubles as a high-impact communication and revenue-generating platform.

Warranty

3 years as standard

Operating Temperature Range:

-4°F (-20°C) to 122°F (50°C)

Group Information:

Stand-alone DC fast chargers with integrated media display for public-facing sites where visibility and engagement matter.

Product Description:

Expand

Frequency (Hz)	50/60
Input Current @ Rated Vac (A)	88.0
Electrical Protection	Over / under voltage protection, overload protection, short circuit protection, over / under temperature protection, surge protection, communication failure
Intelligent Power Sharing	1 vehicle: up to 60 kW, 2 vehicles: 30 kW + 30 kW
Output Power (kW)	60
Output Voltage Range (Vdc)	300 - 1000
Input Voltage +/- 10% (Vac)	400
Efficiency	≥96% (50%-100% load)
Power Factor	≥0.99
THDI	≤5%

Product Image

Length in (mm)	27.6 (702.0)
Width in (mm)	39.4 (1000.0)
Height in (mm)	86.6 (2200.0)

IP Rating	IP54
Communication Protocol	OCPP 1.6
Authentication Modes	Auto charge, RFID, Customer backend via OCPP, Payment terminal
Emergency Stop Button	Yes
IK Rating	IK10
Media Screen	55 inch (1920 x 1080 resolution)
Display	10-inch LCD touchscreen
Operating Humidity	5% - 95% without condensation
Network Connectivity	Ethernet, 4G, Wi-Fi
POS (Credit Card Reader)	Optional

Auto Dealerships

Destination Charging

Fuel Stations

Hotels & Hospitality

Public Charging Networks

Retail

Available in US:	y
Available in EMEA:	y
Cooling Method:	Forced air cooling
Connector Type:	CCS2 + CCS2
Output Max. Current (A):	125 / 125
Supply Input:	3P + PE + N
Charging Cable Length (Ft):	16.4
Charging Cable Length (M):	5.0
Available in US:	y
Available in EMEA:	y
Cooling Method:	Forced air cooling
Connector Type:	CCS2 + CHAdeMO
Output Max. Current (A):	CCS2: 125 / CHA: 125
Supply Input:	3P + PE + N
Charging Cable Length (Ft):	16.4
Charging Cable Length (M):	5.0

Features and Documents

Future-Proof VDC Output Range

Wide VDC output range supports different EV battery architectures, ensuring compatibility with current and next-generation electric vehicles

Integrated 55” Media Display

A large media screen delivers customized content and targeted advertising, turning driver dwell time into brand engagement with high-value audiences

Multiple Authentication Options

Supports RFID, OCPP, QR code, and optional POS, providing secure and flexible access methods to suit different operational needs

OCPP-Compliant Connectivity

Open Charge Point Protocol (OCPP) compatibility enables integration with third-party charger management platforms and networks

Simultaneous Vehicle Charging

Intelligent power sharing enables two vehicles to charge simultaneously without delays or reduced performance, maximizing throughput

Turn Charging Into Revenue

Monetize charging sessions with digital ads sold directly or via media partners, creating recurring revenue for each charger
