EVAC-19I (NA)

The EVAC-19I (NA) is part of our Intelligent AC Chargers range.
Request A Quote
Product Group Information
The EVAC-I series is designed for dependable Level 2 EV charging across workplaces, multi-unit residential buildings, fleet depots, and light commercial sites. Supporting common AC power configurations, EVAC chargers deliver consistent daily charging performance with a compact footprint and flexible installation options. With network-ready connectivity, multiple authentication methods, and durable designs suited for indoor or outdoor use, the EVAC-I series provides a practical, cost-effective solution for locations where overnight or dwell-time charging is the preferred approach.
Warranty
2 years as standard
Operating Temperature Range:
-31°F (-35°C) to 131°F (55°C)
Group Information:

Reliable AC charging solutions for residential, commercial, and fleet environments.

Product Description:

The EVAC-19I (NA) is part of our Intelligent AC Chargers range.

Expand
Output Power (kW) 19.2
Input Voltage +/- 10% (Vac) 208 / 240
Frequency (Hz) 50/60

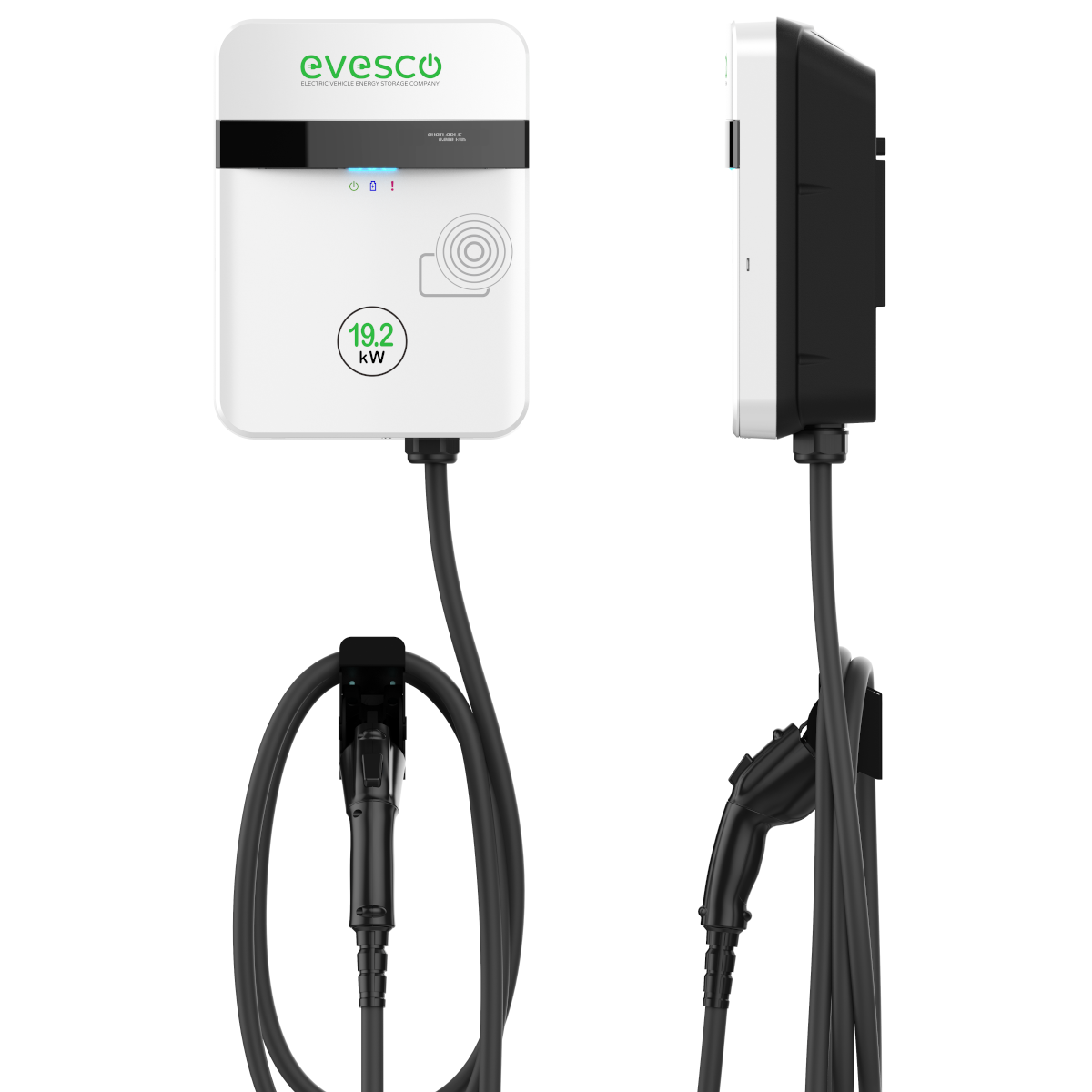

Product Image
EVAC-19I (NA)
Length in (mm) 10.6 (269.0)
Width in (mm) 14.1 (358.0)
Height in (mm) 5.5 (140.0)
IP Rating IP55
Communication Protocol OCPP1.6
Authentication Modes Auto charge, RFID, Customer backend via OCPP
Display Dot-matrix (2 lines)
Network Connectivity Ethernet, 4G, Wi-Fi
Mounting Options Wall mounted, pedestal (optional)
Auto Dealerships
Destination Charging
Fleet Operations
Hotels & Hospitality
Workplace Charging
Available in US: y
Available in EMEA: y
Connector Type: Type 1 SAE J1772
Output Max. Current (A): 80
Supply Input: Split phase
Charging Cable Length (Ft): 25.0
Charging Cable Length (M): 7.6
Wiring Type: Hardwired

Features and Documents

Dual-Port Flexibility

Supports charging two vehicles with intelligent output sharing, improving charger utilization and site efficiency

High-Capacity Charging

Designed for high-throughput charging with 120 kW output to support larger batteries and reduce vehicle turnaround times

Low-Power AC Charging

Provides Level 2 charging from standard AC power, ideal for overnight, destination, and long-dwell vehicle charging scenarios

Single-Phase Flexibility

Compatible with 208/240 VAC single-phase service, enabling simple installation across common residential and light-commercial electrical infrastructure

UL-Certified Safety

Engineered to comply with UL safety requirements, helping support permitting, reduce risk, and meet customer and insurer expectations

Wide DC Output Voltage Range

Supports DC output 200 - 920 VDC, ensuring compatibility with current and next-generation high-voltage EVs
