Product Group Information

The EVPS series is designed for multi-bay depots and high-utilization sites that require centralized power with intelligent distribution across multiple charging points. By separating the power bank from the dispensers, EVPS enables efficient shared power delivery to support simultaneous vehicle charging while maximizing site utilization. Configurations scale from 360 kW up to 1280 kW, supporting up to 6 connectors on mid-power systems or up to 16 connectors on higher-capacity deployments. Intelligent load balancing dynamically allocates power where it’s needed, including high-current output for heavy-duty vehicles. EVPS systems are commonly deployed at fleet depots, transit facilities, and logistics hubs where throughput, flexibility, and efficient use of installed power are critical.

Warranty

3 years as standard

Operating Temperature Range:

'-13°F (-25°C) to 122°F (50°C)

Group Information:

Distributed DC fast charging systems delivering shared high power across multi-bay fleet and depot sites.

Product Description:

The EVPS-360/480 (EU) is part of our Distributed Charging range.

Expand

Frequency (Hz)	50/60
Input Current @ Rated Vac (A)	686.0
Electrical Protection	Under-voltage protection, over-voltage protection, DC over-current protection, over-temperature protection, surge protection device, emergency stop protection, overload protection, short circuit protection, electric leakage protection, reverse connect protection, over-charge protection
Intelligent Power Sharing	Intelligent power distribution to up to three dispensers (six connectors) in 20 kW increments
Output Power (kW)	360
Output Voltage Range (Vdc)	200 - 1000
Input Voltage +/- 10% (Vac)	400
Efficiency	≥96.5%
Power Factor	≥0.99
THDI	≤5%

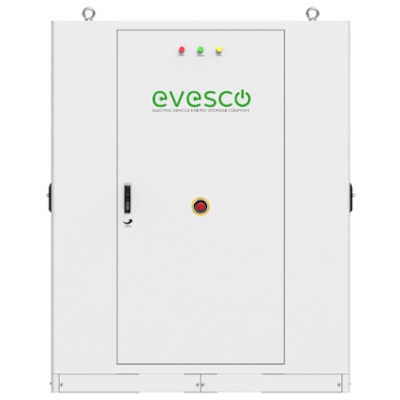

Product Image

Approximate Weight lbs (kg)	2055.0 (932.0)
Length in (mm)	43.3 (1100.0)
Width in (mm)	63.0 (1600.0)
Height in (mm)	78.7 (2000.0)

IP Rating	IP55
IK Rating	IK10
Operating Humidity	5% - 95% without condensation
Compatible Dispensers	EVDS-CCS2/CCS2-33 (EU), EVDS-CCS2/CCS2-53 (EU), EVDS-CCS2/CCS2-55 (EU), EVDS-CCS2-2 (EU)
