ESPV-30/61 (NA)

The ESPV-30/61 (NA) is part of our Solar-Ready Battery Energy Storage range.
Request A Quote
Product Group Information
The ESPV series is designed for commercial and industrial sites looking to combine solar generation with energy storage to reduce energy costs, increase self-consumption, and enhance resilience. By integrating battery storage, inverter, MPPT, and control systems into a single platform, ESPV simplifies solar-plus-storage deployment and reduces system complexity. An integrated EMS enables centralized monitoring, optimization, and control to support applications such as peak management, load shifting, and backup operation. With a compact, space-efficient design and advanced safety architecture, ESPV systems are well suited for new installations or retrofit projects where efficient solar integration and intelligent energy control are key requirements.
Operating Temperature Range:
-22°F (-30°C) to 131°F (55°C)
Group Information:

Battery energy storage systems with integrated inverter, optimized for seamless solar integration and intelligent energy management.

Product Description:

Maximize solar performance with integrated energy storage and control. The ESPV-30/61 (NA) combines a 30 kW solar-inverter and 61.44 kWh of energy in a fully integrated, solar-ready energy storage system, enabling operators to capture, store, and optimize renewable energy from a single platform. With built-in MPPT and a high-efficiency inverter, the ESPV Series simplifies solar integration while improving energy capture and reducing reliance on the grid, supporting lower operating costs and greater energy independence. An integrated energy management system provides real-time monitoring, control, and optimization, enabling smarter energy use, predictive maintenance, and improved system uptime. Designed for flexibility, the solar-ready BESS supports both centralized and distributed configurations, allowing seamless deployment across a wide range of site layouts and applications. With a compact footprint, scalable architecture, and built-in safety systems, the ESPV-30/61 (NA) delivers a reliable, future-ready solution for integrating solar and storage, helping businesses reduce energy costs, improve resilience, and take control of their energy strategy.

Expand
Frequency (Hz) 50/60
Max. AC Power (kW) 45.0
Cell Specification 3.2V 100Ah
Pack Configuration 1P16S
String Configuration 2P96S
Packs per String 12.0
Strings per System 2.0
Battery Voltage Range (Vdc) 281.3 - 340.8
AC Rated Current (A) 83.4
DC Charge/Discharge Current (A) 95
Voltage 307.2
Stored Energy (Wh) 61.44
Cycle Life 8000
Transfer Time 5ms adjustable
Power Factor +/- 0.8 adjustable
Battery Chemistry LiFePO4
AC Rated Voltage (Vac) 120 / 208
Rated Power (kW) 30
Energy Management System Included
Product Image

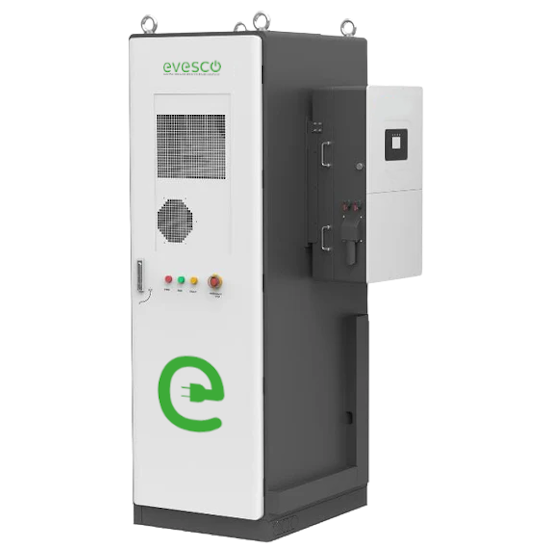

ESPV-30/61 (NA)
Approximate Weight lbs (kg) 2315.0 (1050.0)
Length in (mm) 37.4 (950.0)
Width in (mm) 29.5 (750.0)
Height in (mm) 89.7 (2280.0)
IP Rating IP55
Communication Interface RS485, Ethernet, LTE, CAN
System Scalability Up to 6 in parallel
Operating Humidity 5% - 85% without condensation
Network Connectivity Ethernet, 4G, Wi-Fi
Fire Fighting System Yes
Backup Power & Resilience
Energy Arbitrage
Frequency Regulation & Grid Services
Load Management
Microgrids & Off-Grid Systems
Peak Shaving & Demand Charge Reduction
Power Quality Conditioning
Renewable Energy Integration
Time-of-Use Optimization
Available in US: y
Available in EMEA: y
MPPT Voltage Range (V): 150-500
Cooling Method: Forced air cooling
Supply Input: Single phase, split phase
Max. PV Power STC (kW): 39.0
Startup Voltage (V): 180.0
Max. Input Voltage (V): 550.0
Max. Operating Input Current per MPPT (A): 36.0
Max. Short Circuit Current per MPPT (A): 55.0
Number of MPP Trackers: 4.0
Number of PV Strings per MPPT: 2.0
Max. AC Coupled Input (kW): 30.0
Max. Grid Passthrough Current 10min (A): 200.0
Continuous Grid Passthrough Current (A): 180.0

Features and Documents

All-in-One Architecture

Integrates grid interconnection, power conversion, energy storage, and controls in a single enclosure, streamlining installation and reducing total system complexity

Built-in Safety

Fire suppression, multi-layer DC protection, and intelligent battery management enhance safety, reduce risk, and support long-term reliability

Integrated Battery PCS

Battery and power conversion are pre-integrated to simplify installation, improve reliability, and reduce commissioning time

Integrated EMS

An integrated energy management system enables centralized monitoring, control, and optimization, simplifying operations while supporting predictive maintenance and system insights

Modular System Architecture

Modular architecture supports parallel configurations to efficiently meet site-sizing requirements while maintaining consistent core infrastructure

Outdoor-Rated

Engineered for outdoor installation with robust environmental protection, reducing the need for dedicated housing or additional site enclosure measures
