EVDS-CCS1/CCS1-33-BA (NA)

BABA-compliant and built for scalable, high-throughput EV charging sites, the EVDS-CCS1/CCS1-33-BA (NA) EV charging dispenser provides a flexible driver interface for distributed DC fast charging across federally funded, public, fleet, and commercial projects. Designed to operate with the EVPS-BA power bank, it allows charging points to be positioned where vehicles need them while power conversion and distribution remain centralized. The dispenser features configurable connector combinations, delivering up to 480 kW for fast, reliable charging across passenger vehicles, commercial fleets, buses, and other heavy-duty EVs. A wide 200 - 1000 VDC output range supports current and next-generation EV platforms, while OCPP connectivity, multiple authentication options, and a 15-inch touchscreen simplify driver access and network integration. With BABA compliance built into the platform, the EVDS-CCS1/CCS1-33-BA (NA) delivers the performance, deployment flexibility, and compliance assurance required for long-term EV charging infrastructure investment.
Request A Quote
Product Group Information
The EVDS-BA series is purpose-built to support Build America, Buy America (BABA) compliant distributed DC fast-charging deployments. Designed for use with EVPS-BA series power banks, EVDS-BA dispensers enable high-power charging points to be positioned away from the main power unit for flexible, scalable site layouts. Featuring dual connectors and the same intelligent charging functionality as the standard EVDS platform, the series supports efficient shared power delivery across multi-bay fleet, depot, and infrastructure charging sites. With multi authentication, durable outdoor protection, and high-current charging capability, EVDS-BA is ideally suited for transit agencies, municipal fleets, logistics hubs, government facilities, and federally funded charging projects where domestic sourcing compliance, site flexibility, and long-term scalability are critical.
Warranty
3 years as standard
Operating Temperature Range:
-13°F (-25°C) to 122°F (50°C)
Group Information:

BABA-compliant EV charging dispensers with dual connectors for use with EVPS-BA distributed DC fast charging systems.

Product Description:

BABA-compliant and built for scalable, high-throughput EV charging sites, the EVDS-CCS1/CCS1-33-BA (NA) EV charging dispenser provides a flexible driver interface for distributed DC fast charging across federally funded, public, fleet, and commercial projects. Designed to operate with the EVPS-BA power bank, it allows charging points to be positioned where vehicles need them while power conversion and distribution remain centralized. The dispenser features configurable connector combinations, delivering up to 480 kW for fast, reliable charging across passenger vehicles, commercial fleets, buses, and other heavy-duty EVs. A wide 200 - 1000 VDC output range supports current and next-generation EV platforms, while OCPP connectivity, multiple authentication options, and a 15-inch touchscreen simplify driver access and network integration. With BABA compliance built into the platform, the EVDS-CCS1/CCS1-33-BA (NA) delivers the performance, deployment flexibility, and compliance assurance required for long-term EV charging infrastructure investment.

Expand
Electrical Protection Input over voltage protection, output under voltage protection, short circuit protection, over current protection, over temperature protection, current surge protection.
Intelligent Power Sharing Intelligent power distribution between charging cables in increments of 40 kW
Output Power (kW) 480
Output Voltage Range (Vdc) 200 - 1000

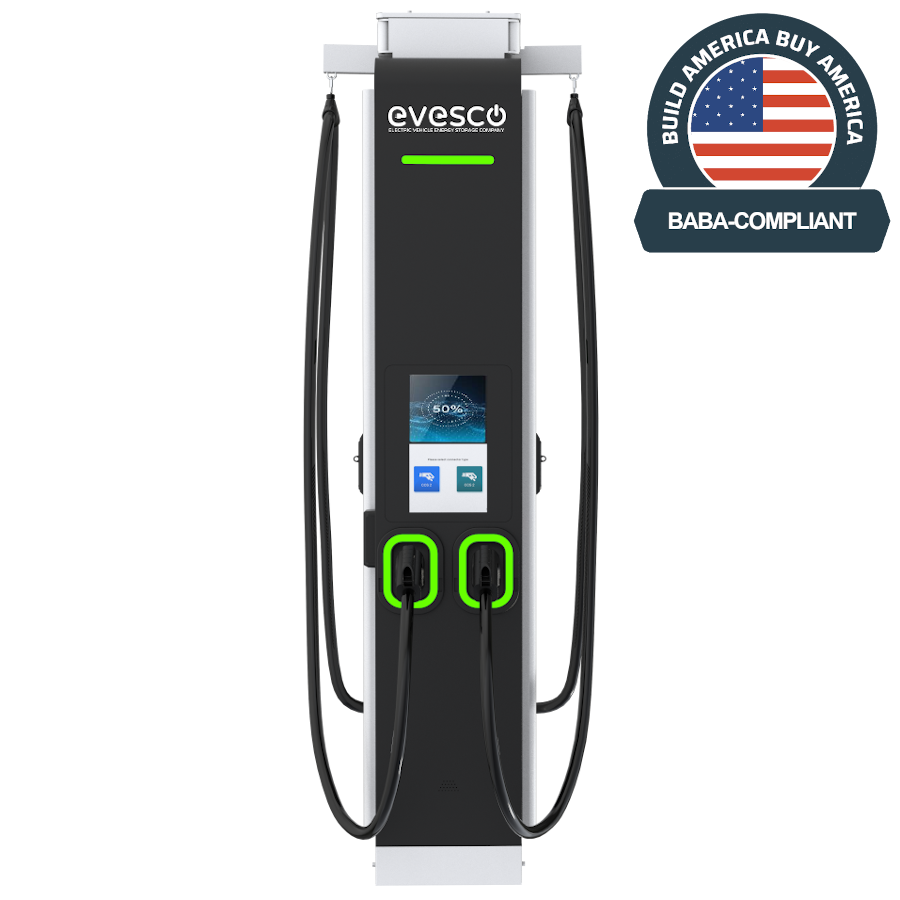

Product Image
EVDS-CCS1/CCS1-33-BA (NA)
Length in (mm) 29.5 (750.0)
Width in (mm) 17.7 (450.0)
Height in (mm) 82.7 (2100.0)
IP Rating IP55
Communication Protocol OCPP1.6
Authentication Modes Auto charge, RFID, Customer backend via OCPP, Payment terminal
Emergency Stop Button Yes
IK Rating IK10
Display 15-Inch LCD touchscreen
Operating Humidity 5% - 95% without condensation
Network Connectivity Ethernet, 4G, Wi-Fi
POS (Credit Card Reader) Optional
Federally Funded Projects
Fleet Operations
Fuel Stations
Logistics and Distribution
Multi-Dwelling Units
Off-Highway
Ports & Airports
Public Charging Networks
Retail
Available in US: y
Available in EMEA: y
Cooling Method: Forced air cooling
Connector Type: CCS1 + CCS1
Output Max. Current (A): 350 / 350
Charging Cable Length (Ft): 16.4
Charging Cable Length (M): 5.0

Features and Documents

BABA-Compliant

Fully compliant with Build America Buy America (BABA), supporting US infrastructure initiatives without sacrificing quality or performance

Intelligent Power Distribution

Intelligent load balancing dynamically allocates power across dispensers based on usage, maximizing system-wide output

OCPP-Compliant Connectivity

Open Charge Point Protocol (OCPP) compatibility enables integration with third-party charger management platforms and networks
