EVDC-CORE-210 (NA)

The EVDC-CORE-210 (NA) is part of our DC Fast Chargers range.

Product Group Information

The EVDC-CORE series is designed for cost-effective, stand-alone DC fast charging in behind-the-fence environments, including fleet depots, commercial facilities, and private parking sites. Covering power levels from 60 kW to 360 kW, EVDC-CORE delivers dependable performance for daily operations where uptime and straightforward deployment matter. The chargers support dual-vehicle charging with intelligent power sharing, a wide 300–1000 VDC output range for today’s and future EV compatibility, and flexible authentication and connectivity options to fit different operational models. EVDC-CORE chargers are commonly deployed where operators need reliable fast charging on private sites with controlled access.

Warranty

3 years as standard

Operating Temperature Range:

-4°F (-20°C) to 122°F (50°C)

Group Information:

Cost-effective stand-alone DC fast chargers for behind-the-fence fleet and commercial depot charging.

Product Description:

The EVDC-CORE-210 (NA) is part of our DC Fast Chargers range.

Expand

Output Power (kW)	210
Input Voltage +/- 10% (Vac)	480
Frequency (Hz)	50/60
Input Current @ Rated Vac (A)	258.0
Electrical Protection	Over / under voltage protection, overload protection, short circuit protection, over / under temperature protection, surge protection, communication failure
Intelligent Power Sharing	1 vehicle: up to 210 kW, 2 vehicles: 120 kW + 90 kW
Output Voltage Range (Vdc)	300 - 1000
Efficiency	≥96% (50%-100% load)
Power Factor	≥0.99
THDI	≤5%

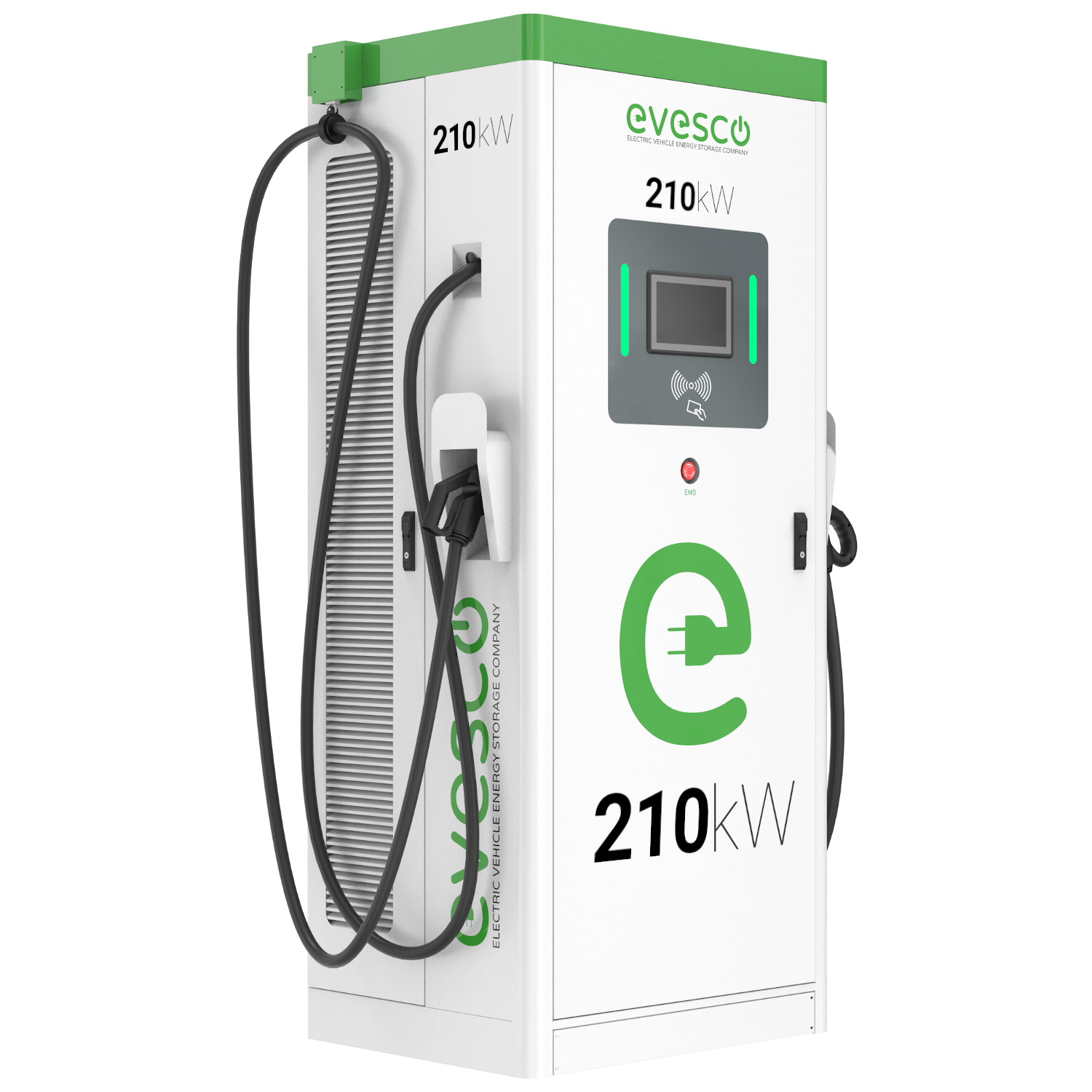

Product Image

Length in (mm)	30.7 (780.0)
Width in (mm)	37.4 (950.0)
Height in (mm)	89.8 (2280.0)

IP Rating	IP54
Communication Protocol	OCPP 1.6
Authentication Modes	Auto charge, RFID, Customer backend via OCPP, Payment terminal
Emergency Stop Button	Yes
IK Rating	IK10
Display	10-inch LCD touchscreen
Operating Humidity	5% - 95% without condensation
Network Connectivity	Ethernet, 4G, Wi-Fi
POS (Credit Card Reader)	Optional

Auto Dealerships

Fleet Operations

Logistics and Distribution

Off-Highway

Ports & Airports

Available in US:	y
Available in EMEA:	y
Cooling Method:	Liquid-cooling
Connector Type:	CCS1 + CCS1
Output Max. Current (A):	400 / 400
Supply Input:	3P + PE (No neutral)
Charging Cable Length (Ft):	16.4
Charging Cable Length (M):	5.0
Available in US:	y
Available in EMEA:	y
Cooling Method:	Liquid-cooling
Connector Type:	CCS1 + NACS
Output Max. Current (A):	CCS1: 400 / NACS: 600
Supply Input:	3P + PE (No neutral)
Charging Cable Length (Ft):	16.4
Charging Cable Length (M):	5.0
Available in US:	y
Available in EMEA:	y
Cooling Method:	Liquid-cooling
Connector Type:	NACS + NACS
Output Max. Current (A):	600 / 600
Supply Input:	3P + PE (No neutral)
Charging Cable Length (Ft):	16.4
Charging Cable Length (M):	5.0

Features and Documents

ADA-Conscious Form Factor

Designed with a compact footprint and accessible user interface to support deployment where space and usability are critical

Future-Proof VDC Output Range

Wide 200 –1000 VDC output supports high-voltage EV battery architectures, ensuring compatibility with current and next-generation electric vehicles

High Power Output

Delivers up to 400 kW charging to reduce dwell times, support high-utilization corridors, and enable faster fleet turnaround

Integrated Cable Management

Includes built-in cable holster and storage features to support safe handling, reduce clutter, and improve the driver experience

OCPP-Compliant Connectivity

Supports standard OCPP communication protocols for easy integration with charging networks, fleet software, and energy management systems

Simultaneous Vehicle Charging

Intelligent power sharing enables two vehicles to charge simultaneously without delays or reduced performance, maximizing throughput
