EVMO-30/60-NACS+ (EU)

The EVMO-30/60-NACS+ (EU) is part of our Mobile DC Fast Chargers range.
Request A Quote
Product Group Information
The EVMO series is designed for fleets and EV manufacturers operating across multiple vehicle platforms and connector standards. Featuring an interchangeable cable architecture, EVMO enables operators to quickly adapt charging interfaces without replacing core equipment, protecting investment as fleet composition evolves. The mobile platform allows DC fast charging to be deployed directly where vehicles are staged, serviced, or manufactured, eliminating unnecessary vehicle movement and reducing workflow disruption. By connecting to commonly available industrial AC power, EVMO supports rapid deployment without permanent infrastructure upgrades. EVMO is ideally suited for mixed-fleet depots, OEM production facilities, R&D environments, and service centers where connector flexibility, asset utilization, and future-proofing are critical decision drivers.
Warranty
3 years as standard
Operating Temperature Range:
-22°F (-30°C) to 149°F (65°C)
Group Information:

Mobile DC fast chargers with interchangeable cable configurations for fleets and OEMs managing multiple connector standards.

Product Description:

One charger. Any vehicle. Total flexibility. The EVMO-30/60-NACS+ (EU) delivers mobile DC fast charging up to 30 kW, powered directly from a 400 VAC supply, enabling immediate deployment across workshops, depots, and test environments. Designed for maximum versatility, the EVMO Series features interchangeable charging cables supporting worldwide DC charging, allowing a single unit to charge multiple vehicle types across different standards. Its mobile, grid-connected design enables operators to bring charging directly to the vehicle, eliminating unnecessary vehicle movement and improving operational efficiency across service bays and production lines. With a wide 150 - 1000 output voltage compatibility, the mobile DC charger supports everything from legacy EVs to next-generation high-voltage platforms, making it ideal for EV manufacturers, multi-vehicle fleets, and testing facilities. By combining mobility, multi-standard compatibility, and rapid deployment, the EVMO-30/60-NACS+ (EU) provides a cost-effective solution for increasing charging capacity without investing in permanent stationary infrastructure.

Expand
Frequency (Hz) 50/60
Input Current @ Rated Vac (A) 44.0
Electrical Protection Over / under voltage protection, overload protection, short circuit protection, over / under temperature protection, surge protection, communication failure
Output Power (kW) 30
Output Voltage Range (Vdc) 150 - 1000
Input Voltage +/- 10% (Vac) 400
Efficiency ≥95% (50%-100% load)
Power Factor ≥0.99
THDI ≤5%

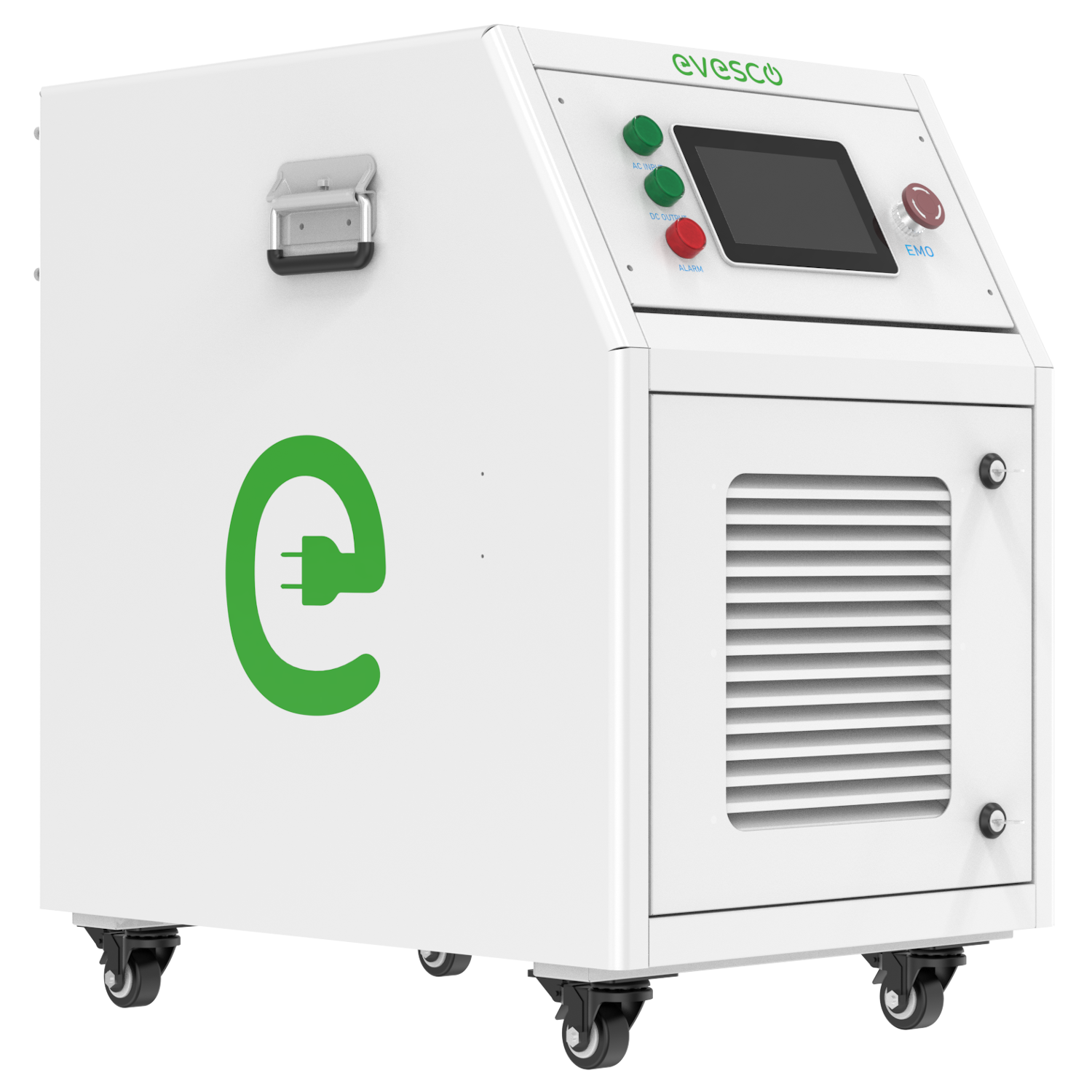

Product Image
EVMO-30/60-NACS+ (EU)
Length in (mm) 27.5 (698.0)
Width in (mm) 18.9 (479.0)
Height in (mm) 29.7 (756.0)
IP Rating IP54
Communication Protocol OCPP 1.6
Authentication Modes Auto charge, Customer backend via OCPP
Emergency Stop Button Yes
IK Rating IK10
Upgradeable Power Increase power by adding a 30 kW module to max 60 kW
Display 10-inch LCD touchscreen
Operating Humidity 5% - 95% without condensation
Network Connectivity 4G, Wi-Fi
Auto Dealerships
EV Manufacturing & Testing
Fleet Operations
Logistics and Distribution
Off-Highway
Ports & Airports
Temporary Charging
Available in US: y
Available in EMEA: y
Cooling Method: Forced air cooling
Connector Type: CCS1, CCS2, CHAdeMO, GB/T and NACS interchangable charging cables
Output Max. Current (A): 125
Supply Input: 3P + PE (No neutral)
Charging Cable Length (Ft): 16.4
Charging Cable Length (M): 5.0
Available in US: y
Available in EMEA: y
Cooling Method: Forced air cooling
Connector Type: CCS1, CCS2, CHAdeMO, GB/T and NACS interchangable charging cables
Output Max. Current (A): 125
Supply Input: 3P + PE + N
Charging Cable Length (Ft): 16.4
Charging Cable Length (M): 5.0

Features and Documents

Dynamic Power Sharing

Power is intelligently distributed across dispensers based on vehicle demand, optimizing utilization and improving throughput

Flexible Dispenser Pairing

Supports deployment with multiple dispenser types and configurations, enabling tailored site layouts and charging experiences

Flexible Power Architecture

Supports distributed power delivery across multiple dispensers, allowing scalable site design and better alignment with operational demand

High Power Output

Delivers up to 700A, with continuous charging at 500A, ideal for heavy-duty EVs needing stable, high-speed performance

Up to 16 Connectors

Supports up to 16 charging connectors, enabling large-scale site design for high-throughput public or fleet charging applications

Up to 6 Connectors

Supports up to six charging connectors to increase charger access and serve more vehicles from a centralized power system
