PSL-BTP-121250

Lithium Bluetooth Series

On Sale
Where to buy
Download Technical Data Sheet

Features

Specifications

Terminal Options

  • 12.8V 125Ah Smart LiFePO4 Battery
  • Battery Management System (BMS) controls the parameters of the battery to provide optimum safety and performance
  • BMS enhanced design balances the battery cells and protects against overcharging and discharging
  • Bluetooth® communication capability for battery status monitoring through Power Sonic app
  • Up to 10 times more cycles than lead acid batteries
  • Faster charging and lower self-discharge
  • Compact and only 40% of the weight of comparable lead acid batteries
  • Delivers twice the power of lead acid batteries, even high discharge rate, while maintaining high energy capacity

Model Number:

PSL-BTP-121250

Nominal voltage:

12.8V

Capacity:

125.00 Ah

Weight:

14.9kg / 32.80lbs

Case:

UL94:V0 Flame retardant plastic

Dimensions

Length:

12.51'' / 318mm

Width:

6.49'' / 165mm

Height:

8.46'' / 215mm

M8
  • 12.8V 125Ah Smart LiFePO4 Battery
  • Battery Management System (BMS) controls the parameters of the battery to provide optimum safety and performance
  • BMS enhanced design balances the battery cells and protects against overcharging and discharging
  • Bluetooth® communication capability for battery status monitoring through Power Sonic app
  • Up to 10 times more cycles than lead acid batteries
  • Faster charging and lower self-discharge
  • Compact and only 40% of the weight of comparable lead acid batteries
  • Delivers twice the power of lead acid batteries, even high discharge rate, while maintaining high energy capacity

Model Number:

PSL-BTP-121250

Nominal voltage:

12.8V

Capacity:

125.00 Ah

Weight:

14.9kg / 32.80lbs

Case:

UL94:V0 Flame retardant plastic

Dimensions

Length:

12.51'' / 318mm

Width:

6.49'' / 165mm

Height:

8.46'' / 215mm

M8

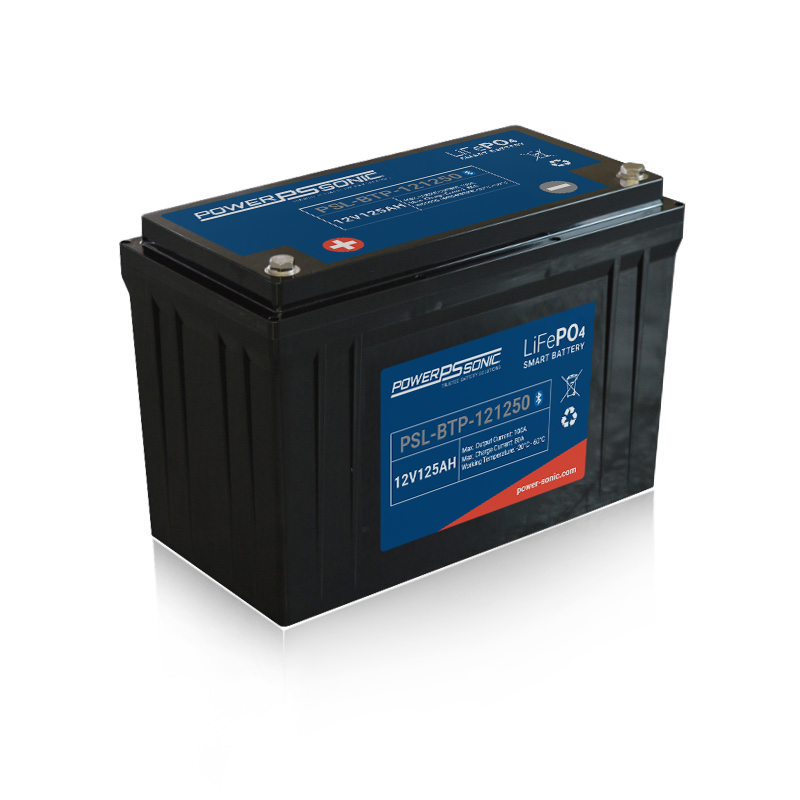

Product Image

Battery Management System (BMS) features include balancing function for cells, over-current protection, over-charge protection, over-discharge protection and over-temperature protection.

MODEL SUMMARY

The PSL-BTP-121250 is part of our Bluetooth lithium range of LiFePO4 batteries which combines proven lithium iron phosphate technology with an intelligent battery management system (BMS) and Bluetooth connectivity, delivering a battery that lasts longer and can be monitored with a smart phone and other smart devices.

The 12.8V 125Ah smart battery is the ideal solution for users who have batteries in hard to access locations or in critical applications where the battery needs to be regularly checked for peak performance.

certificate certificate

CAN'T FIND WHAT YOU WERE LOOKING FOR?

Get in touch with us!

Related Downloads

PDF

Power Sonic Bluetooth APP Manual

Download
PDF

PSL-BTP-121250 Full Technical Document

Download
PDF

Product Warranty - Lithium

Download
PDF

How to Charge LiFePO4 Batteries

Download
PDF

The Differences Between Lithium and Lead Acid

Download
View all downloads at the Resource Center

RELATED PRODUCTS

PSL-SC-121250-G31

PSL-SC-121250-G31

The PSL-SC-121250-G31 is part of our deep cycle lithium series and parallel connection range which can be connected in a series or parallel...

View PSL-SC-121250-G31
PSC-1220000-LIFE-EU

PSC-1220000-LIFE-EU

The PSC-1220000-LiFe-EU is part of our LiFe series of 3-step LiFePO4 battery chargers. The LiFe Series of lithium chargers feature an intelligent...

View PSC-1220000-LIFE-EU
PSC-1220000-LIFE-US

PSC-1220000-LIFE-US

The PSC-1220000-LiFe-US is part of our LiFe series of 3-step LiFePO4 battery chargers. The LiFe Series of lithium chargers feature an intelligent...

View PSC-1220000-LIFE-US
PGFT-12V125

PGFT-12V125

The PGFT-12V125 is part of our PG range of long life sealed lead acid batteries (often referred to as VRLA) which have been designed specifically for...

View PGFT-12V125

READY TO PURCHASE?

FIND A DISTRIBUTOR

Power Sonic have a network of battery distributors throughout North America and around the world

Find my nearest distributor

Speak to an expert

If you need help selecting the right charger for your particular application feel free to contact us, we have a highly trained and qualified team of experts that will be more than happy to help you.

link

The Power Sonic Brand Promise

Quality Icon

Quality

Manufactured using the latest technology and stringent quality control, our battery products are designed to exceed in performance and reliability.

Experience Icon

Experience

Our focused approach to exceptional end to end customer experience sets us apart from the competition. From enquiry to delivery and everything in-between we regularly exceed our customers’ expectations.

Service Icon

Service

Delivery on time, every time to customer specifications. We pride ourselves on offering tailored service solutions to meet our customers' exact specifications.

X

Choose your distributor

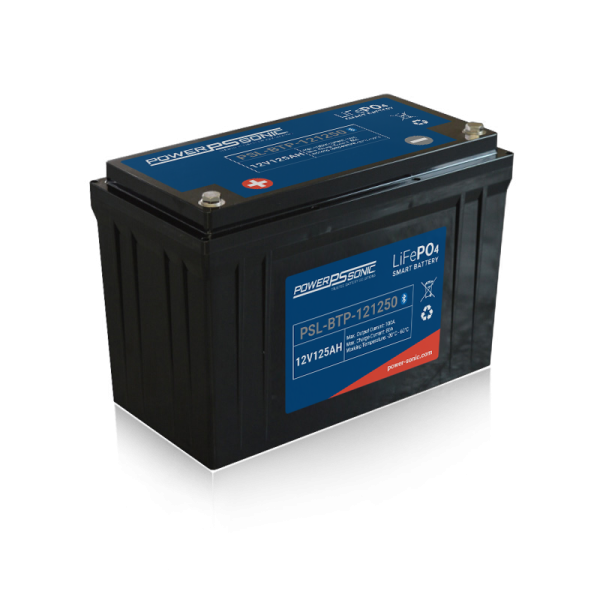

Product Image
