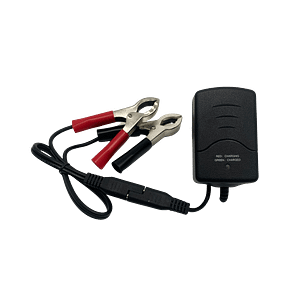

PSC-121000ACX

ACX Series

Where to buy
Download Technical Data Sheet

Features

Specifications

Dimensions

Use with Battery

  • Battery charger designed for VRLA batteries
  • Universal input voltage range 100VAC - 240VAC
  • Automatic, current sensing dual-rate charging for efficient, care-free and safe operation
  • L.E.D indicators
  • Alligator clip connectors with insulated sleeves
  • DOE compliant
  • ETL approved

Nominal voltage:

12V

Output Current:

1000mA

Output Voltage Float:

13.3V

Output Voltage Fast Charge:

14.7V

Charger Design:

Plug-in

Charger Type:

Dual rate

Length:

3.15'' / 80mm

Width:

2.24'' / 57mm

Height:

1.97'' / 50mm

Weight:

0.09kg / 0.20lbs

Voltage:

12V

Capacity:

5 - 12 Ah

  • Battery charger designed for VRLA batteries
  • Universal input voltage range 100VAC - 240VAC
  • Automatic, current sensing dual-rate charging for efficient, care-free and safe operation
  • L.E.D indicators
  • Alligator clip connectors with insulated sleeves
  • DOE compliant
  • ETL approved

Nominal voltage:

12V

Output Current:

1000mA

Output Voltage Float:

13.3mA

Output Voltage Fast Charge:

14.7mA

Charger Design:

Plug-in

Charger Type:

Dual rate

Length:

3.15'' / 80mm

Width:

2.24'' / 57mm

Height:

1.97'' / 50mm

Weight:

0.09kg / 0.20lbs

Voltage:

12V

Capacity:

5 - 12 Ah

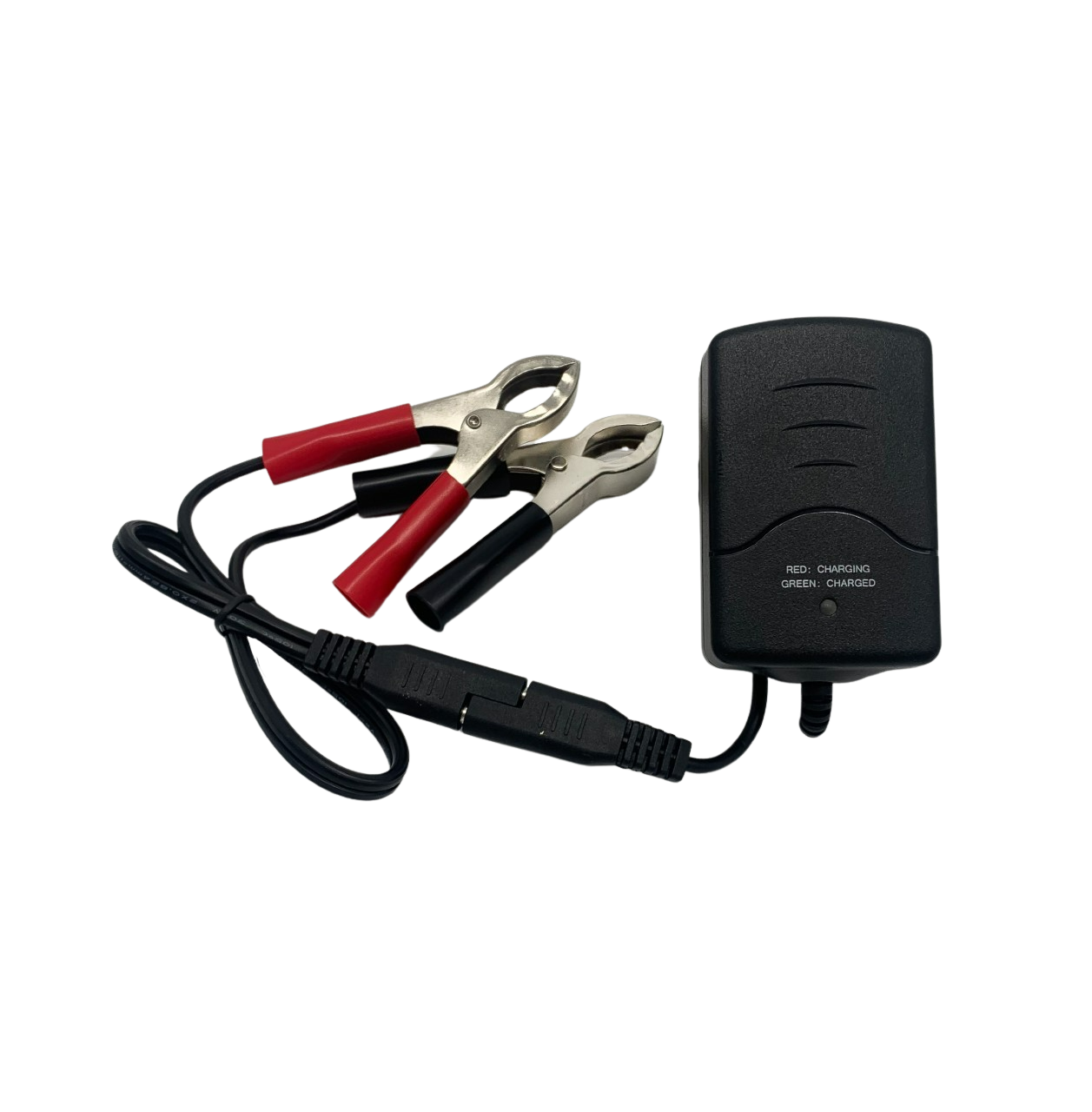

Product Image

MODEL SUMMARY

The PSC-121000ACX is part of our ACX series of sealed lead acid (VRLA) switch-mode battery chargers. The ACX series chargers are switching type chargers which operate without the use of transformers. I.C’s control and regulate current and voltage and automatically switch from the higher fast charger voltage to the lower float voltage when batteries are very close to be fully charged. The 12V 1000mA plug-in battery charger is ideal for cyclic applications where recharge time is critical and timely charge termination cannot be relied on.

These chargers ensure optimum battery performance and service life for Power Sonic batteries. If you need help finding the right charger for your battery please check the battery technical specification sheet for the recommended charger or contact us for help.
