PS-AUX14

The PS-AUX14 is part of our Auxiliary AGM range. This 12.0V, 13.0Ah, and 200.0CCA battery provides high vibration resistance and reliable support for start-stop systems. Features include AGM Technology, AUX Low State of Charge, Long Shelf Life, SLA Cycle Life, SLA Maintenance Free, and Vibration Impact Resistant. These batteries are commonly used in and Transport requiring factory-fit formats. Backed by decades of expertise, Power-Sonic batteries are subject to stringent quality controls through each step of the manufacturing process to ensure compliance, performance consistency, and reliability.
Request A QuoteGet Datasheet
Product Group Marketing Paragraph
Auxiliary AGM batteries built for modern vehicles with start stop and heavy accessory loads. Stable voltage supports infotainment, ADAS, and comfort systems when the engine is off.
Long Term Storage Statement
AUX series batteries may be stored for up to 6 months at 25C (77 F) and then a freshening charge is required. For higher temperatures the time interval will be shorter

Operating Temperature
Range _ Charge:
5°F - 104°F
(--15°C)
(40°C)
Operating Temperature
Range _ Discharge:
-4°F - 122°F
(--20°C)
(50°C)
Dimensional Tolerances:
+/- 0.08 in. (+/- 2mm) for length, width, and height dimensions
Additional Specifications:
For the detailed technical specifications please refer to the model's technical document
Group Description:

Engineered with high vibration resistance and optimized for partial state of charge, these batteries provide reliable support for start-stop systems and are built in factory-fit formats for easy replacement.

Product Description:

The PS-AUX14 is part of our Auxiliary AGM range. This 12.0V, 13.0Ah, and 200.0CCA battery provides high vibration resistance and reliable support for start-stop systems. Features include AGM Technology, AUX Low State of Charge, Long Shelf Life, SLA Cycle Life, SLA Maintenance Free, and Vibration Impact Resistant. These batteries are commonly used in and Transport requiring factory-fit formats. Backed by decades of expertise, Power-Sonic batteries are subject to stringent quality controls through each step of the manufacturing process to ensure compliance, performance consistency, and reliability.

Charging Description:

Cycle Applications: Apply constant voltage charge at 2.35VPC – 2.45VPC (14.1 to 14.7 volts for 12V Monobloc) at 20°C. The initial charging current should be set at less than C/5 Amps. Switch to float charge when the current falls to a 3% capacity rate to avoid overcharging. Stand-By or "Float" Service: Apply constant voltage charge of 2.25VPC – 2.30VPC (13.5 to 13.8 volts for 12V Monobloc) at 20°C. When held at this voltage, the battery will seek its own current level and maintain itself in a fully charged condition. Temperature Compensation: Charging voltage for both cyclic and stand-by applications should be regulated in relation to ambient temperature. As temperature rises, charging voltage should be reduced to prevent overcharge and increased as the temperature falls to avoid undercharge. For further charging information, including temperature compensation factors, see the Power-Sonic Technical Manual.

Expand
Voltage 12.0
Number of Series Cells 6.0
Stored Energy (Wh) 156.0
Rated Capacity 10hr 13.0
FUTURE USE 14.4
Max Charge Current (A) 3.6
Recommended Discharge Cutoff Voltage 10.5
CCA 200.0
Capacity Voltage 20hr 10.5
Capacity Voltage 10hr 10.5
Capacity Current 10hr 1.3
Capacity Voltage 5hr 10.2
Capacity Voltage 1hr 9.6
Cycle Constant Voltage Range 14.00V – 14.70V
Float Constant Voltage Range 13.50V - 13.80V
Initial Charging Current (A) 1.2
Recommended Chargers PSC-122000ACX
Datasheet URL PS-AUX14-DATASHEET.pdf

Recommended Charge Current (C rate) : 1.0 - 3.3

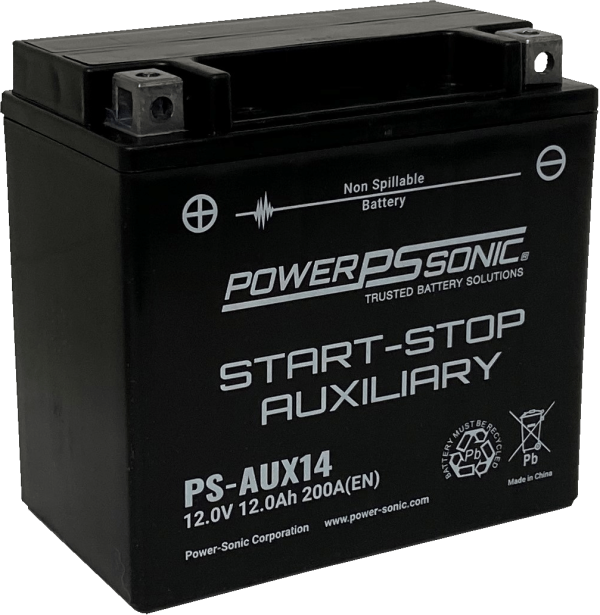

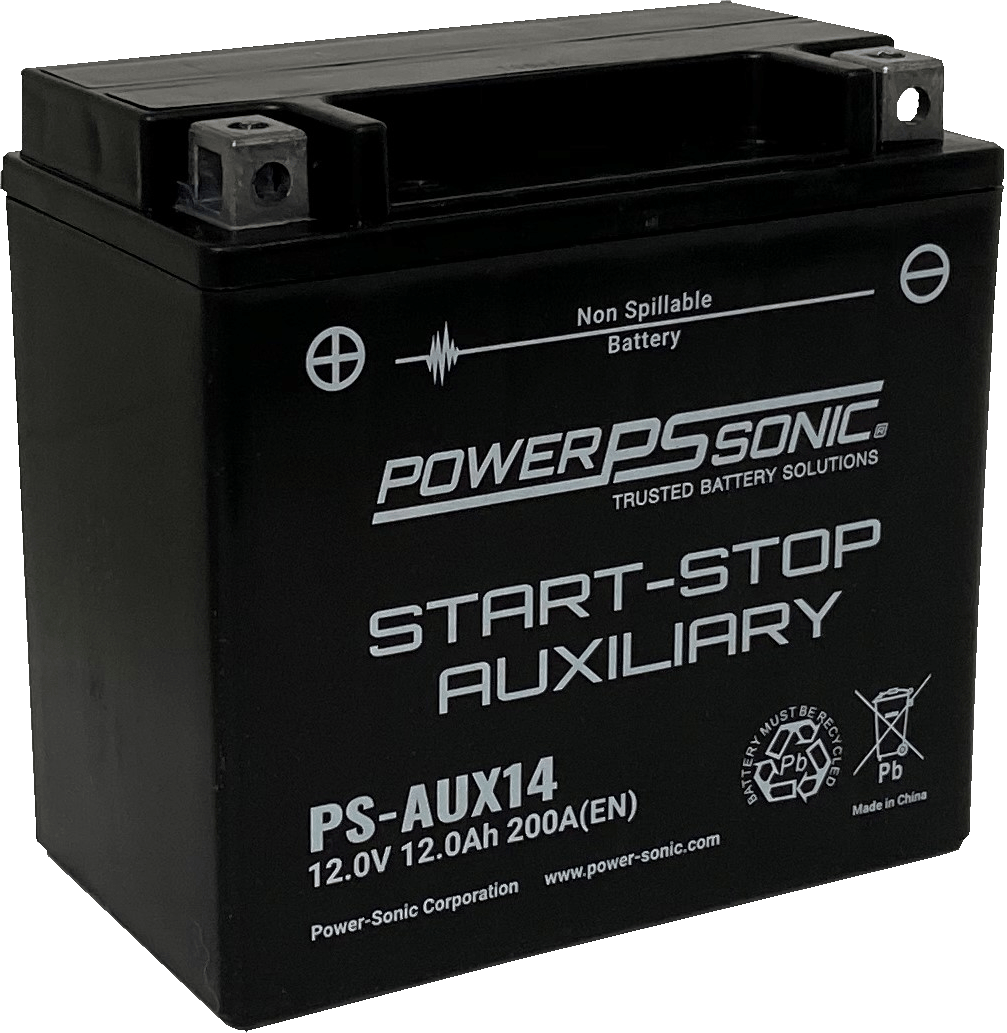

Image Featured
PS-AUX14
Case Material ABS Plastic Rated to UL94:HB
Length in (mm) 5.91 (150.0)
Width in (mm) 3.42 (87.0)

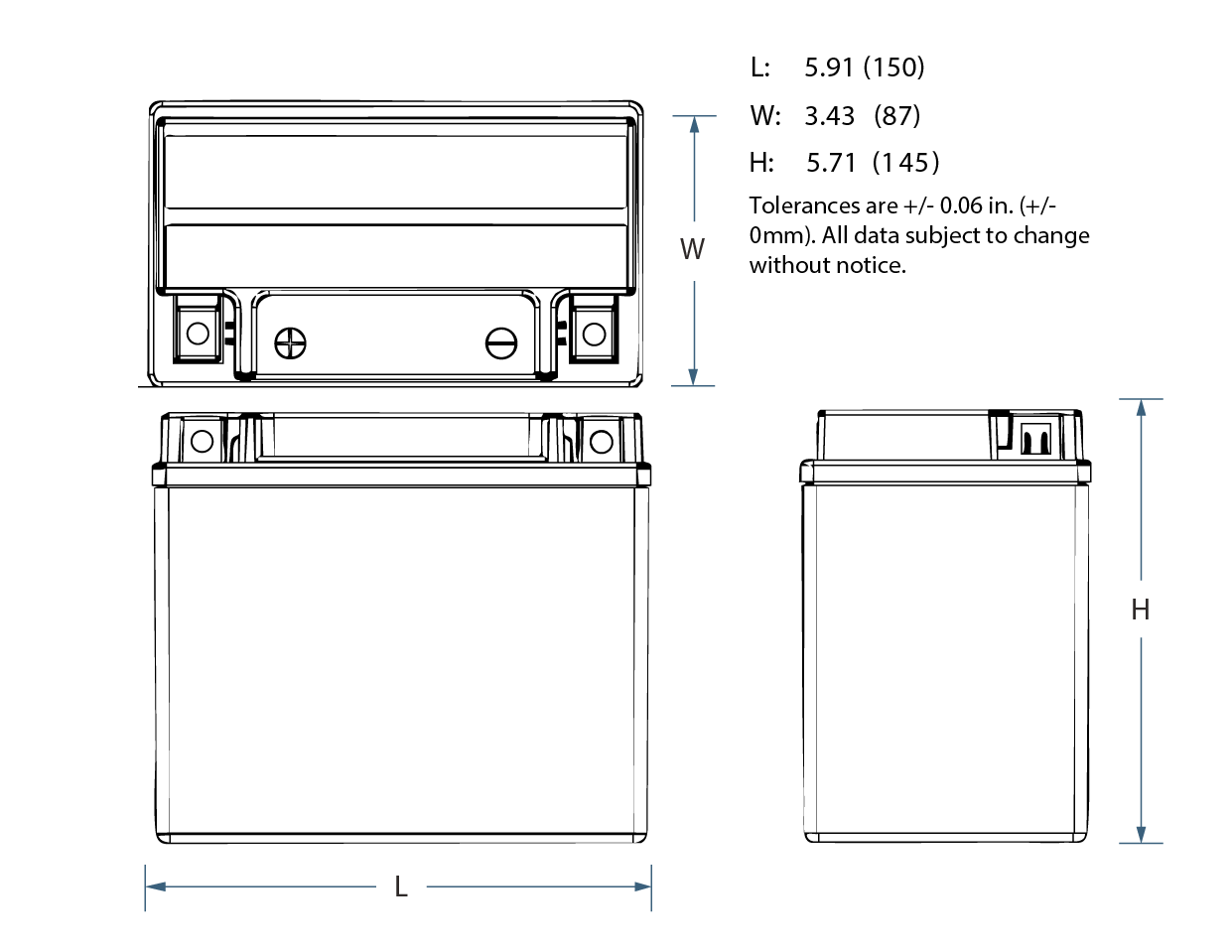

Dimensions Image
PS-AUX14
Height in (mm) 5.71 (145.0)
Height Over Terminal in (mm) 5.71 (145.0)
Minimum Weight kg (lbs) 4.5 (9.92)

Characteristic AUX14

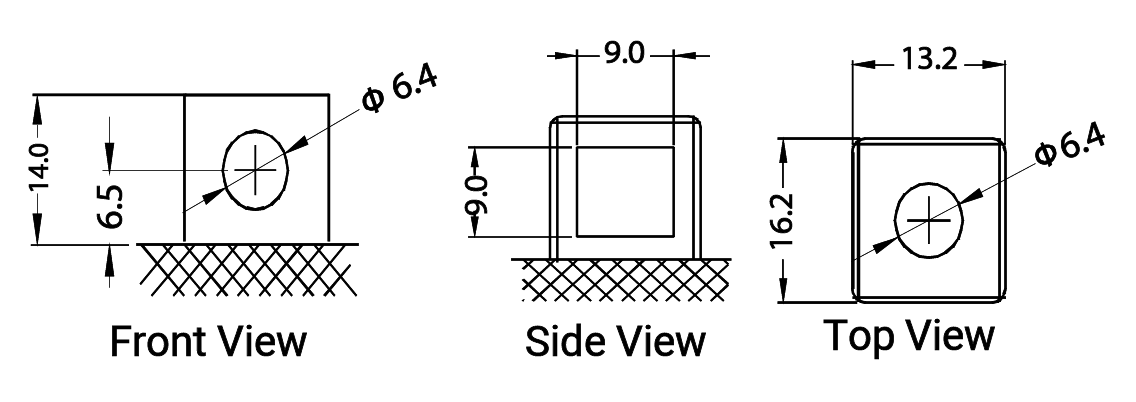

Terminal Type M6X10
VdS n
Active on Web US y
Active on Web EMEA y
Terminal Image AUX14

Features and Documents

AGM Technology

Absorbent Glass Mat (AGM) technology for superior performance, service life, and reliability

AUX Low State of Charge

Optimized for low state of charge operations

Long Shelf Life

Long shelf life with low self-discharge

SLA Cycle Life

Enhanced design for extended and optimal cycle life

SLA Maintenance Free

Proven valve regulated technology that guarantees safe operation without maintenance or refilling

Vibration Impact Resistant

Highly vibration and impact resistant

Graphs

Capacity Retention SLA

Capacity Retention SLA

Shelf life of SLA at various temperatures

SLA Charging

SLA Charging

Charging characteristics for SLA

SLA Discharge Rates

SLA Discharge Rates

SLA voltage profiles at various rates

SLA Float Life 5YR

SLA Float Life 5YR

5 year float life vs. temperature for SLA
