PS-630ST

PS Series

Where to buy
Download Technical Data Sheet

Features

Specifications

Terminal Options

  • General purpose VRLA battery
  • Absorbent Glass Mat (AGM) technology for superior performance
  • Power and volume ratio yielding unrivalled energy density
  • Valve regulated, maintenance free spill proof construction
  • Rugged impact resistant ABS case and cover
  • 5 year design life
  • Approved for transport by air. D.O.T., I.A.T.A., F.A.A. and C.A.B certified

Model Number:

PS-630ST

Nominal voltage:

6V

Capacity @20HR (AH):

3.50 Ah

Capacity @10HR (AH):

3.30 Ah

Weight:

0.6kg / 1.4lbs

Case:

ABS UL94:HB (flame retardant UL94:V0 version also available)

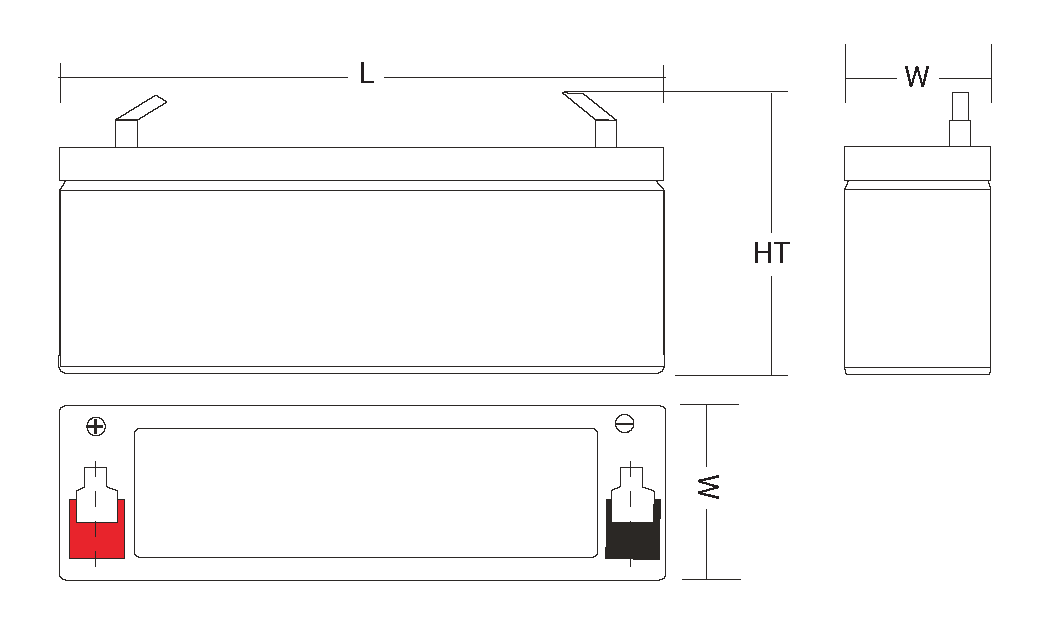

Dimensions

Length:

5.28'' / 134mm

Width:

1.34'' / 34mm

Height:

2.35'' / 60mm

Recommended Charger:

PSC-6500A-C PSC-6500-PC

F1
  • General purpose VRLA battery
  • Absorbent Glass Mat (AGM) technology for superior performance
  • Power and volume ratio yielding unrivalled energy density
  • Valve regulated, maintenance free spill proof construction
  • Rugged impact resistant ABS case and cover
  • 5 year design life
  • Approved for transport by air. D.O.T., I.A.T.A., F.A.A. and C.A.B certified

Model Number:

PS-630ST

Nominal voltage:

6V

Capacity @20HR (AH):

3.50 Ah

Capacity @10HR (AH):

3.30 Ah

Weight:

0.6kg / 1.4lbs

Case:

ABS UL94:HB (flame retardant UL94:V0 version also available)

Dimensions

Length:

5.28'' / 134mm

Width:

1.34'' / 34mm

Height:

2.35'' / 60mm

Recommended Charger:

PSC-6500A-C PSC-6500-PC

F1

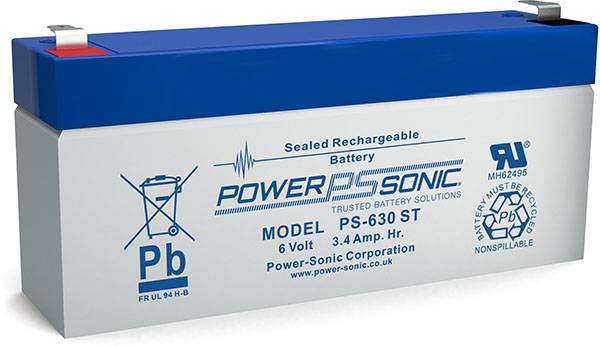

Product Image

MODEL SUMMARY

The PS-630ST is part of our PS range of sealed lead acid batteries (often referred to as VRLA) which have been specifically designed for general purpose and standby applications. The 6V 3.50Ah battery offers excellent performance in a wide range of applications including security and fire systems, medical devices, emergency lighting and UPS systems.

All Power Sonic batteries are subject to stringent quality controls through every step of the manufacturing process ensuring both consistency and reliability.
