PS-6100

PS Series

Where to buy
Download Technical Data Sheet

Features

Specifications

Terminal Options

  • 6V 12Ah General purpose VRLA battery
  • Absorbent Glass Mat (AGM) technology for superior performance
  • Power and volume ratio yielding unrivalled energy density
  • Valve regulated, maintenance free spill proof construction
  • Rugged impact resistant ABS case and cover
  • 5 year design life
  • Approved for transport by air. D.O.T., I.A.T.A., F.A.A. and C.A.B certified

Model Number:

PS-6100

Nominal voltage:

6V

Capacity @20HR (AH):

12.00 Ah

Capacity @10HR (AH):

11.50 Ah

Weight:

1.9kg / 4.3lbs

Case:

ABS UL94:HB (flame retardant UL94:V0 version also available)

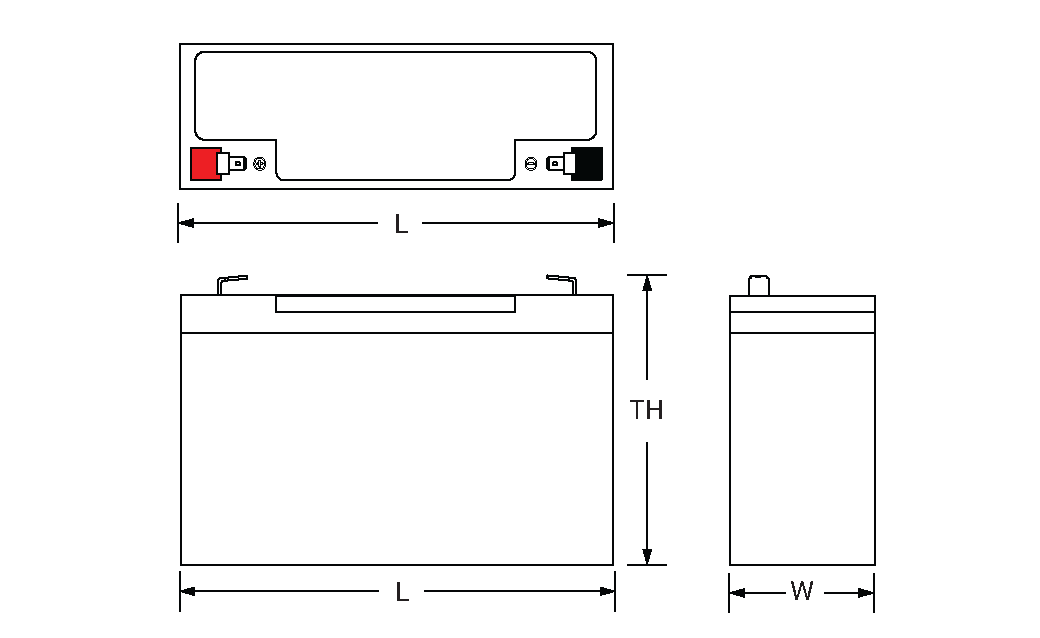

Dimensions

Length:

5.95'' / 151mm

Width:

2.00'' / 51mm

Height:

3.70'' / 94mm

Recommended Charger:

PSC-61000ACX

F1
Terminal Info
F2
Terminal Info
  • 6V 12Ah General purpose VRLA battery
  • Absorbent Glass Mat (AGM) technology for superior performance
  • Power and volume ratio yielding unrivalled energy density
  • Valve regulated, maintenance free spill proof construction
  • Rugged impact resistant ABS case and cover
  • 5 year design life
  • Approved for transport by air. D.O.T., I.A.T.A., F.A.A. and C.A.B certified

Model Number:

PS-6100

Nominal voltage:

6V

Capacity @20HR (AH):

12.00 Ah

Capacity @10HR (AH):

11.50 Ah

Weight:

1.9kg / 4.3lbs

Case:

ABS UL94:HB (flame retardant UL94:V0 version also available)

Dimensions

Length:

5.95'' / 151mm

Width:

2.00'' / 51mm

Height:

3.70'' / 94mm

Recommended Charger:

PSC-61000ACX

F1
Terminal Info
F2
Terminal Info

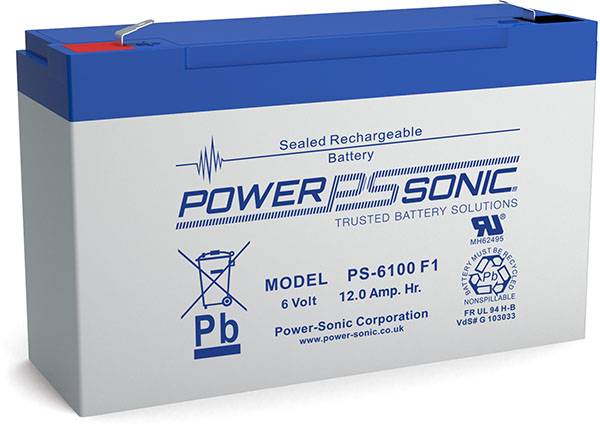

Product Image

If you are looking for the VdS approved version of this battery please click PS-6100VdS

MODEL SUMMARY

The PS-6100 is part of our PS range of sealed lead acid batteries (often referred to as VRLA) which have been specifically designed for general purpose and standby applications. The 6V 12.00Ah battery offers excellent performance in a wide range of applications including security and fire systems, medical devices, emergency lighting and UPS systems.

All Power Sonic batteries are subject to stringent quality controls through every step of the manufacturing process ensuring both consistency and reliability.

certificate certificate

CAN'T FIND WHAT YOU WERE LOOKING FOR?

Get in touch with us!

Related Downloads

PDF

PS-Summary-Specification-Sheet

Download
PDF

Product Warranty - Lead Acid

Download
PDF

How To Charge Lead Acid Batteries

Download
View all downloads at the Resource Center

RELATED PRODUCTS

PS-6100VdS

PS-6100VdS

The PS-6100VdS is part of our VdS approved PS range of sealed lead acid batteries (often referred to as VRLA) which have been specifically designed...

View PS-6100VdS
PS-6120FP

PS-6120FP

The PS-6120FP is part of our PS range of sealed lead acid batteries (often referred to as VRLA) which have been specifically designed for general...

View PS-6120FP

READY TO PURCHASE?

FIND A DISTRIBUTOR

Power Sonic have a network of battery distributors throughout North America and around the world

Find my nearest distributor

Speak to an expert

If you need help selecting the right charger for your particular application feel free to contact us, we have a highly trained and qualified team of experts that will be more than happy to help you.

link

The Power Sonic Brand Promise

Quality Icon

Quality

Manufactured using the latest technology and stringent quality control, our battery products are designed to exceed in performance and reliability.

Experience Icon

Experience

Our focused approach to exceptional end to end customer experience sets us apart from the competition. From enquiry to delivery and everything in-between we regularly exceed our customers’ expectations.

Service Icon

Service

Delivery on time, every time to customer specifications. We pride ourselves on offering tailored service solutions to meet our customers' exact specifications.

X

Choose your distributor

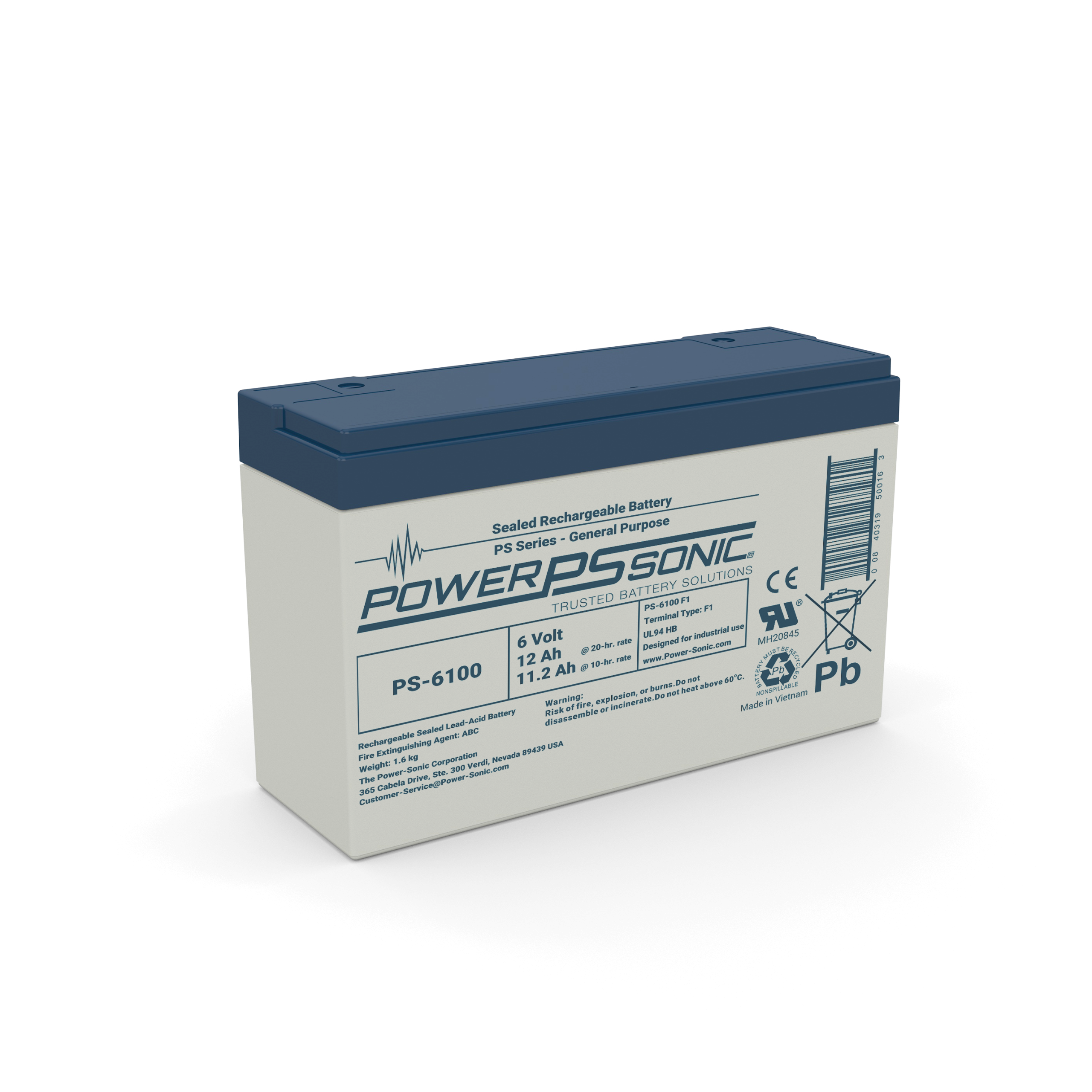

Product Image
