PS-4100

PS Series

Where to buy
Download Technical Data Sheet

Features

Specifications

Terminal Options

  • 4V 10Ah General purpose VRLA battery
  • Absorbent Glass Mat (AGM) technology for superior performance
  • Power and volume ratio yielding unrivalled energy density
  • Valve regulated, maintenance free spill proof construction
  • Rugged impact resistant ABS case and cover
  • 5 year design life
  • Approved for transport by air. D.O.T., I.A.T.A., F.A.A. and C.A.B certified

Model Number:

PS-4100

Nominal voltage:

4V

Capacity @20HR (AH):

10.00 Ah

Capacity @10HR (AH):

9.30 Ah

Weight:

1.1kg / 2.5lbs

Case:

ABS UL94:HB (flame retardant UL94:V0 version also available)

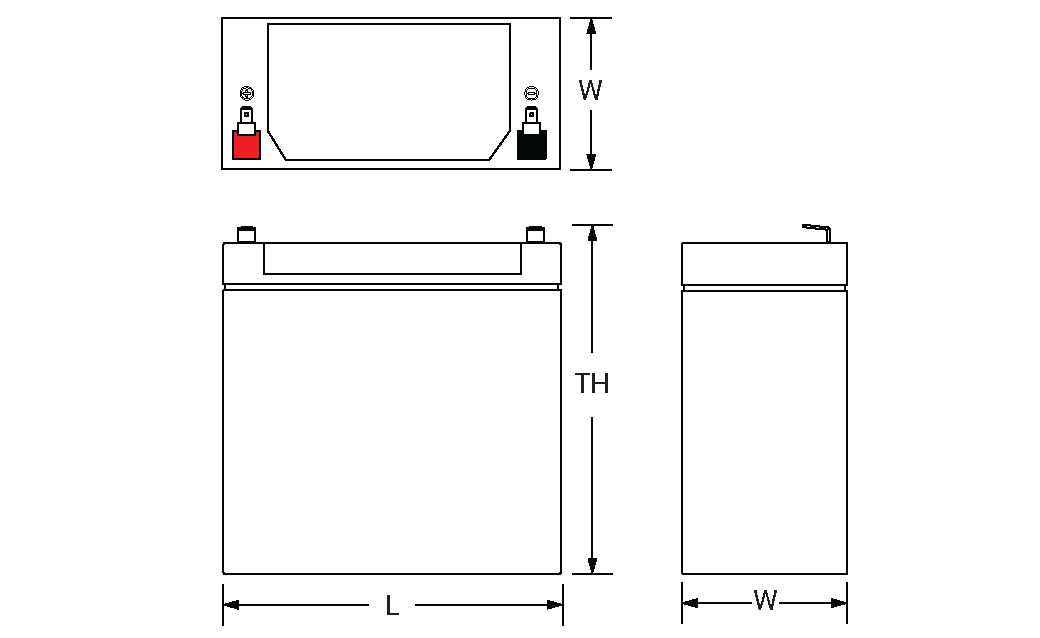

Dimensions

Length:

4.01'' / 102mm

Width:

1.97'' / 50mm

Height:

3.70'' / 94mm

F1
Terminal Info
  • 4V 10Ah General purpose VRLA battery
  • Absorbent Glass Mat (AGM) technology for superior performance
  • Power and volume ratio yielding unrivalled energy density
  • Valve regulated, maintenance free spill proof construction
  • Rugged impact resistant ABS case and cover
  • 5 year design life
  • Approved for transport by air. D.O.T., I.A.T.A., F.A.A. and C.A.B certified

Model Number:

PS-4100

Nominal voltage:

4V

Capacity @20HR (AH):

10.00 Ah

Capacity @10HR (AH):

9.30 Ah

Weight:

1.1kg / 2.5lbs

Case:

ABS UL94:HB (flame retardant UL94:V0 version also available)

Dimensions

Length:

4.01'' / 102mm

Width:

1.97'' / 50mm

Height:

3.70'' / 94mm

F1
Terminal Info

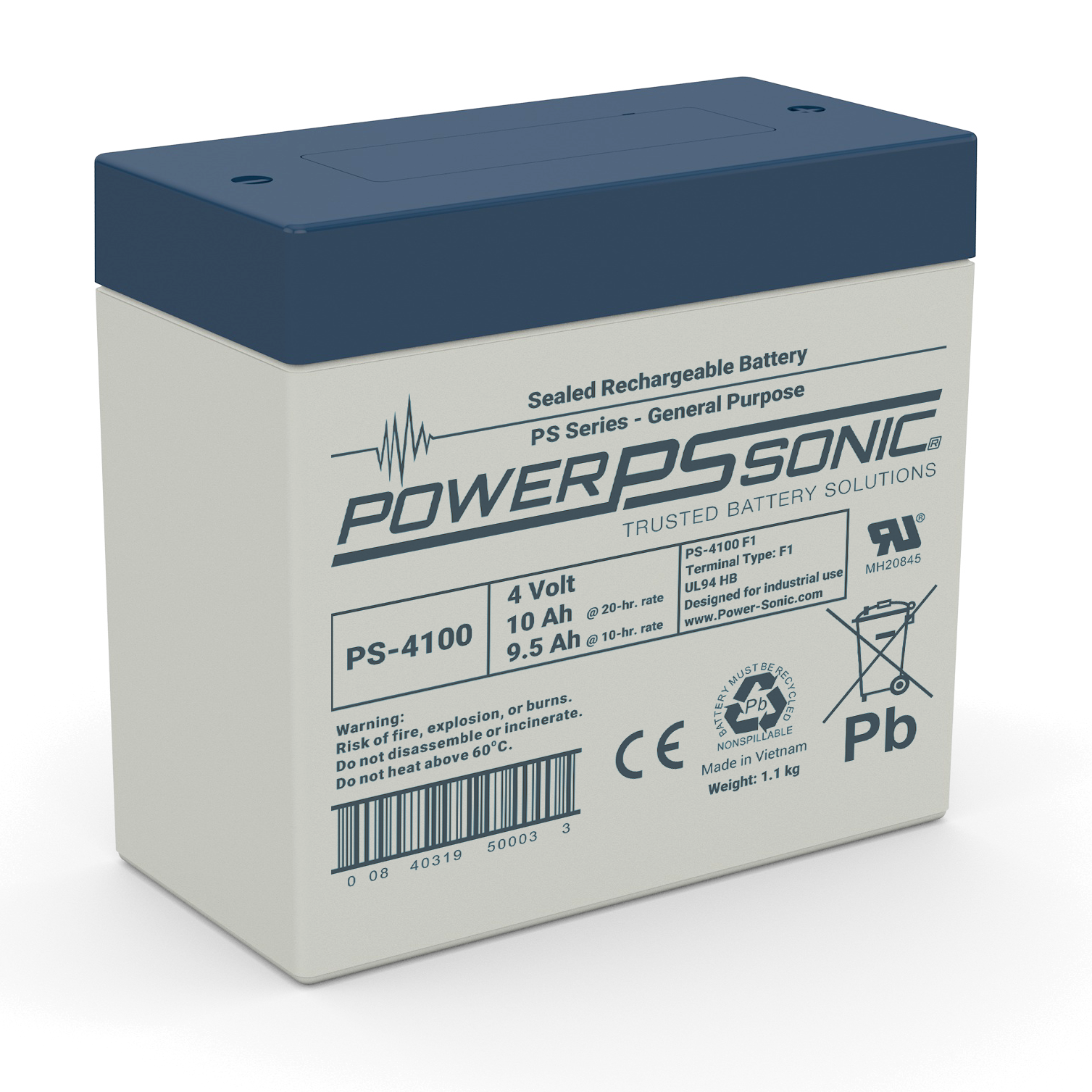

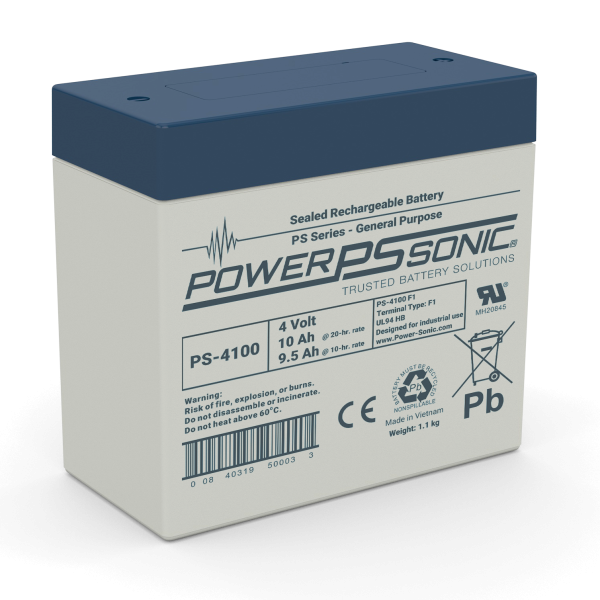

Product Image

MODEL SUMMARY

The PS-4100 is part of our PS range of sealed lead acid batteries (often referred to as VRLA) which have been specifically designed for general purpose and standby applications. The 4V 10.00Ah battery offers excellent performance in a wide range of applications including security and fire systems, medical devices, emergency lighting and UPS systems.

All Power Sonic batteries are subject to stringent quality controls through every step of the manufacturing process ensuring both consistency and reliability.
