PS-12100

PS Series

Where to buy
Download Technical Data Sheet

Features

Specifications

Terminal Options

  • 12V 12Ah General purpose VRLA battery
  • Absorbent Glass Mat (AGM) technology for superior performance
  • Power and volume ratio yielding unrivalled energy density
  • Valve regulated, maintenance free spill proof construction
  • Rugged impact resistant ABS case and cover
  • 5 year design life
  • Approved for transport by air. D.O.T., I.A.T.A., F.A.A. and C.A.B certified

Model Number:

PS-12100

Nominal voltage:

12V

Capacity @20HR (AH):

12.00 Ah

Capacity @10HR (AH):

11.50 Ah

Weight:

3.7kg / 8.1lbs

Case:

ABS UL94:HB (flame retardant UL94:V0 version also available)

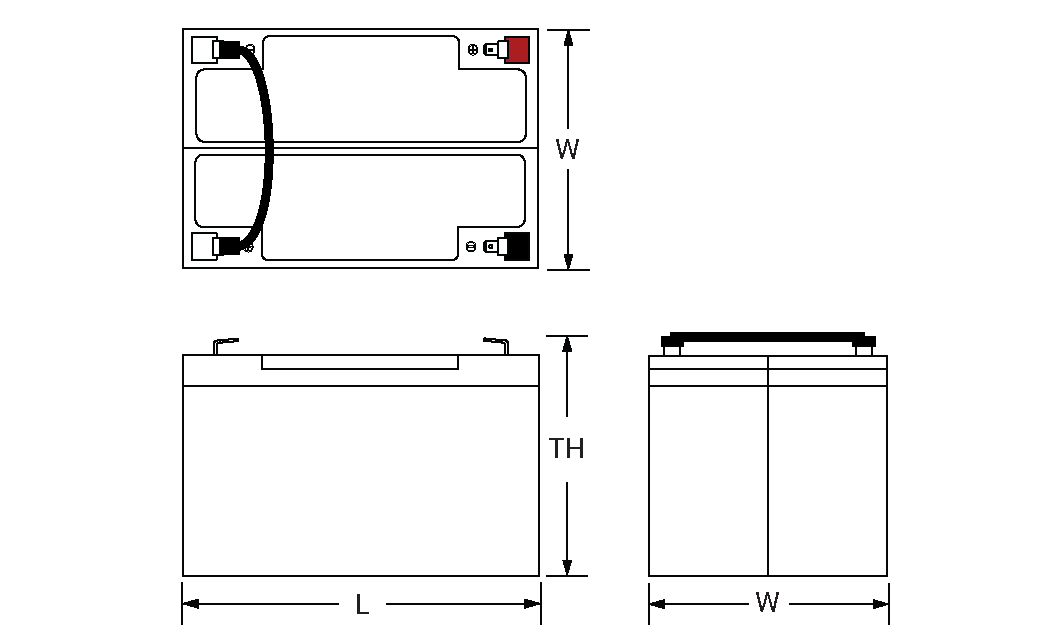

Dimensions

Length:

5.94'' / 151mm

Width:

4.02'' / 102mm

Height:

3.70'' / 94mm

Recommended Charger:

F1
Terminal Info
F2
Terminal Info
  • 12V 12Ah General purpose VRLA battery
  • Absorbent Glass Mat (AGM) technology for superior performance
  • Power and volume ratio yielding unrivalled energy density
  • Valve regulated, maintenance free spill proof construction
  • Rugged impact resistant ABS case and cover
  • 5 year design life
  • Approved for transport by air. D.O.T., I.A.T.A., F.A.A. and C.A.B certified

Model Number:

PS-12100

Nominal voltage:

12V

Capacity @20HR (AH):

12.00 Ah

Capacity @10HR (AH):

11.50 Ah

Weight:

3.7kg / 8.1lbs

Case:

ABS UL94:HB (flame retardant UL94:V0 version also available)

Dimensions

Length:

5.94'' / 151mm

Width:

4.02'' / 102mm

Height:

3.70'' / 94mm

Recommended Charger:

F1
Terminal Info
F2
Terminal Info

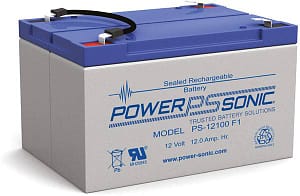

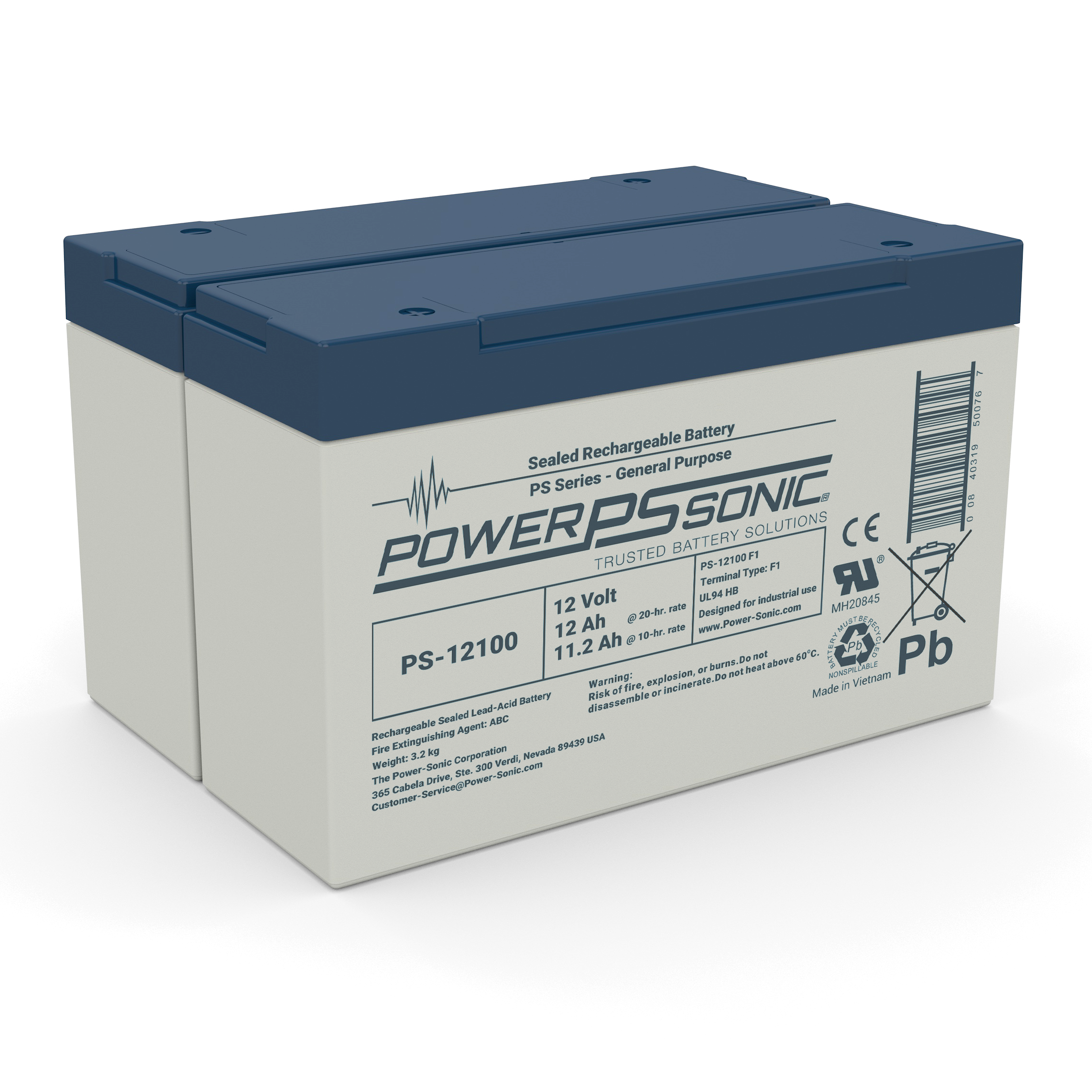

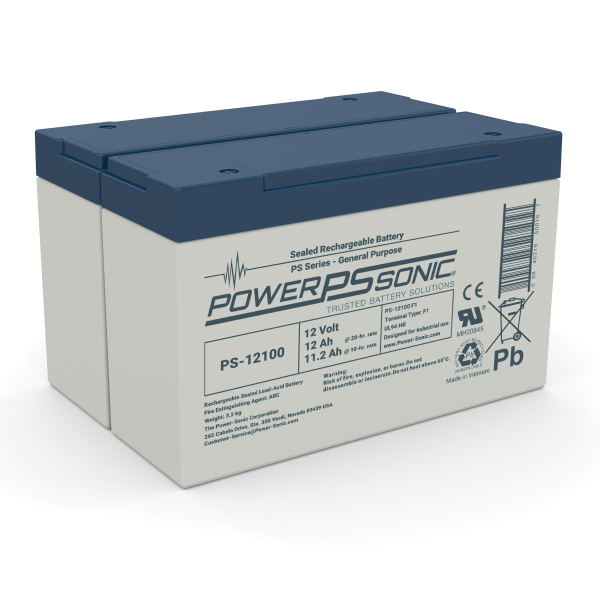

Product Image

MODEL SUMMARY

The PS-12100 is part of our PS range of sealed lead acid batteries (often referred to as VRLA) which have been specifically designed for general purpose and standby applications. The 12V 12.00Ah battery offers excellent performance in a wide range of applications including security and fire systems, medical devices, emergency lighting and UPS systems.

All Power Sonic batteries are subject to stringent quality controls through every step of the manufacturing process ensuring both consistency and reliability.

certificate certificate
