PHR-12550

PHR Series

Where to buy
Download Technical Data Sheet

Features

Specifications

Terminal Options

  • 12V 155Ah High-rate VRLA battery
  • Designed specifically for high-rate discharge (UPS) applications
  • Valve regulated, spill proof construction allows safe operation in any orientation (excluding continuous inverted use)
  • Precision plate pasting for higher consistency with 100% load testing to ensure uniform capacity
  • Lead-calcium alloy grids and the use of high purity lead account for superior shelf-life characteristics
  • Rugged impact resistant ABS case and cover flame retardant to UL94:V-0
  • Approved for transport by air. D.O.T., I.A.T.A., F.A.A. and C.A.B certified

Model Number:

PHR-12550

Nominal voltage:

12V

Capacity @20HR (AH):

155.00 Ah

Capacity @10HR (AH):

143.00 Ah

Weight:

42.4kg / 93.5lbs

Case:

UL94:V0 Flame retardant plastic

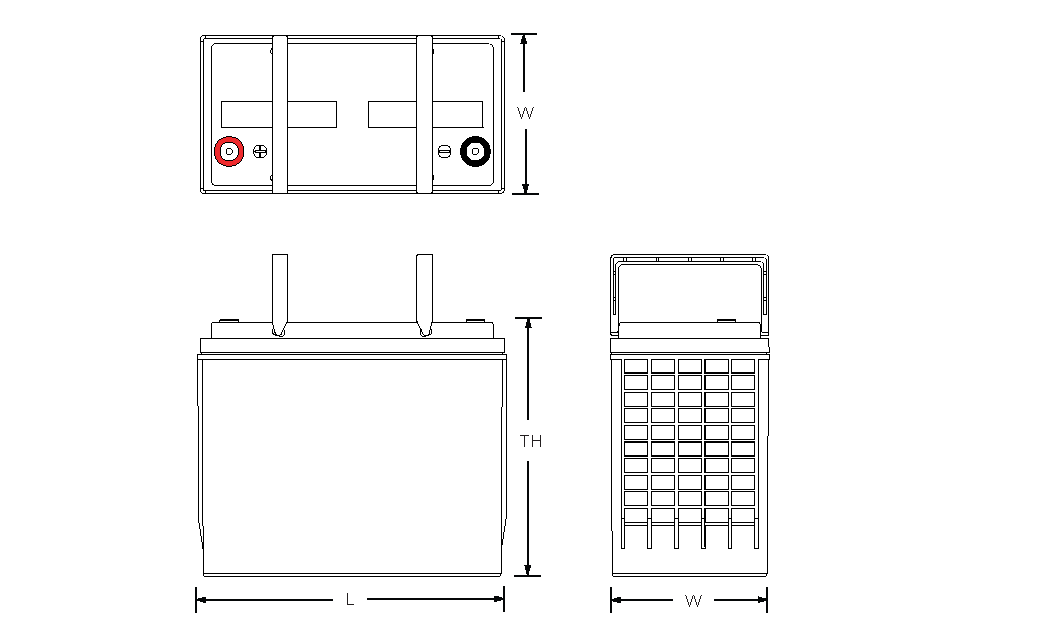

Dimensions

Length:

13.19'' / 355mm

Width:

6.77'' / 172mm

Height:

10.83'' / 275mm

Recommended Charger:

T8
Terminal Info
  • 12V 155Ah High-rate VRLA battery
  • Designed specifically for high-rate discharge (UPS) applications
  • Valve regulated, spill proof construction allows safe operation in any orientation (excluding continuous inverted use)
  • Precision plate pasting for higher consistency with 100% load testing to ensure uniform capacity
  • Lead-calcium alloy grids and the use of high purity lead account for superior shelf-life characteristics
  • Rugged impact resistant ABS case and cover flame retardant to UL94:V-0
  • Approved for transport by air. D.O.T., I.A.T.A., F.A.A. and C.A.B certified

Model Number:

PHR-12550

Nominal voltage:

12V

Capacity @20HR (AH):

155.00 Ah

Capacity @10HR (AH):

143.00 Ah

Weight:

42.4kg / 93.5lbs

Case:

UL94:V0 Flame retardant plastic

Dimensions

Length:

13.19'' / 355mm

Width:

6.77'' / 172mm

Height:

10.83'' / 275mm

Recommended Charger:

T8
Terminal Info

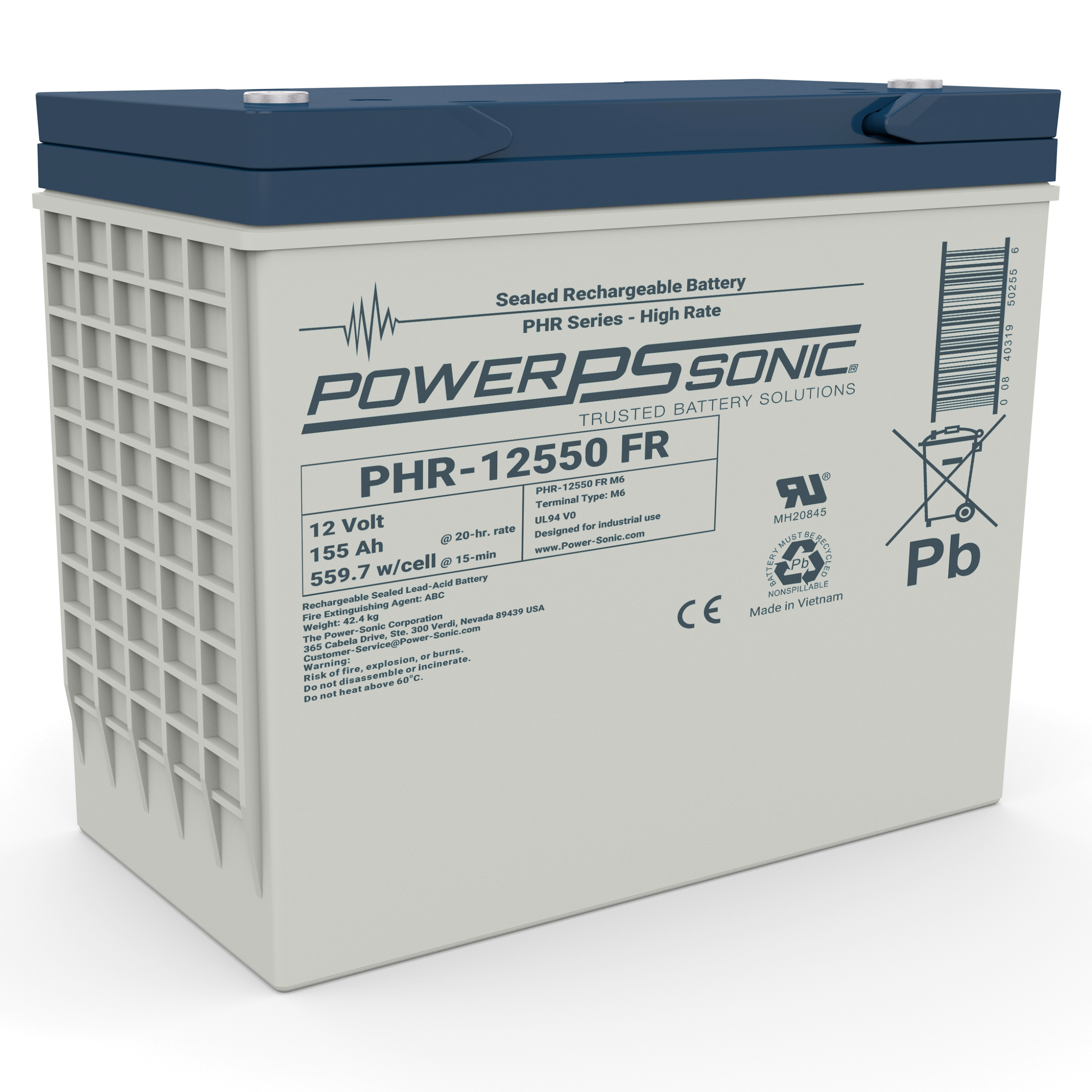

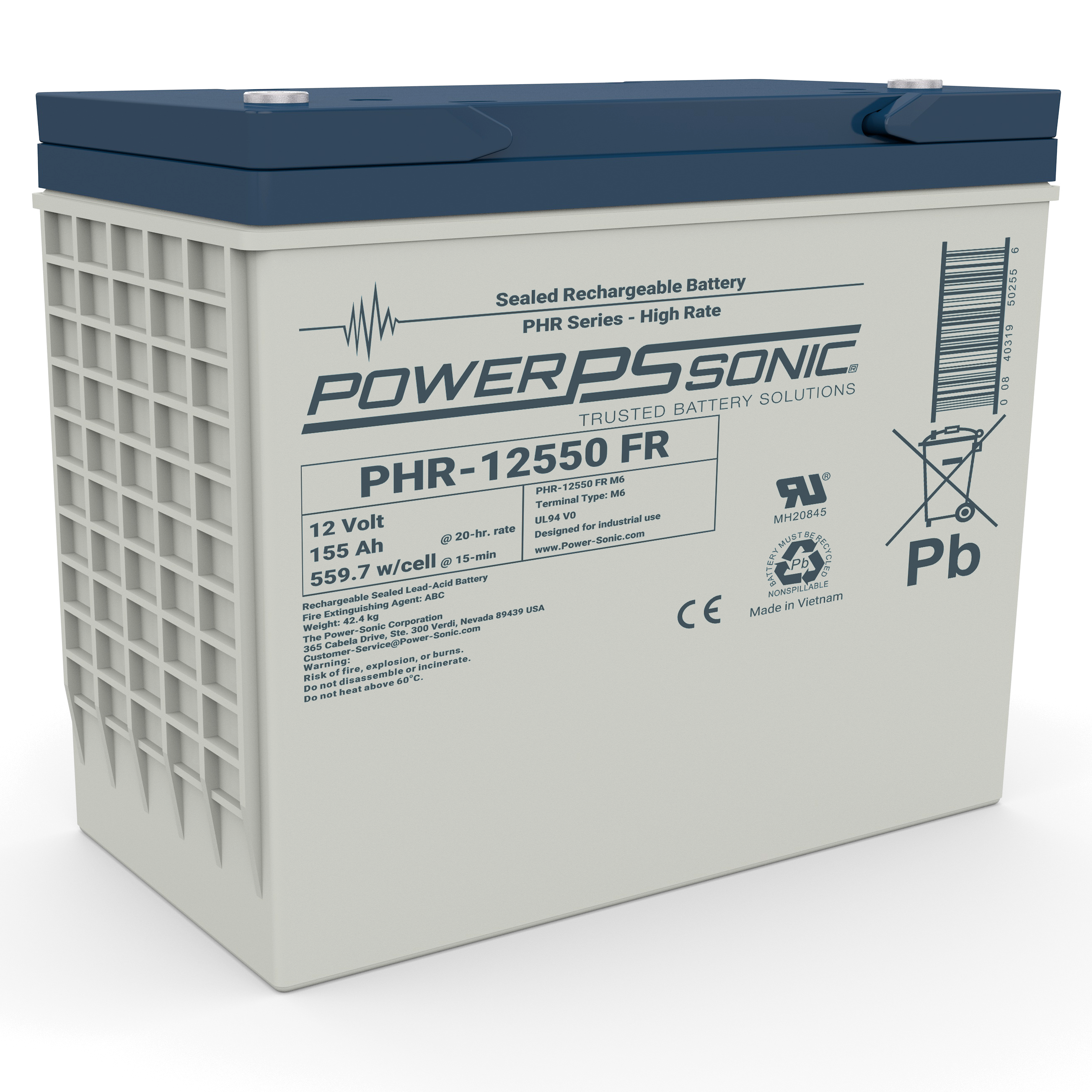

Product Image

MODEL SUMMARY

The PHR-12550 is part of our PHR high-rate range of sealed lead acid batteries (often referred to as high-rate VRLA) which have been specifically designed for high-rate discharge applications. The 12V 539.00w/cell high-rate battery has superb high-rate discharge characteristics that ensure reliable performance in UPS applications for up to 10 years.

All Power Sonic batteries are subject to stringent quality controls through every step of the manufacturing process ensuring both consistency and reliability.

certificate certificate
