PG-12V6

PG Series

Where to buy
Download Technical Data Sheet

Features

Specifications

Terminal Options

  • 12V 5.8Ah Long service life VRLA battery
  • Absorbent Glass Mat (AGM) technology for superior performance
  • Superb high-rate discharge characteristics ensures reliable performance in UPS and telecom applications
  • Proven valve regulated technology that guarantees safe operation without maintenance
  • Rugged impact resistant ABS case and cover
  • 6 - 9 year design life
  • Approved for transport by air. D.O.T., I.A.T.A., F.A.A. and C.A.B certified

Model Number:

PG-12V6

Nominal voltage:

12V

Capacity @20HR (AH):

5.80 Ah

Capacity @10HR (AH):

5.58 Ah

Weight:

1.9kg / 4.2lbs

Case:

ABS UL94:HB (flame retardant UL94:V0 version also available)

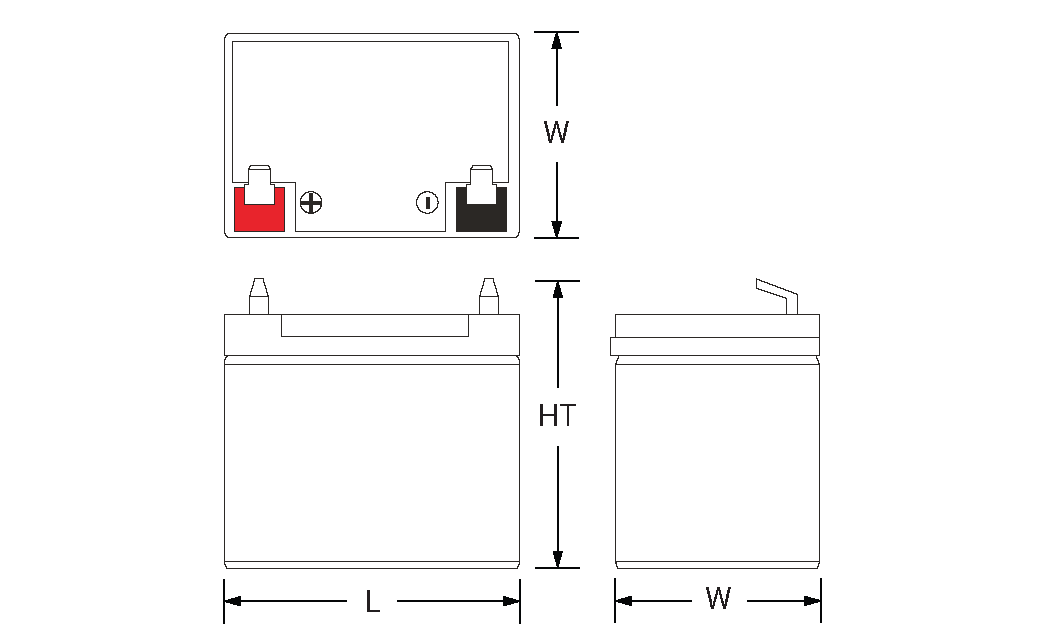

Dimensions

Length:

3.54'' / 90mm

Width:

2.76'' / 70mm

Height:

3.98'' / 101mm

Recommended Charger:

PSC-121000ACX PSC-121000-PC

F2
Terminal Info
  • 12V 5.8Ah Long service life VRLA battery
  • Absorbent Glass Mat (AGM) technology for superior performance
  • Superb high-rate discharge characteristics ensures reliable performance in UPS and telecom applications
  • Proven valve regulated technology that guarantees safe operation without maintenance
  • Rugged impact resistant ABS case and cover
  • 6 - 9 year design life
  • Approved for transport by air. D.O.T., I.A.T.A., F.A.A. and C.A.B certified

Model Number:

PG-12V6

Nominal voltage:

12V

Capacity @20HR (AH):

5.80 Ah

Capacity @10HR (AH):

5.58 Ah

Weight:

1.9kg / 4.2lbs

Case:

ABS UL94:HB (flame retardant UL94:V0 version also available)

Dimensions

Length:

3.54'' / 90mm

Width:

2.76'' / 70mm

Height:

3.98'' / 101mm

Recommended Charger:

PSC-121000ACX PSC-121000-PC

F2
Terminal Info

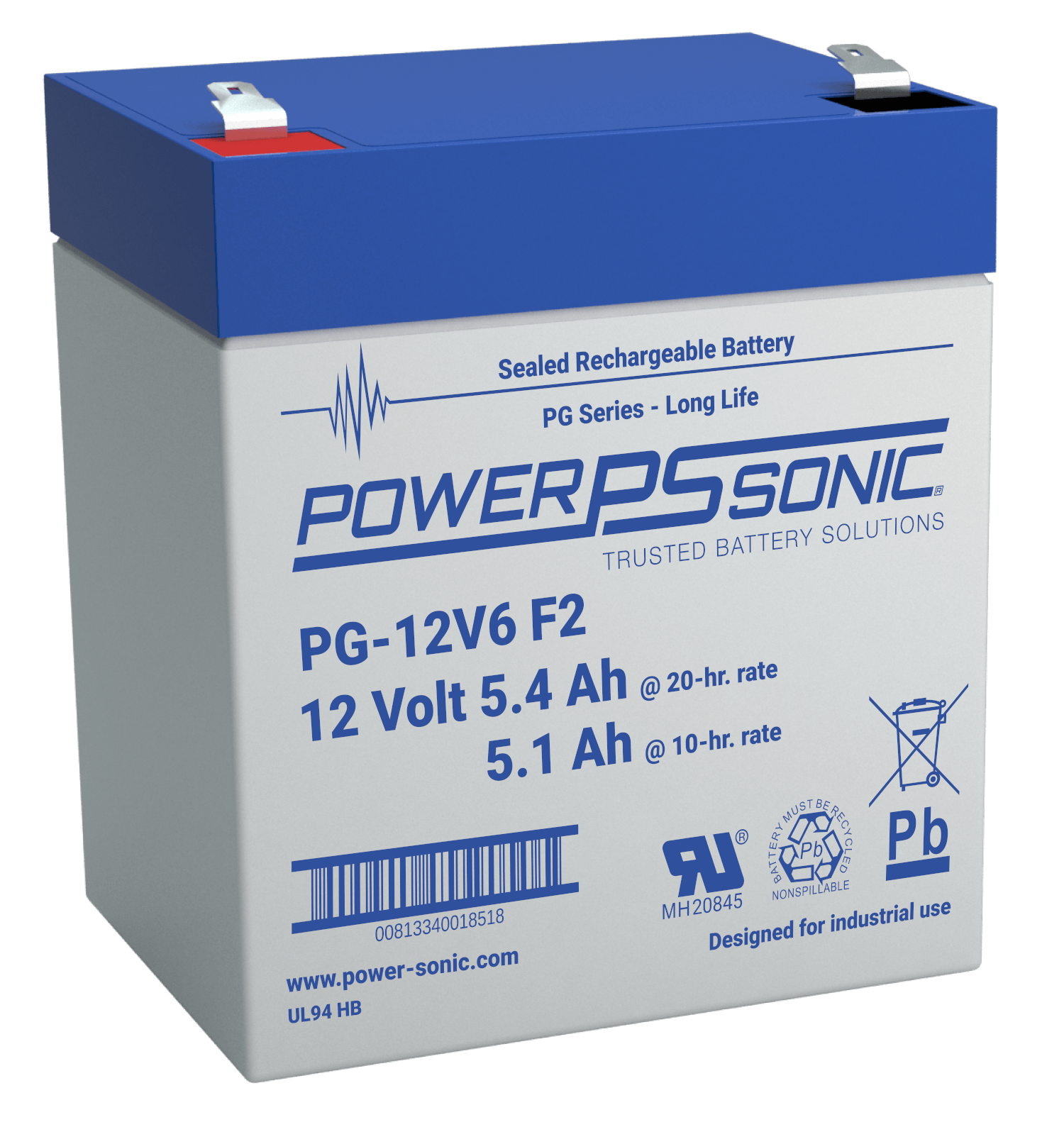

Product Image

MODEL SUMMARY

The PG-12V6 is part of our PG range of long life sealed lead acid batteries (often referred to as VRLA) which have been designed specifically for critical standby power applications that require a longer design life. The 12V 5.80Ah battery offers reliable performance in a large range of applications including UPS, telecommunications and renewable energy.

Power Sonic’s cutting-edge manufacturing and process control combined with meticulous quality assurance procedures guarantee consistent and dependable performance.

certificate certificate

CAN'T FIND WHAT YOU WERE LOOKING FOR?

Get in touch with us!

Related Downloads

PDF

PG Summary Specification Sheet_US

Download
PDF

Product Warranty - Lead Acid

Download
PDF

How To Charge Lead Acid Batteries

Download
View all downloads at the Resource Center

RELATED PRODUCTS

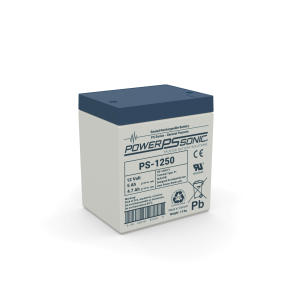

PS-1250
