PG-12V28H

The PG-12V28H is part of our Long Life AGM range. This 12.0V and 26.0Ah battery provides long cycle life and deep discharge capability. Features include AGM Technology, SLA ABS Case, SLA Maintenance Free, and Thick Plate 10-12yr Design Life. These batteries are commonly used in Emergency Lighting, Fire Security, Solar, Telecomm, UPS, Utility, and Wind requiring extended service life and dependable standby power. Backed by decades of expertise, Power-Sonic batteries are subject to stringent quality controls through each step of the manufacturing process to ensure compliance, performance consistency, and reliability.
Request A QuoteGet Datasheet
Product Group Marketing Paragraph
Long life AGM batteries engineered for maximum reliability, extended float life, and reduced replacement costs. Advanced plate design and premium materials provide dependable backup power for security, emergency lighting, and critical standby systems.
Long Term Storage Statement
PG series batteries may be stored for up to 6 months at 25C (77F) and then a freshening charge is required. For higher temperatures the time interval will be shorter.

Operating Temperature
Range _ Charge:
4°F - 104°F
(20°C)
(40°C)
Operating Temperature
Range _ Discharge:
5°F - 122°F
(15°C)
(50°C)
Operating Temperature
Range _ Recommended:
5°F - 104°F
(15°C)
(40°C)
Dimensional Tolerances:
+/- 0.08 in. (+/- 2mm) for length, width, and height dimensions
Additional Specifications:
For the detailed technical specifications please refer to the model's technical document
Group Description:

Designed for extended maintenance-free operation, VRLA batteries deliver consistent performance across wide temperature ranges and proven reliability for critical standby applications.

Product Description:

The PG-12V28H is part of our Long Life AGM range. This 12.0V and 26.0Ah battery provides long cycle life and deep discharge capability. Features include AGM Technology, SLA ABS Case, SLA Maintenance Free, and Thick Plate 10-12yr Design Life. These batteries are commonly used in Emergency Lighting, Fire Security, Solar, Telecomm, UPS, Utility, and Wind requiring extended service life and dependable standby power. Backed by decades of expertise, Power-Sonic batteries are subject to stringent quality controls through each step of the manufacturing process to ensure compliance, performance consistency, and reliability.

Charging Description:

Cycle Applications: Apply constant voltage charge at 2.35VPC – 2.45VPC (14.1 to 14.7 volts for 12V Monobloc) at 20°C. The initial charging current should be set at less than C/5 Amps. Switch to float charge when the current falls to a 3% capacity rate to avoid overcharging. Stand-By or "Float" Service: Apply constant voltage charge of 2.25VPC – 2.30VPC (13.5 to 13.8 volts for 12V Monobloc) at 20°C. When held at this voltage, the battery will seek its own current level and maintain itself in a fully charged condition. Temperature Compensation: Charging voltage for both cyclic and stand-by applications should be regulated in relation to ambient temperature. As temperature rises, charging voltage should be reduced to prevent overcharge and increased as the temperature falls to avoid undercharge. For further charging information, including temperature compensation factors, see the Power-Sonic Technical Manual.

Expand
Voltage 12.0
Number of Series Cells 6.0
Stored Energy (Wh) 336.0
Rated Capacity 20hr 28.0
Rated Capacity 10hr 26.0
Rated Capacity 5hr 24.15
Rated Capacity 1hr 17.6
Capacity Voltage 20hr 10.5
Capacity Voltage 10hr 10.5
Capacity Current 10hr 2.6
Capacity Voltage 5hr 10.2
Capacity Voltage 1hr 9.6
Cycle Constant Voltage Range 14.00V – 14.70V
Float Constant Voltage Range 13.50V-13.80V-18mV/℃
Initial Charging Current (A) 8.4
Capacity Current 5hr 4.83
Capacity Current 1hr 17.6
Max Continuous Discharge Current (A) 420.0
Internal Resistance (mΩ) 14.0
Capacity Current 20hr 1.4
Short Circuit Current (A) 700.0
Recommended Chargers PSC-122000ACX
Operating Humidity 20-90 % RH @ 0- 40°C (non-condensing)
Charge Voltage (25C) - Equalization Charge 2.35V-2.40V/cell -4mV/cell/℃

Constant Current Discharge Table:
VoltageOverTime5min10min15min20min30min45min1h1.5h2h3h4h5h6h8h10h20h
1.60V/cell98.067.654.344.432.222.417.613.19.967.456.024.944.283.312.681.44
1.65V/cell93.365.553.043.431.522.017.312.99.847.365.944.894.233.282.661.42
1.67V/cell92.464.952.543.131.421.917.212.89.777.315.924.874.223.272.651.42
1.70V/cell89.363.151.242.230.821.517.012.79.667.245.864.834.183.242.631.41
1.75V/cell85.360.749.641.130.021.016.612.59.527.145.784.764.133.212.61.4
1.80V/cell80.958.348.039.929.320.616.312.29.357.035.74.74.083.182.571.38
1.85V/cell75.355.045.738.428.420.115.912.09.186.915.624.634.023.132.541.37
Expand
Constant Power Discharge Table:
VoltageOverTime5min10min15min20min30min45min1h1.5h2h3h4h5h6h8h10h20h
1.60V/cell174.9123.7101.183.561.042.633.725.219.314.511.89.698.46.545.312.88
1.65V/cell169.7121.499.382.160.042.033.324.919.014.311.69.68.326.485.262.85
1.67V/cell168.1120.298.481.559.741.833.124.818.914.311.69.568.36.465.242.84
1.70V/cell163.8117.596.380.158.841.332.624.518.814.111.59.498.236.415.212.82
1.75V/cell158.0113.893.878.257.640.532.224.218.514.011.49.378.156.355.162.8
1.80V/cell151.6110.291.376.556.439.831.623.818.313.811.29.278.076.295.112.77
1.85V/cell142.4104.787.674.054.938.931.023.418.013.611.19.157.956.215.052.74
Expand

Charge Voltage (25C) - Float Charge : 2.25V-2.30V/cell -3mV/cell/℃

Recommended Charge Current (C rate) : 0.1 C-0.3C

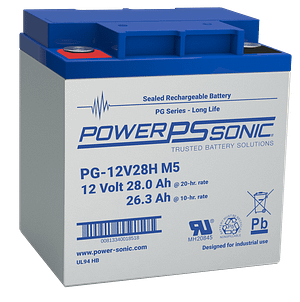

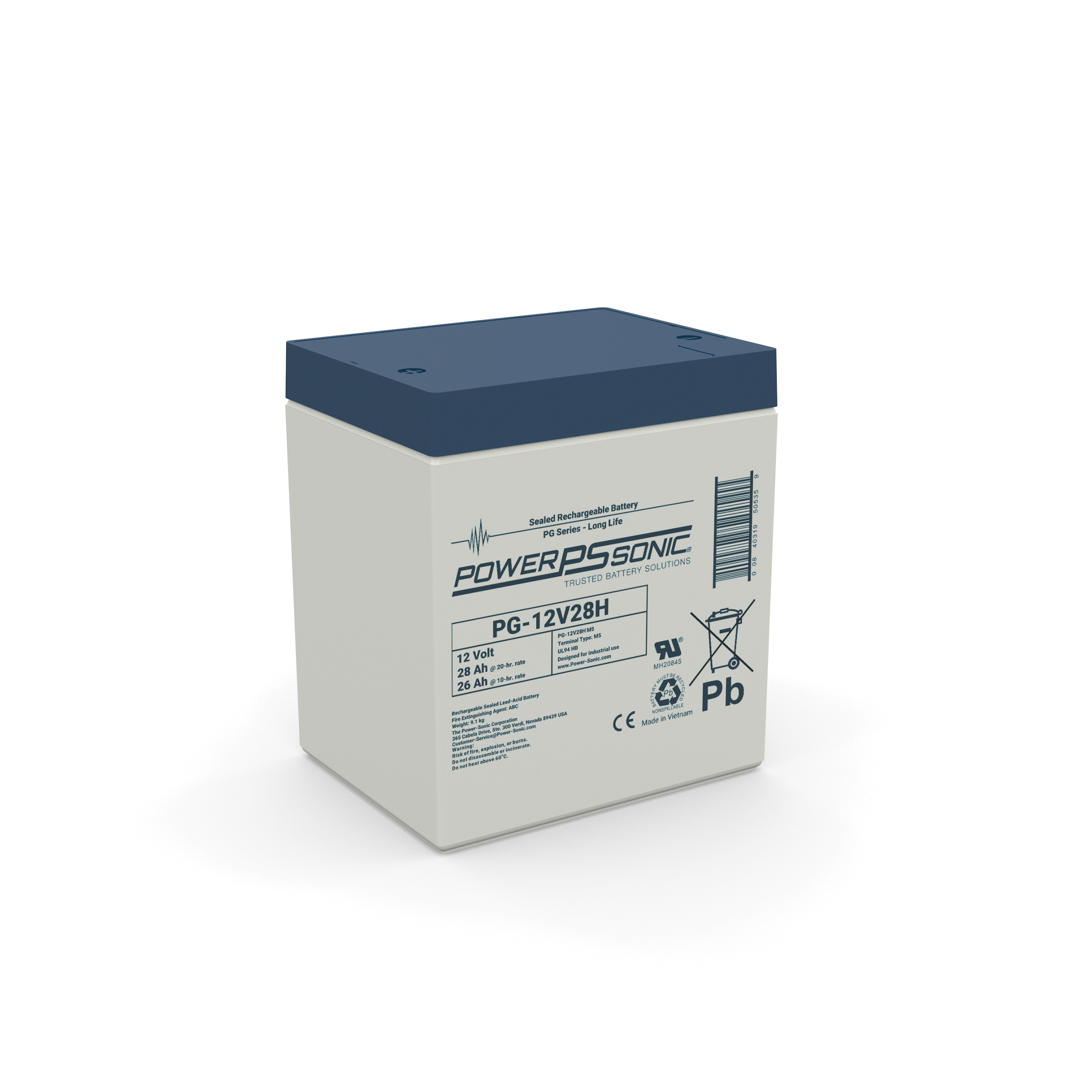

Image Featured
PG-12V28H
Case Material ABS (UL94 HB or V-0 optional)
Minimum Weight (kg) 9.1
Minimum Weight (lbs) 20.06
Length (in) 6.46
Length (mm) 164.0
Width (in) 4.92

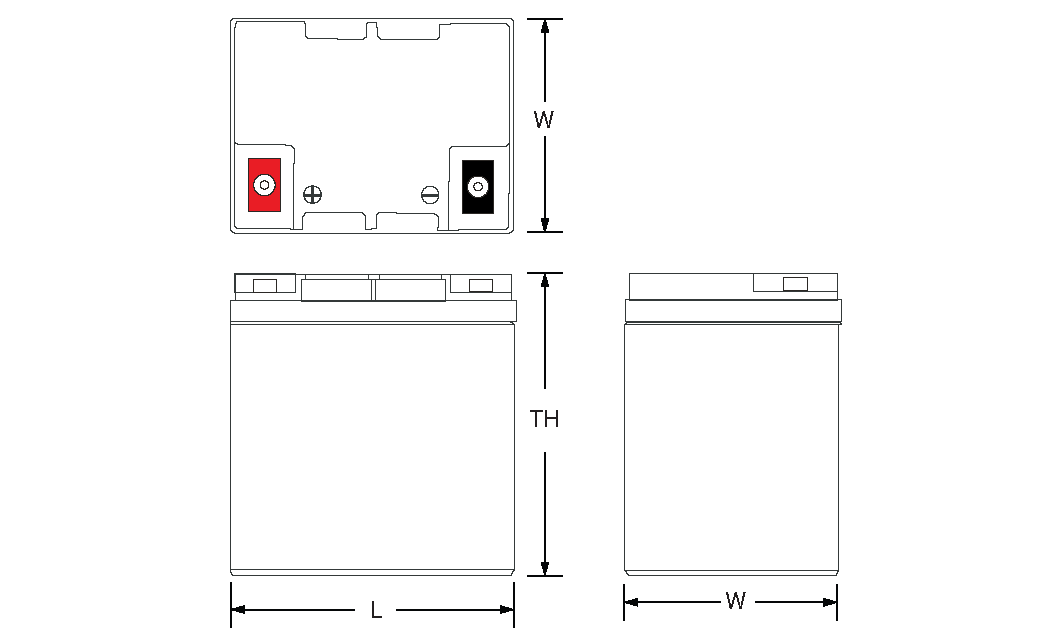

Dimensions Image
PG-12V28H
Width (mm) 125.0
Height (in) 6.85
Height (mm) 174.0
Height Over Terminal (in) 6.85
Height Over Terminal (mm) 174.0

CE
CE

CE marking confirms a product meets EU safety, health, and environmental protection standards for battery and energy systems.

Conflict Minerals

Conflict-free mineral certification ensuring ethical sourcing and transparent supply chain for responsible production.

Extended Minerals

Extended mineral reporting meets global supply chain transparency standards for responsible and ethical sourcing practices.

IEC60896
IEC60896

IEC 60896 standard ensures stationary lead-acid batteries meet safety, performance, and float charge application requirements.

ISO9001:2015
ISO9001:2015

ISO 9001:2015 certification ensures consistent quality management and manufacturing standards for energy storage products.

PFAS

PFAS-free certification verifying environmentally responsible manufacturing of batteries and energy storage technologies.

Prop65
Prop65

California Proposition 65 compliant, providing consumer safety through reduced chemical exposure in battery manufacturing.

REACH

REACH compliant with EU chemical safety standards ensuring restricted substances are controlled in all battery components.

RoHS

RoHS compliance ensures restriction of hazardous substances in electrical, electronic, and battery-powered products.

SLA Transport
SLA Transport

Sealed lead-acid batteries classified UN2800 non-spillable, certified safe for air, sea, and ground transport worldwide.

SVHC

SVHC compliant with EU REACH regulations for Substances of Very High Concern used in electrical and energy storage products.

TSCA

U.S. EPA TSCA compliance ensures toxic substances are regulated for safe manufacturing of batteries and electronic components.

UL 1989

UL 1989 certified for valve-regulated and vented lead-acid batteries used in UPS, emergency, and backup power applications.

Characteristic 1202808319 P1202806809001
Terminal Type M5 M5
VdS n n
Active on Web US y y
Active on Web EMEA y y
Terminal Image 1202808319 P1202806809001
SKU Battery PG-12V28H M5 PG-12V28H M5
  • PG-12V28H M5
  • PG-12V28H M5

Features and Documents

AGM Technology

Absorbent Glass Mat (AGM) technology for superior performance, service life, and reliability

SLA ABS Case

Rugged vibration and impact resistant ABS case and cover

SLA Maintenance Free

Proven valve regulated technology that guarantees safe operation without maintenance or refilling

Thick Plate 10-12yr Design Life

Thick plate design and efficient gas recombination yield a service life of 10 – 12 years in standby mode

Graphs

Capacity Retention SLA

Capacity Retention SLA

Shelf life of SLA at various temperatures

PS Cycle Life

PS Cycle Life

Cycle life vs depth of discharge for the PS series

SLA Charging

SLA Charging

Charging characteristics for SLA

SLA Float Life 10YR

SLA Float Life 10YR

10 year float life vs. temperature for SLA
