PG-12V160

PG Series

Where to buy
Download Technical Data Sheet

Features

Specifications

Terminal Options

  • Long service life VRLA battery
  • Absorbent Glass Mat (AGM) technology for superior performance
  • Superb high-rate discharge characteristics ensures reliable performance in UPS and telecom applications
  • Proven valve regulated technology that guarantees safe operation without maintenance
  • Rugged impact resistant ABS case and cover
  • 10 - 12 year design life
  • Approved for transport by air. D.O.T., I.A.T.A., F.A.A. and C.A.B certified

Model Number:

PG-12V160

Nominal voltage:

12V

Capacity @20HR (AH):

166.00 Ah

Capacity @10HR (AH):

153.00 Ah

Weight:

46.7kg / 103.0lbs

Case:

ABS UL94:HB (flame retardant UL94:V0 version also available)

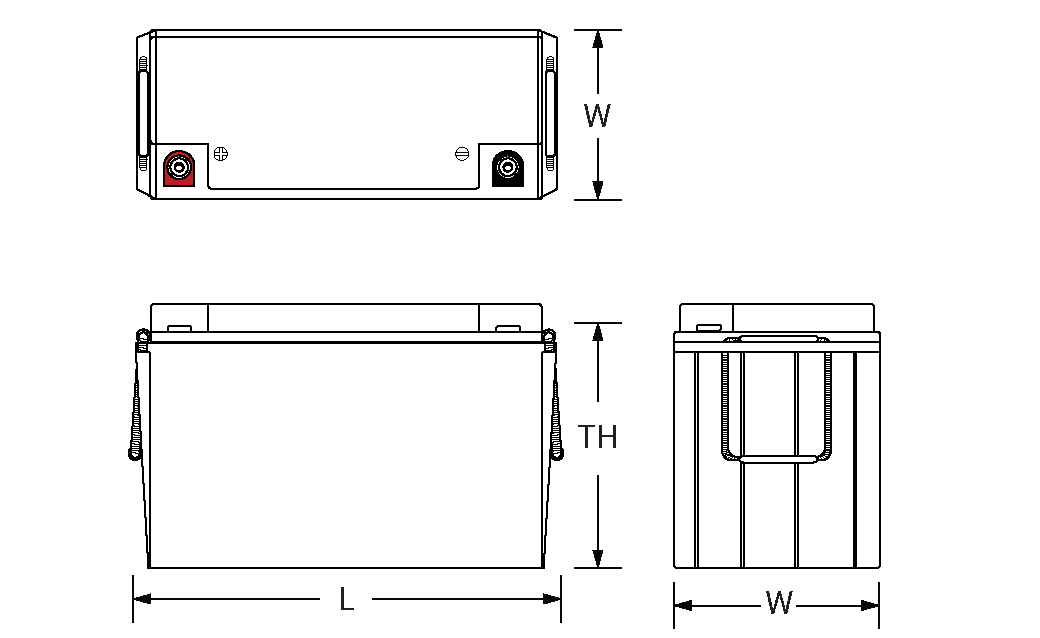

Dimensions

Length:

19.1'' / 485mm

Width:

6.7'' / 170mm

Height:

9.53'' / 242mm

Recommended Charger:

PSC-1220000-PC

T11
  • Long service life VRLA battery
  • Absorbent Glass Mat (AGM) technology for superior performance
  • Superb high-rate discharge characteristics ensures reliable performance in UPS and telecom applications
  • Proven valve regulated technology that guarantees safe operation without maintenance
  • Rugged impact resistant ABS case and cover
  • 10 - 12 year design life
  • Approved for transport by air. D.O.T., I.A.T.A., F.A.A. and C.A.B certified

Model Number:

PG-12V160

Nominal voltage:

12V

Capacity @20HR (AH):

166.00 Ah

Capacity @10HR (AH):

153.00 Ah

Weight:

46.7kg / 103.0lbs

Case:

ABS UL94:HB (flame retardant UL94:V0 version also available)

Dimensions

Length:

19.1'' / 485mm

Width:

6.7'' / 170mm

Height:

9.53'' / 242mm

Recommended Charger:

PSC-1220000-PC

T11
Product Image

MODEL SUMMARY

The PG-12V160 is part of our PG range of long life sealed lead acid batteries (often referred to as VRLA) which have been designed specifically for critical standby power applications that require a longer design life. The 12V 166.00Ah battery offers reliable performance in a large range of applications including UPS, telecommunications and renewable energy.

Power Sonic’s cutting-edge manufacturing and process control combined with meticulous quality assurance procedures guarantee consistent and dependable performance.

certificate certificate

CAN'T FIND WHAT YOU WERE LOOKING FOR?

Get in touch with us!

RELATED PRODUCTS

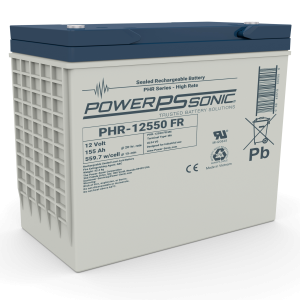

PHR-12550

PHR-12550

The PHR-12550 is part of our PHR high-rate range of sealed lead acid batteries (often referred to as high-rate VRLA) which have been specifically...

View PHR-12550

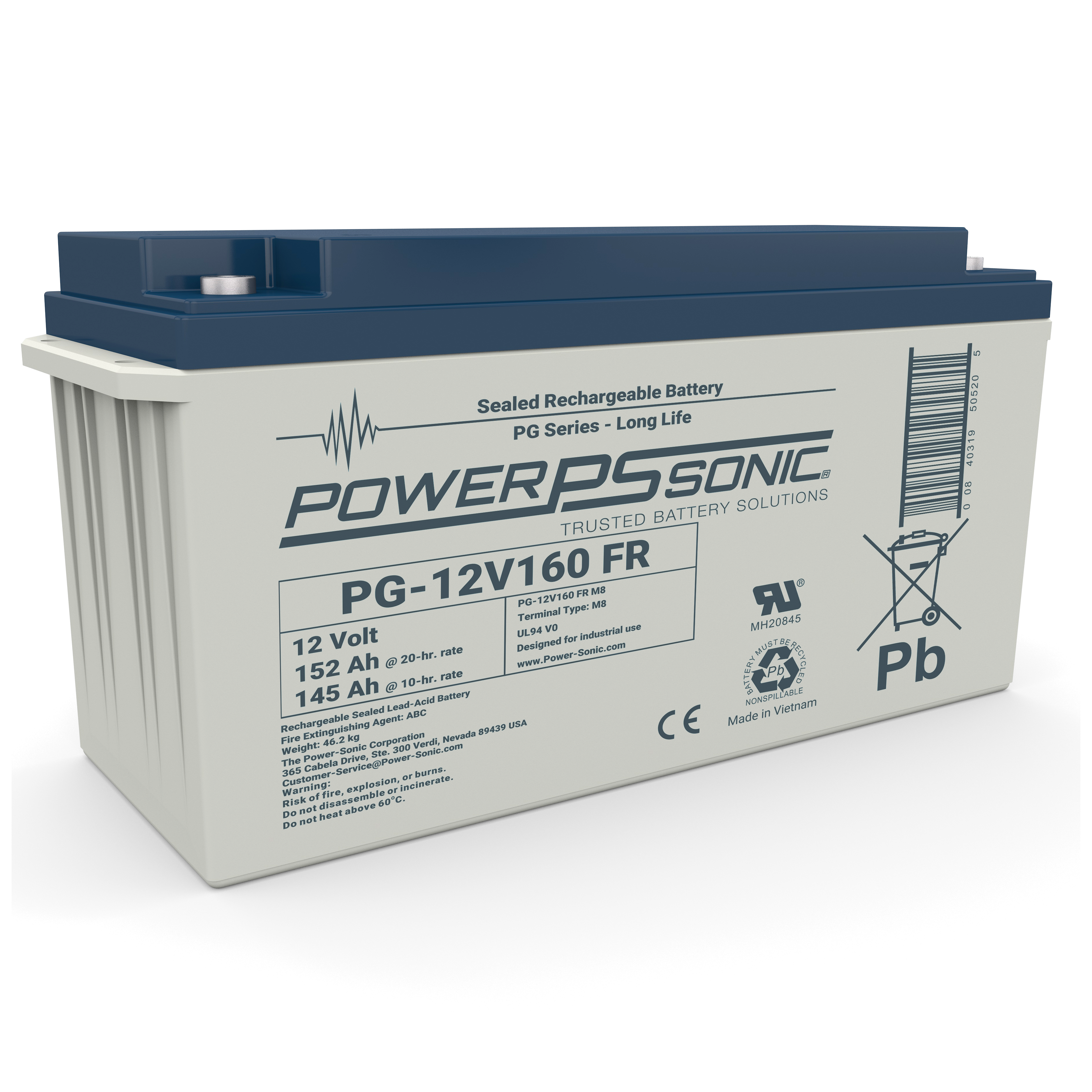

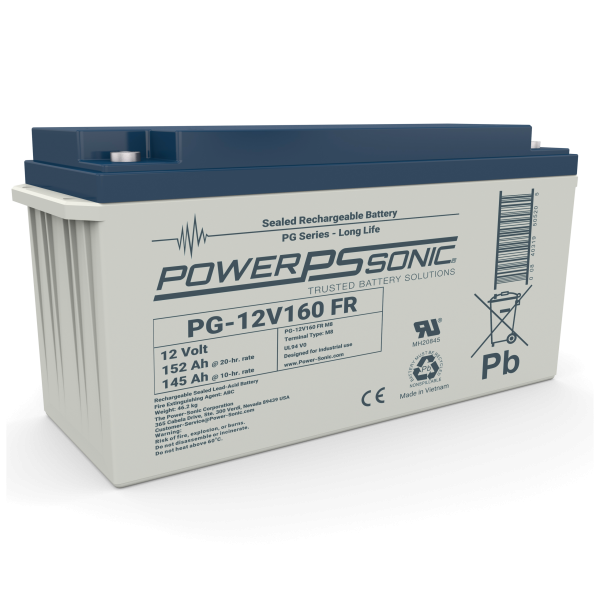

PG-12V160 FR
