PG-12V100

PG Series

Where to buy
Download Technical Data Sheet

Features

Specifications

Terminal Options

  • Long service life VRLA battery
  • Absorbent Glass Mat (AGM) technology for superior performance
  • Superb high-rate discharge characteristics ensures reliable performance in UPS and telecom applications
  • Proven valve regulated technology that guarantees safe operation without maintenance
  • Rugged impact resistant ABS case and cover
  • 10 - 12 year design life
  • Approved for transport by air. D.O.T., I.A.T.A., F.A.A. and C.A.B certified

Model Number:

PG-12V100

Nominal voltage:

12V

Capacity @20HR (AH):

104.00 Ah

Capacity @10HR (AH):

100.00 Ah

Weight:

31.5kg / 69.5lbs

Case:

ABS UL94:HB (flame retardant UL94:V0 version also available)

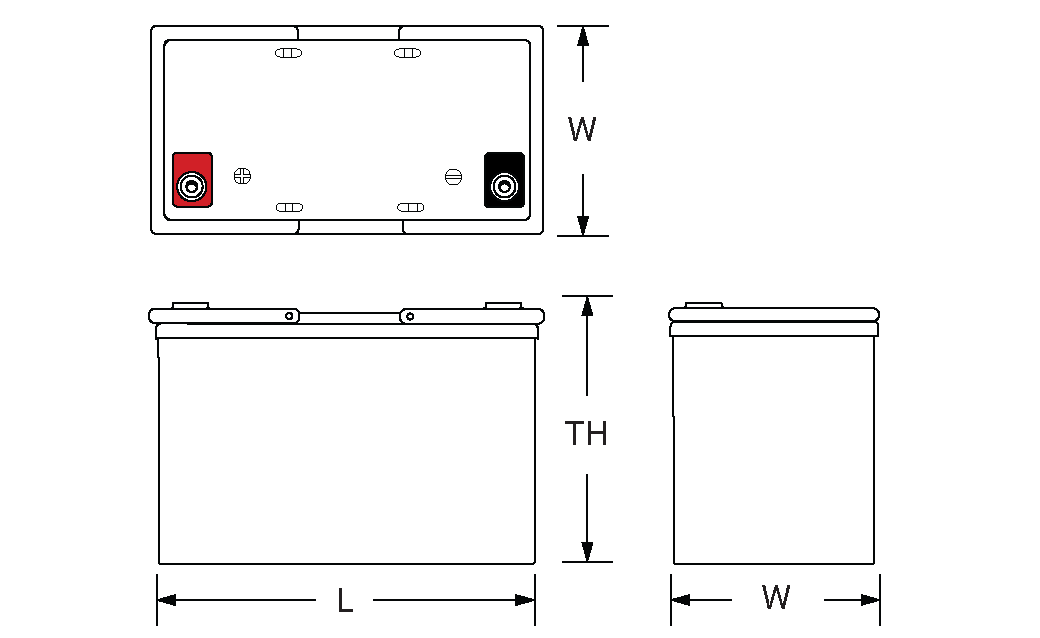

Dimensions

Length:

12.05'' / 306mm

Width:

6.61'' / 168mm

Height:

8.27'' / 210mm

Recommended Charger:

PSC-1220000-PC

T6
  • Long service life VRLA battery
  • Absorbent Glass Mat (AGM) technology for superior performance
  • Superb high-rate discharge characteristics ensures reliable performance in UPS and telecom applications
  • Proven valve regulated technology that guarantees safe operation without maintenance
  • Rugged impact resistant ABS case and cover
  • 10 - 12 year design life
  • Approved for transport by air. D.O.T., I.A.T.A., F.A.A. and C.A.B certified

Model Number:

PG-12V100

Nominal voltage:

12V

Capacity @20HR (AH):

104.00 Ah

Capacity @10HR (AH):

100.00 Ah

Weight:

31.5kg / 69.5lbs

Case:

ABS UL94:HB (flame retardant UL94:V0 version also available)

Dimensions

Length:

12.05'' / 306mm

Width:

6.61'' / 168mm

Height:

8.27'' / 210mm

Recommended Charger:

PSC-1220000-PC

T6
Product Image

MODEL SUMMARY

The PG-12V100 is part of our PG range of long life sealed lead acid batteries (often referred to as VRLA) which have been designed specifically for critical standby power applications that require a longer design life. The 12V 104.00Ah battery offers reliable performance in a large range of applications including UPS, telecommunications and renewable energy.

Power Sonic’s cutting-edge manufacturing and process control combined with meticulous quality assurance procedures guarantee consistent and dependable performance.

certificate certificate

CAN'T FIND WHAT YOU WERE LOOKING FOR?

Get in touch with us!

RELATED PRODUCTS

PHR-12350

PHR-12350

The PHR-12350 is part of our PHR high-rate range of sealed lead acid batteries (often referred to as high-rate VRLA) which have been specifically...

View PHR-12350
PDC-121000

PDC-121000

The PDC-121000 is part of our PDC range of deep cycle sealed lead acid batteries (often referred to as VRLA) which have been designed specifically to...

View PDC-121000
PS-121000S

PS-121000S

The PS-121000S is part of our PS range of sealed lead acid batteries (often referred to as VRLA) which have been specifically designed for general...

View PS-121000S

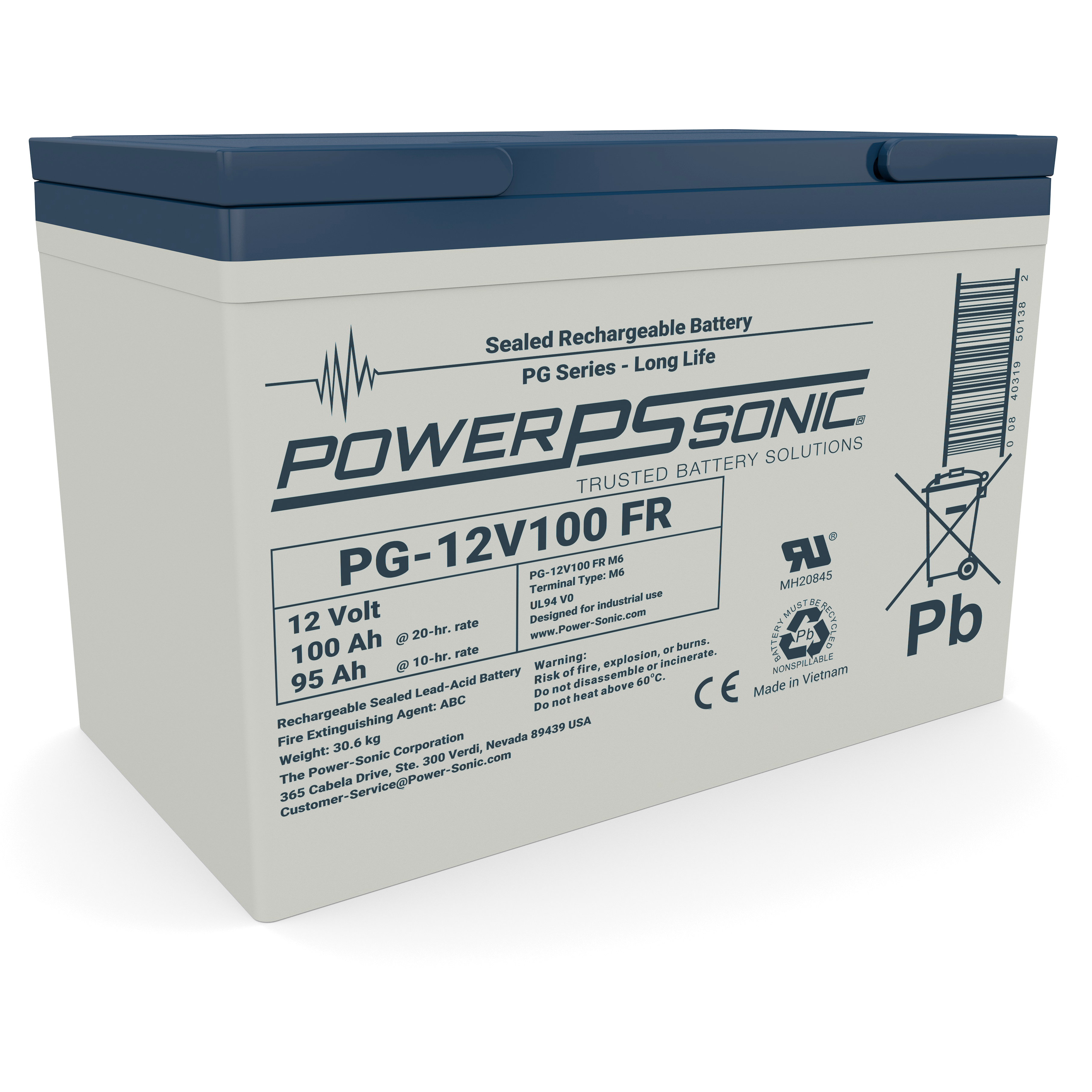

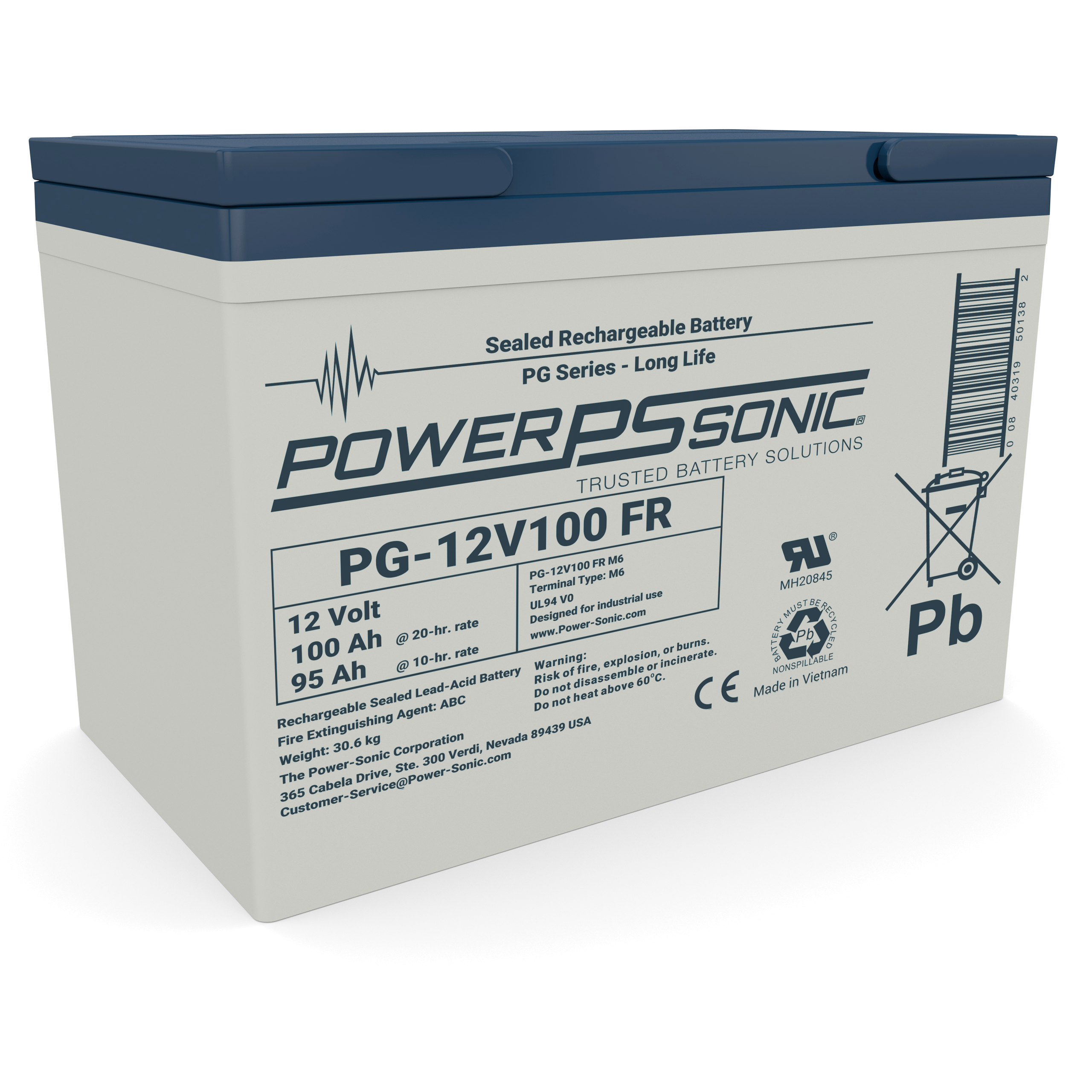

PG-12V100 FR
