PDC-1285

PDC Series

Where to buy
Download Technical Data Sheet

Features

Specifications

Terminal Options

  • 12V 8.50Ah Deep cycle VRLA battery
  • Specialized paste formulation for superior cyclic performance
  • Power/volume ratio yielding unrivalled energy density
  • Proven valve regulated technology that guarantees safe operation without maintenance
  • Rugged impact resistant ABS case and cover
  • Designed specifically for cyclic applications
  • Approved for transport by air. D.O.T., I.A.T.A., F.A.A. and C.A.B certified

Model Number:

PDC-1285

Nominal voltage:

12V

Capacity @20HR (AH):

8.50 Ah

Capacity @10HR (AH):

8.00 Ah

Weight:

2.8kg / 6.1lbs

Case:

ABS UL94:HB (flame retardant UL94:V0 version also available)

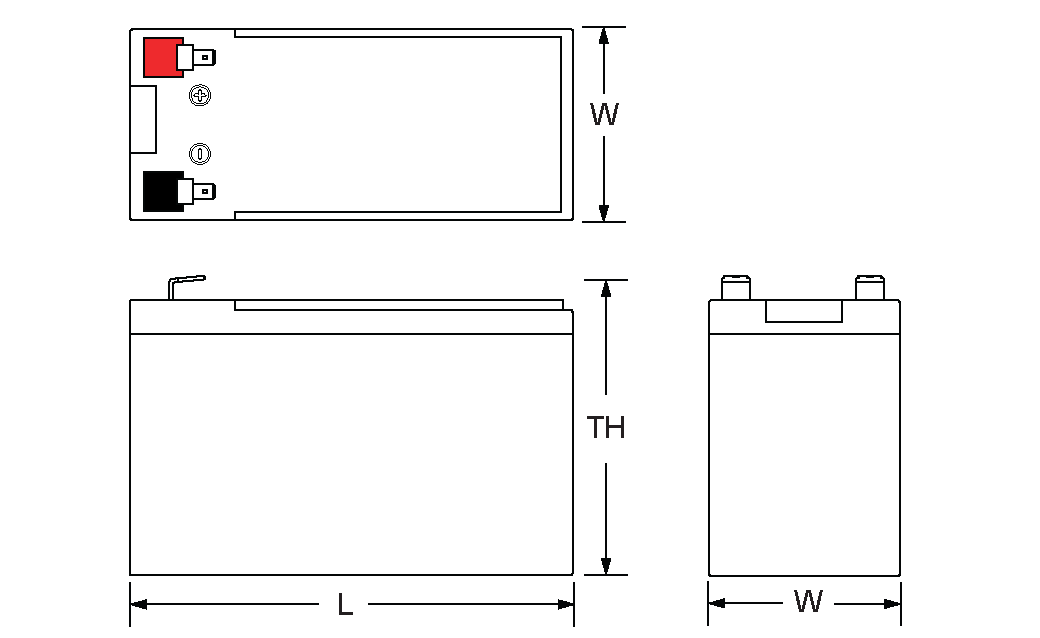

Dimensions

Length:

5.94'' / 151mm

Width:

2.56'' / 65mm

Height:

3.72'' / 94.5mm

Recommended Charger:

F2
Terminal Info
  • 12V 8.50Ah Deep cycle VRLA battery
  • Specialized paste formulation for superior cyclic performance
  • Power/volume ratio yielding unrivalled energy density
  • Proven valve regulated technology that guarantees safe operation without maintenance
  • Rugged impact resistant ABS case and cover
  • Designed specifically for cyclic applications
  • Approved for transport by air. D.O.T., I.A.T.A., F.A.A. and C.A.B certified

Model Number:

PDC-1285

Nominal voltage:

12V

Capacity @20HR (AH):

8.50 Ah

Capacity @10HR (AH):

8.00 Ah

Weight:

2.8kg / 6.1lbs

Case:

ABS UL94:HB (flame retardant UL94:V0 version also available)

Dimensions

Length:

5.94'' / 151mm

Width:

2.56'' / 65mm

Height:

3.72'' / 94.5mm

Recommended Charger:

F2
Terminal Info

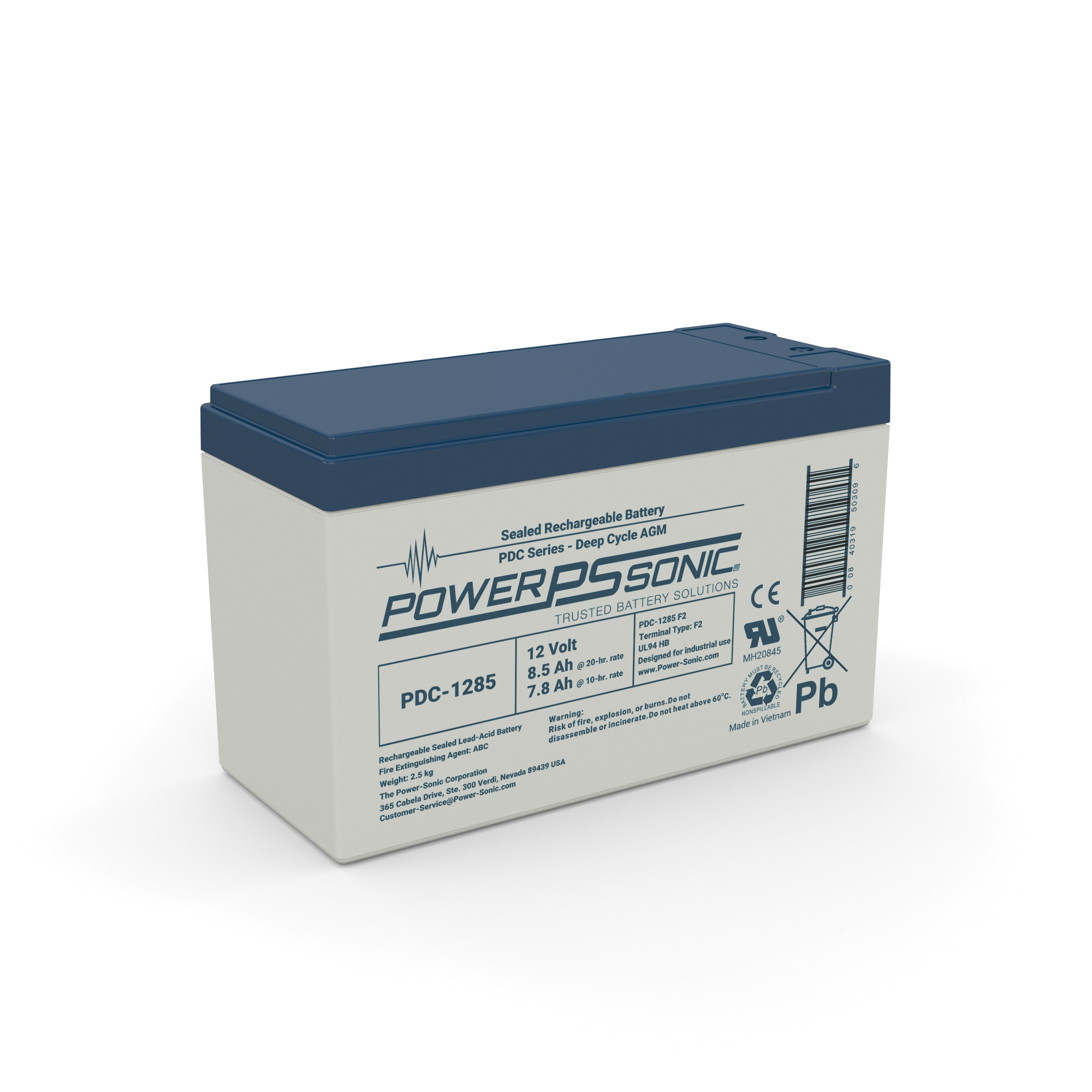

Product Image

MODEL SUMMARY

The PDC-1285 is part of our PDC range of deep cycle sealed lead acid batteries (often referred to as VRLA) which have been designed specifically to offer enhanced performance in cyclic applications. The 12V 8.50Ah deep cycle battery offers a high cycle life in a wide range of cyclic applications including mobility, medical, golf and renewable energy.

Power Sonic’s cutting-edge manufacturing and process control combined with meticulous quality assurance procedures guarantee consistent and dependable performance.
