PDC-122000

PDC Series

Where to buy
Download Technical Data Sheet

Features

Specifications

Terminal Options

  • Deep cycle VRLA battery
  • Specialized paste formulation for superior cyclic performance
  • Power/volume ratio yielding unrivalled energy density
  • Proven valve regulated technology that guarantees safe operation without maintenance
  • Rugged impact resistant ABS case and cover
  • Designed specifically for cyclic applications
  • Approved for transport by air. D.O.T., I.A.T.A., F.A.A. and C.A.B certified

Model Number:

PDC-122000

Nominal voltage:

12V

Capacity @20HR (AH):

214.00 Ah

Capacity @10HR (AH):

200.00 Ah

Weigth (Kg):

62.5

Case:

ABS UL94:HB (flame retardant UL94:V0 version also available)

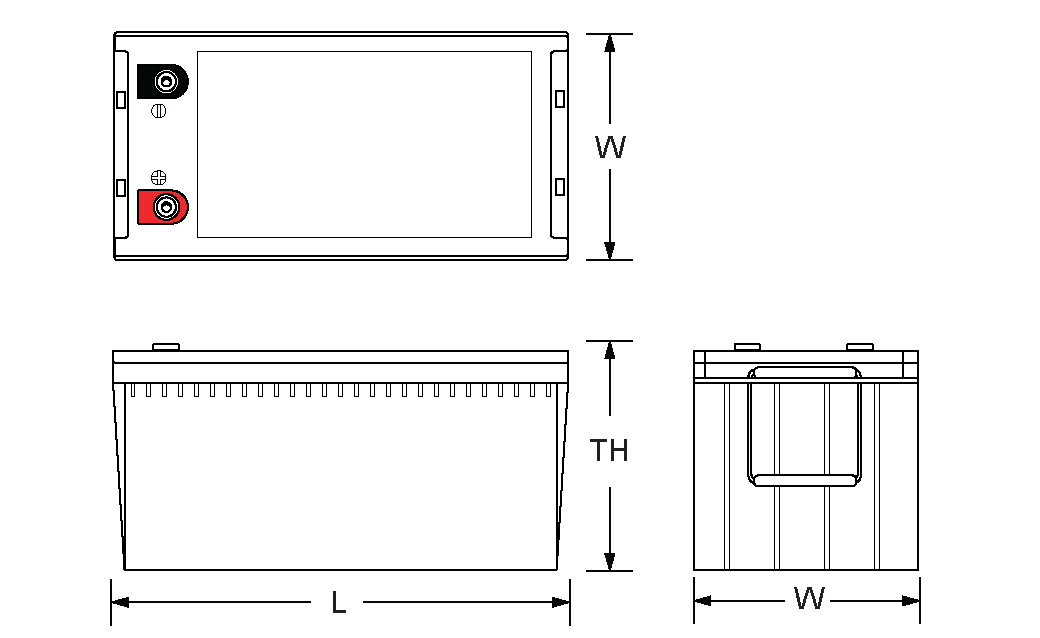

Dimensions

Length:

20.55'' / 522mm

Width:

9.45'' / 240mm

Height:

8.58'' / 218mm

Recommended Charger:

PSC-1210000A-C PSC-1220000-PC

B(T11)
  • Deep cycle VRLA battery
  • Specialized paste formulation for superior cyclic performance
  • Power/volume ratio yielding unrivalled energy density
  • Proven valve regulated technology that guarantees safe operation without maintenance
  • Rugged impact resistant ABS case and cover
  • Designed specifically for cyclic applications
  • Approved for transport by air. D.O.T., I.A.T.A., F.A.A. and C.A.B certified

Model Number:

PDC-122000

Nominal voltage:

12V

Capacity @20HR (AH):

214.00 AH

Weight (Kg):

62.5

Case:

ABS UL94:HB (flame retardant UL94:V0 version also available)

Dimensions

Length:

20.55'' / 522mm

Width:

9.45'' / 240mm

Height:

8.58'' / 218mm

Recommended Charger:

PSC-1210000A-C PSC-1220000-PC

B(T11)

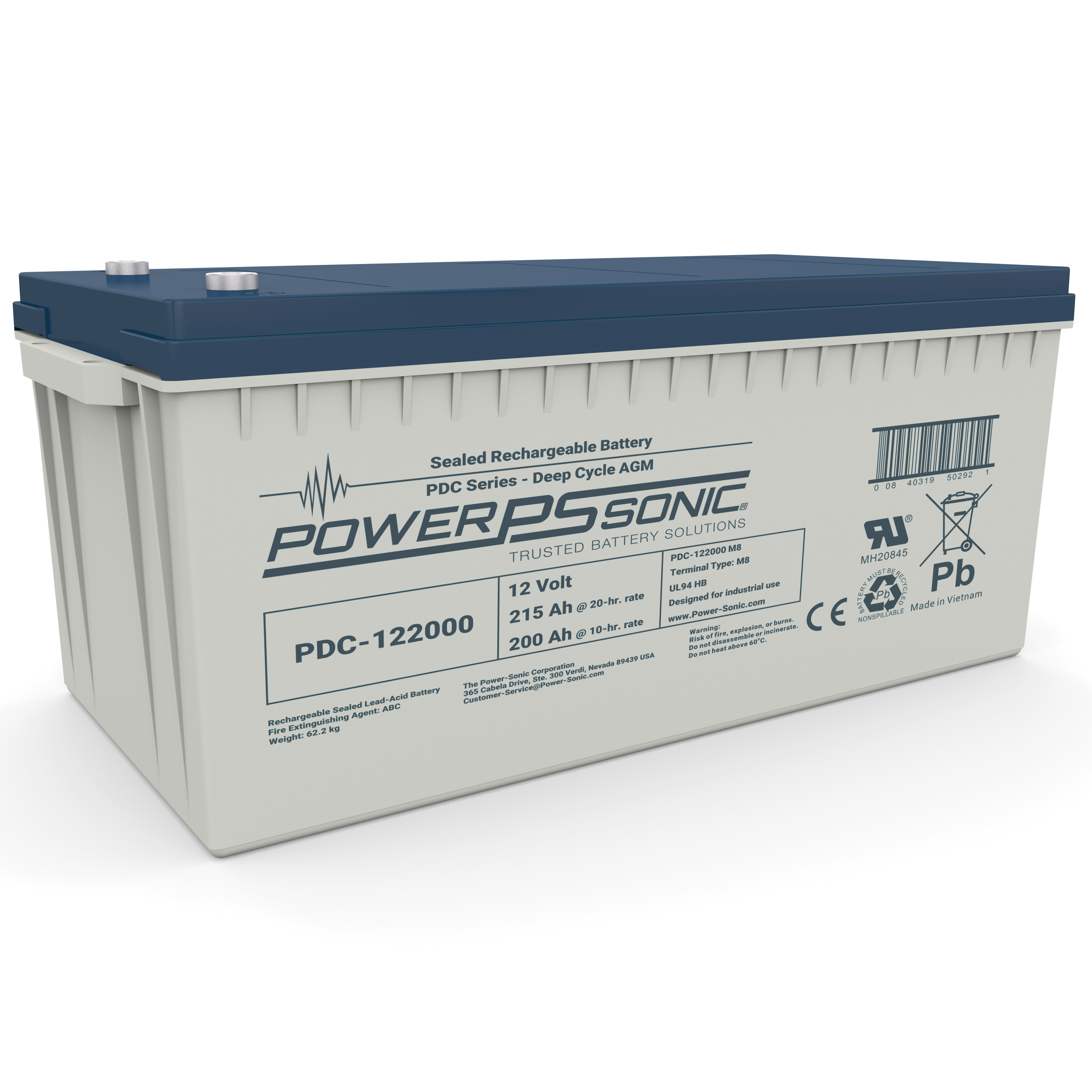

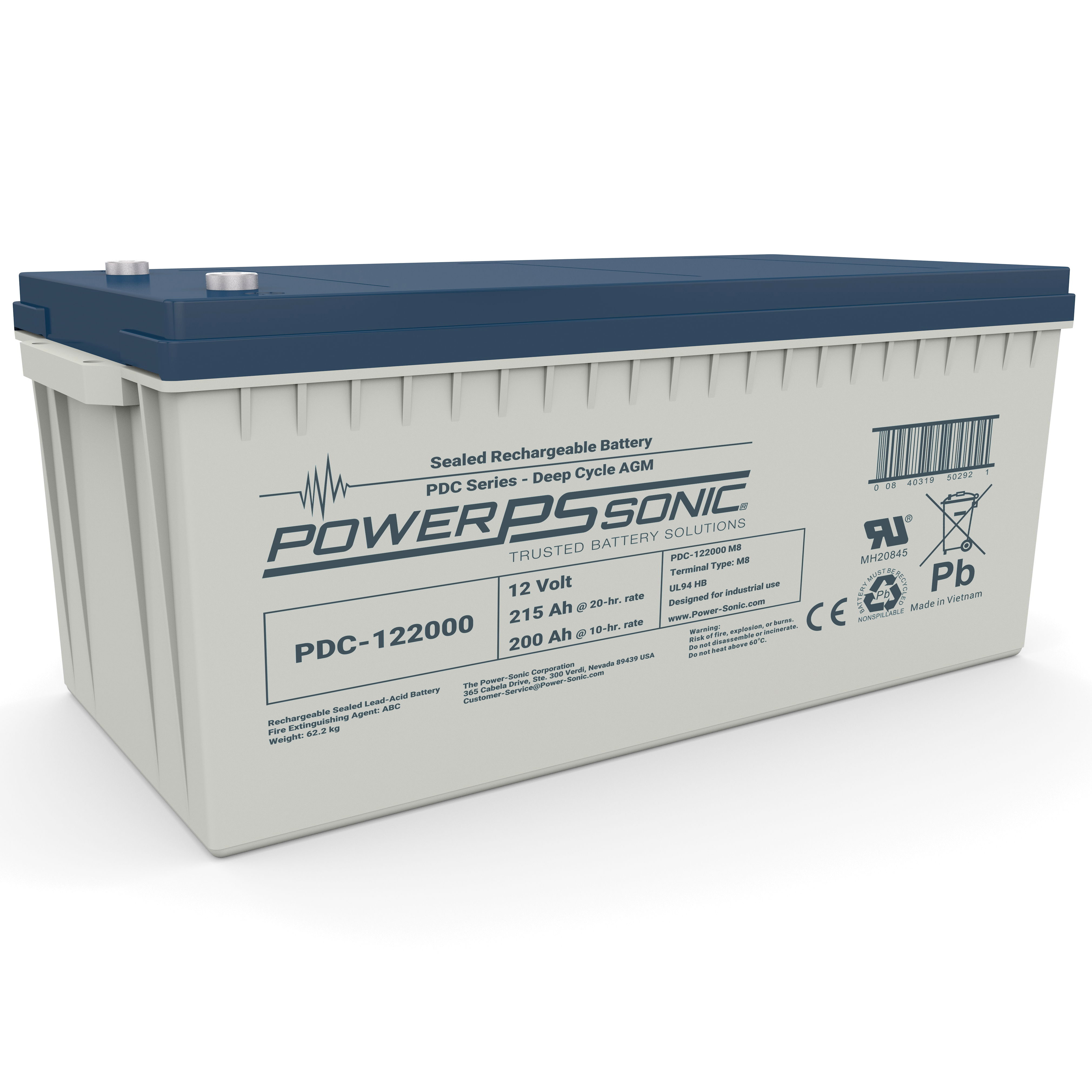

Product Image

MODEL SUMMARY

The PDC-122000 is part of our PDC range of deep cycle sealed lead acid batteries (often referred to as VRLA) which have been designed specifically to offer enhanced performance in cyclic applications. The 12V 214.00Ah deep cycle battery offers a high cycle life in a wide range of cyclic applications including mobility, medical, golf and renewable energy.

Power Sonic’s cutting-edge manufacturing and process control combined with meticulous quality assurance procedures guarantee consistent and dependable performance.
