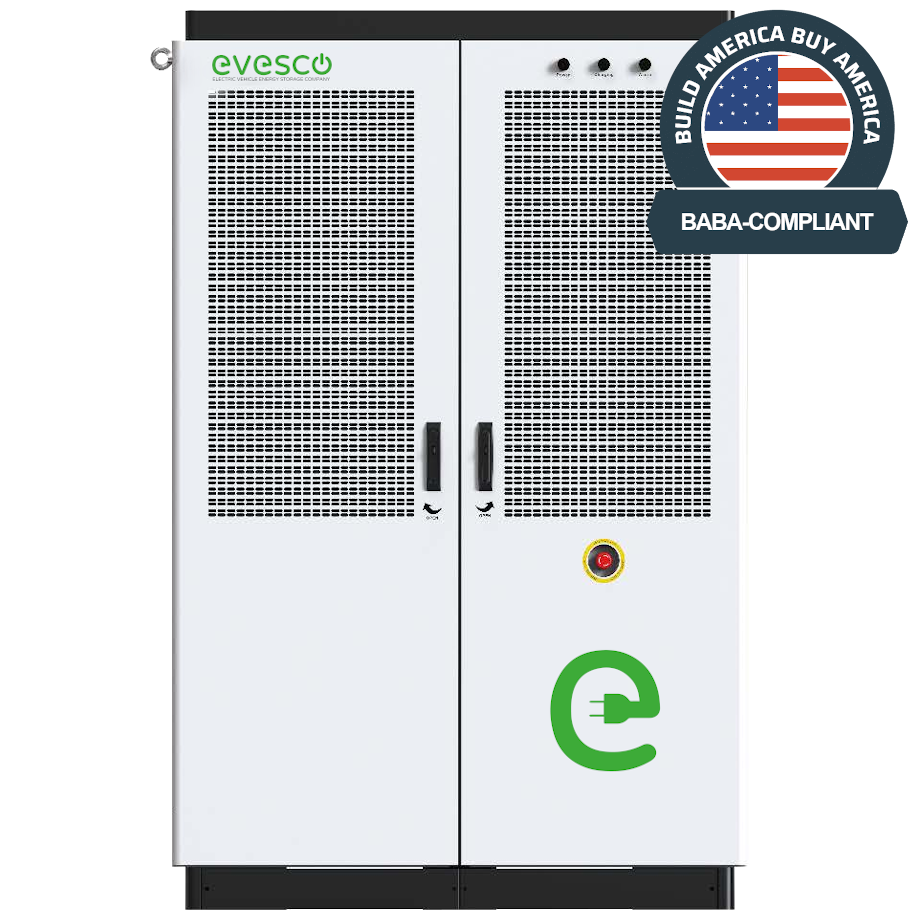

BABA-Compliant_EVPS_360__480_NA_distributed_charging_power_bank_front

EVPS-360/480-BA (NA)

BABA-compliant and built for scalable, high-performance EV charging deployments, the EVPS-360/480-BA (NA) delivers distributed DC fast charging from a centralized power bank, supporting federally funded, public, fleet, and commercial infrastructure projects. With system power available up to 360 kW, the EVPS-360/480-BA (NA) separates power delivery from the charging interface, allowing EVDS dispensers to be positioned where vehicles need them while keeping core power infrastructure centralized. Intelligent power distribution dynamically allocates available capacity across multiple charging bays, helping operators maximize site utilization, support simultaneous charging, and adapt output to changing vehicle demand. A 200–1000 VDC output range supports a broad range of current and next-generation EVs, while OCPP connectivity, multiple authentication options, and a 480 VAC (±10%) input supply simplify integration across diverse charging environments. Combining distributed charging flexibility with BABA compliance, the EVPS-360/480-BA (NA) provides the performance, scalability, and regulatory assurance required for long-term EV infrastructure investment.

Request A Quote Get Datasheet

Product Group Information

The EVPS BABA-compliant series is purpose-built to meet Build America Buy America (BABA) requirements for federally funded and infrastructure-backed EV charging projects. Designed around a centralized power architecture with distributed dispensers, the system enables efficient shared power delivery across multi-bay sites while aligning with domestic content and manufacturing mandates. Intelligent load balancing dynamically allocates power across multiple charging points to maximize utilization and throughput, supporting both light- and heavy-duty fleet operations. With scalable system configurations and a flexible dispenser layout, the EVPS BABA-compliant series is ideally suited for transit agencies, municipal fleets, logistics hubs, and public-sector deployments where compliance, performance, and long-term scalability are critical.

Warranty

3 years as standard

Operating Temperature Range:

-13°F (-25°C) to 122°F (50°C)

Group Information:

BABA–compliant distributed DC fast charging systems for large-scale fleet and depot deployments.

Product Description:

Expand

Frequency (Hz)	50/60
Electrical Protection	Input over voltage protection, output under voltage protection, short circuit protection, over current protection, over temperature protection, current surge protection.
Intelligent Power Sharing	Intelligent power distribution to up to three dispensers (six connectors) in 40 kW increments
Output Power (kW)	360
Output Voltage Range (Vdc)	200 - 1000
Input Voltage +/- 10% (Vac)	480
Efficiency	≥96%
Power Factor	≥0.99
THDI	≤5%

Product Image

Approximate Weight lbs (kg)	1785.0 (810.0)
Length in (mm)	39.4 (1000.0)
Width in (mm)	55.1 (1400.0)
Height in (mm)	82.7 (2100.0)

IP Rating	IP55
Emergency Stop Button	Yes
IK Rating	IK10
Operating Humidity	5% - 95% without condensation
Compatible Dispensers	EVDS-CCS1/CCS1-33-BA (NA), EVDS-CCS1/CCS1-53-BA (NA), EVDS-CCS1/CCS1-55-BA (NA)

Federally Funded Projects

Fleet Operations

Fuel Stations

Logistics and Distribution

Multi-Dwelling Units

Off-Highway

Ports & Airports

Public Charging Networks

Retail

Available in US:	y
Available in EMEA:	y
Output Max. Current (A):	1200
Supply Input:	3P + PE (No neutral)

Features and Documents

BABA-Compliant

Fully compliant with Build America Buy America (BABA), supporting US infrastructure initiatives without sacrificing quality or performance

Future-Proof VDC Output Range

Wide VDC output range supports different EV battery architectures, ensuring compatibility with current and next-generation electric vehicles

High Power Output

Delivers up to 700A, with continuous charging at 500A, ideal for heavy-duty EVs needing stable, high-speed performance

Intelligent Power Distribution

Intelligent load balancing dynamically allocates power across dispensers based on usage, maximizing system-wide output

Modular, Scalable Design

Supports up to 16 connectors (model-dependent) using dual dispensers for maximum flexibility and simultaneous charging across bays to boost throughput

Multiple Authentication Options

Supports RFID, OCPP, QR code, and optional POS, providing secure and flexible access methods to suit different operational needs

OCPP-Compliant Connectivity

Open Charge Point Protocol (OCPP) compatibility enables integration with third-party charger management platforms and networks
