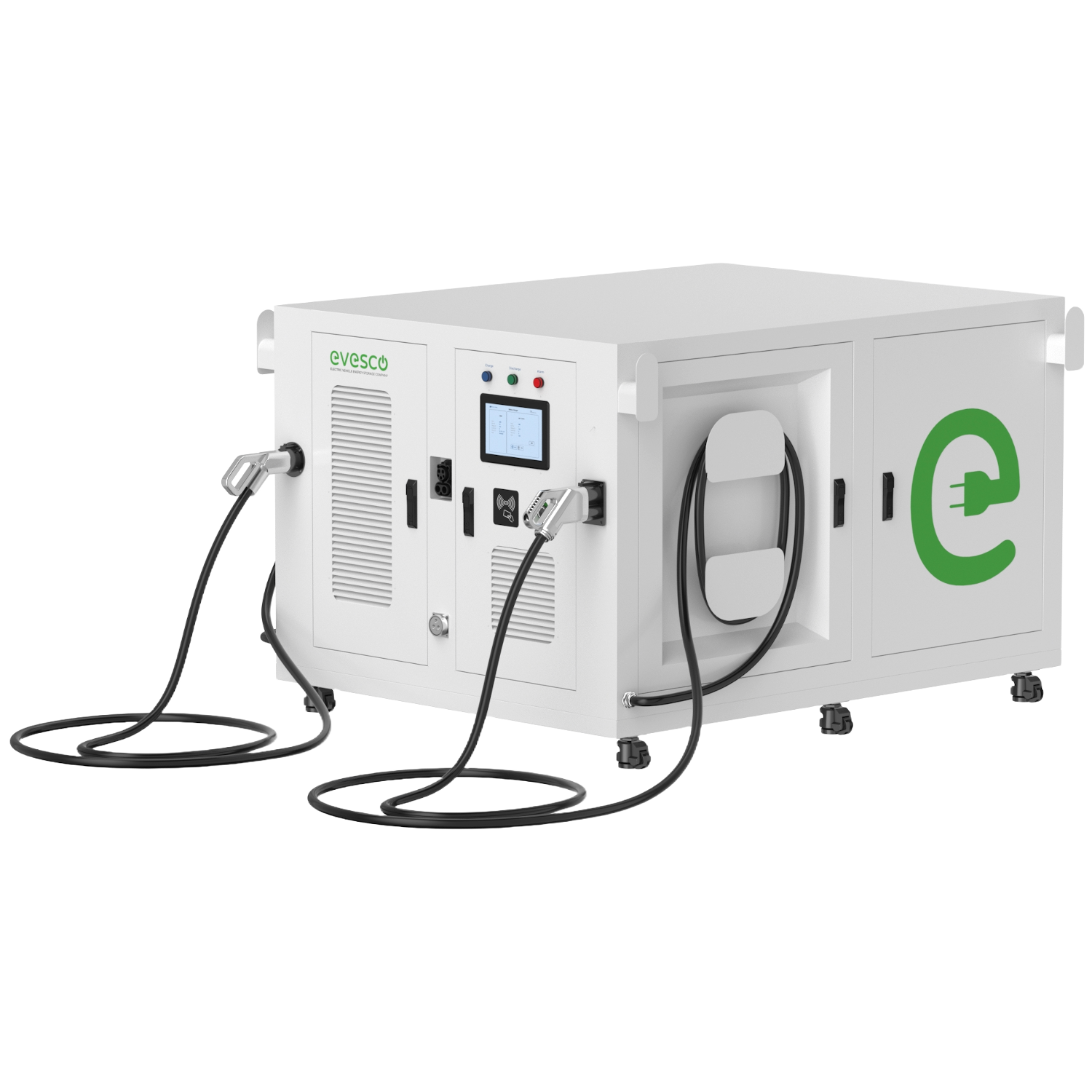

EVES-60.60_60_kW_60_kWh_off-grid_EV_charger_angle

EVES-60/60 (NA)

The EVES-60/60 (NA) is part of our Off-Grid EV Chargers range.

Product Group Information

The EVES series is designed for situations where grid power is unavailable, unreliable, or impractical. Integrating high-capacity LFP battery storage with DC fast charging, EVES enables dependable vehicle charging without reliance on utility infrastructure. The system supports multi-standard charging for mixed fleets, with up to two DC outputs and an additional Level 2 output to serve diverse vehicle types. Flexible recharging options allow the system to be replenished via an AC grid connection or from an existing DC fast charger, maximizing uptime between deployments. EVES systems are commonly used for emergency response, disaster recovery, temporary charging sites, and remote operations where off-grid capability and rapid deployment are critical.

Warranty

3 years as standard

Operating Temperature Range:

-4°F (-20°C) to 131°F (55°C)

Group Information:

Battery-integrated DC fast charging systems delivering reliable off-grid charging for outages, emergencies, and remote locations.

Product Description:

The EVES-60/60 (NA) is part of our Off-Grid EV Chargers range.

Expand

Output Power (kW)	60
Input Voltage +/- 10% (Vac)	480
Frequency (Hz)	50/60
Electrical Protection	Charging Device: Over / under voltage protection, overload protection, short circuit protection, over / under temperature protection, surge protection, communication failure, Battery: Over charge / discharge protection, over current protection, over / under temperature protection, short circuit protection.
Intelligent Power Sharing	1 vehicle: up to 60 kW, 2 vehicles: 30 kW + 30 kW
Recharging the Battery	Grid: 480Vac (3P+N+PE), DC Charging Station: CCS1
Stored Energy (Wh)	60.0
Cycle Life	> 6000
Output Voltage Range (Vdc)	200 - 920
Battery Chemistry	LiFePO4

Product Image

Length in (mm)	63.0 (1600.0)
Width in (mm)	50.4 (1280.0)
Height in (mm)	48.0 (1220.0)

IP Rating	IP54
Communication Protocol	OCPP 1.6
Authentication Modes	Auto charge, RFID, Customer backend via OCPP, Payment terminal
Emergency Stop Button	Yes
IK Rating	IK10
Display	Dual 10-Inch LCD touchscreens
Operating Humidity	5% - 95% without condensation
Network Connectivity	Ethernet, 4G, Wi-Fi
POS (Credit Card Reader)	Optional

Auto Dealerships

Construction Sites

Disaster Response

Emergency Services

Fleet Operations

Logistics and Distribution

Off-Highway

Ports & Airports

Temporary Charging

Available in US:	y
Available in EMEA:	y
Cooling Method:	Forced air cooling
Connector Type:	CCS1 + CCS1
Output Max. Current (A):	125 / 125
Supply Input:	3P + PE (different input connector configurations available)
Charging Cable Length (Ft):	29.5
Charging Cable Length (M):	9.0
Available in US:	y
Available in EMEA:	y
Cooling Method:	Forced air cooling
Connector Type:	CCS1 + CCS1 + Type 1
Output Max. Current (A):	CCS1: 125 / Type1: 80
Supply Input:	3P + PE (different input connector configurations available)
Charging Cable Length (Ft):	29.5
Charging Cable Length (M):	9.0
Available in US:	y
Available in EMEA:	y
Cooling Method:	Forced air cooling
Connector Type:	CCS1 + NACS
Output Max. Current (A):	CCS1: 125 / NACS: 125
Supply Input:	3P + PE (different input connector configurations available)
Charging Cable Length (Ft):	29.5
Charging Cable Length (M):	9.0
Available in US:	y
Available in EMEA:	y
Cooling Method:	Forced air cooling
Connector Type:	CCS1 + NACS + Type 1
Output Max. Current (A):	CCS1: 125 / NACS: 125 / Type1: 80
Supply Input:	3P + PE (different input connector configurations available)
Charging Cable Length (Ft):	29.5
Charging Cable Length (M):	9.0

Features and Documents

Balanced Cable Management

Spring-loaded cable management reduces strain and improves ease of use while keeping the charging area cleaner and safer

Dual-Connector Efficiency

Supports two charging outputs in a compact mobile format, increasing charger availability without sacrificing portability

Dynamic Power Sharing

Power is intelligently distributed across dispensers based on vehicle demand, optimizing utilization and improving throughput

Mobile Fleet Support

Portable architecture allows charging to be deployed exactly where fleet vehicles are staged, reducing infrastructure dependence

Rapid Setup

Fast commissioning and minimal installation requirements allow charging operations to begin quickly in dynamic environments

Scalable Power Cabinet

Centralized power architecture enables flexible expansion of site capacity to match growing charging demand over time
