EVDC-PRO-60/80 (EU)

The EVDC-PRO-60/80 (EU) is part of our DC Fast Chargers range.

Product Group Information

The EVDC-PRO series is built for high-utilization, mission-critical charging environments that need reliable performance today and a clear path to expand power as demand increases. With a modular architecture scalable up to 240 kW (model-dependent), EVDC-PRO enables phased deployment without replacing core equipment, making it ideal for fleet depots, service yards, and commercial sites planning progressive electrification. Designed to sustain demanding duty cycles and daily throughput, the platform supports a wide 200–1000 VDC output range, intelligent power sharing, and operations-ready features such as cable management and flexible connectivity. EVDC-PRO is commonly deployed where uptime, scalability, and operational consistency are non-negotiable.

Warranty

3 years as standard

Operating Temperature Range:

-13°F (-25°C) to 149°F (65°C)

Group Information:

Modular DC fast chargers with upgradeable power options up to 240 kW (model dependent) for mission-critical sites.

Product Description:

Built for high-demand EV charging environments, the EVDC-PRO-60/80 (EU) delivers up to 60 kW of scalable DC fast charging. Designed for critical sites with high utilization, the EVDC-PRO Series features a modular architecture that scales charging power as demand increases, helping you avoid costly overbuilds upfront while maintaining the flexibility to increase power output over time. Engineered to sustain demanding duty cycles, the platform supports intelligent power sharing and a wide 200 - 1000 VDC output range, ensuring consistent performance across diverse vehicle types and high-throughput environments. With robust thermal management and integrated cable handling, the EVDC-PRO Series maintains reliable operation under continuous load, reducing downtime risk. Flexible network integration and authentication options, including OCPP and payment terminals, enable seamless deployment across public, fleet, and commercial charging networks. Powered by a 400 VAC (+/-10%) input supply, the EVDC-PRO-60/80 (EU) provides a future-ready charging platform designed to scale with your operations, delivering the performance, flexibility, and reliability required for long-term infrastructure investments.

Expand

Frequency (Hz)	50/60
Input Current @ Rated Vac (A)	112.0
Electrical Protection	Under-voltage protection, over-voltage protection, DC over-current protection, over-temperature protection, surge protection device, emergency stop protection, overload protection, short circuit protection, electric leakage protection, reverse connect protection, over-charge protection
Intelligent Power Sharing	1 vehicle: up to 60 kW, 2 vehicles: 40 kW + 20 kW
Output Power (kW)	60
Output Voltage Range (Vdc)	200 - 1000
Input Voltage +/- 10% (Vac)	400
Efficiency	≥96% (50%-100% load)
Power Factor	≥0.99
THDI	≤5%

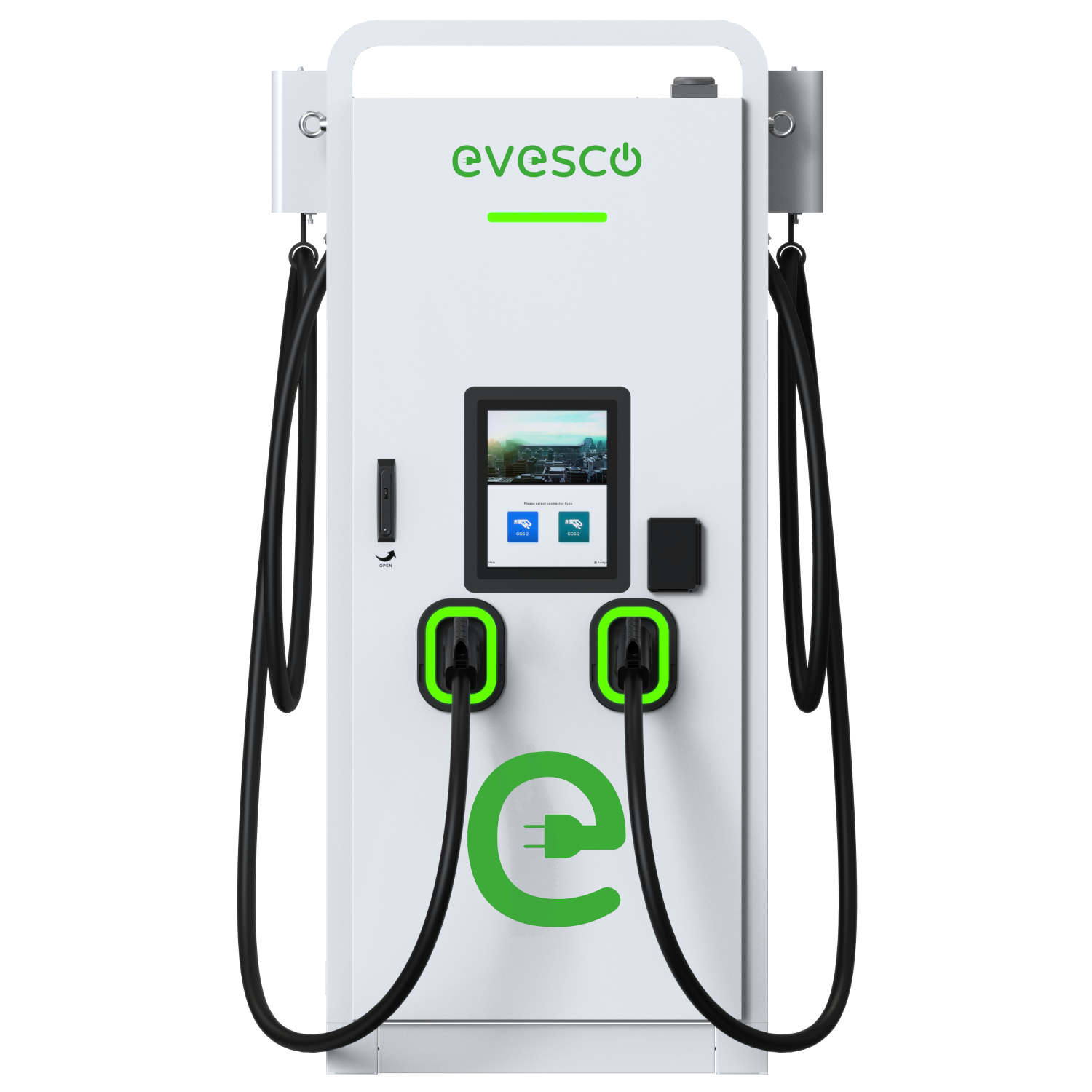

Product Image

Length in (mm)	19.7 (500.0)
Width in (mm)	33.5 (850.0)
Height in (mm)	79.9 (2030.0)

IP Rating	IP55
Communication Protocol	OCPP 1.6
Authentication Modes	Auto charge, RFID, Customer backend via OCPP, Payment terminal
Emergency Stop Button	Yes
IK Rating	IK10
Upgradeable Power	Increase power by adding a 20 kW module to max 80 kW
Display	15-inch LCD touchscreen
Operating Humidity	5% - 95% without condensation
Network Connectivity	Ethernet, 4G
POS (Credit Card Reader)	Optional

Auto Dealerships

Fleet Operations

Fuel Stations

Hotels & Hospitality

Logistics and Distribution

Off-Highway

Ports & Airports

Public Charging Networks

Retail

Available in US:	y
Available in EMEA:	y
Cooling Method:	Forced air cooling
Connector Type:	CCS2 + CCS2
Output Max. Current (A):	200 / 200
Supply Input:	3P + PE + N
Charging Cable Length (Ft):	16.4
Charging Cable Length (M):	5.0
Available in US:	y
Available in EMEA:	y
Cooling Method:	Forced air cooling
Connector Type:	CCS2 + CCS2
Output Max. Current (A):	200 / 200
Supply Input:	3P + PE + N
Charging Cable Length (Ft):	23.0
Charging Cable Length (M):	7.0
Available in US:	y
Available in EMEA:	y
Cooling Method:	Forced air cooling
Connector Type:	CCS2 + CHAdeMO
Output Max. Current (A):	CCS2: 200 / CHA: 125
Supply Input:	3P + PE + N
Charging Cable Length (Ft):	16.4
Charging Cable Length (M):	5.0
Available in US:	y
Available in EMEA:	y
Cooling Method:	Forced air cooling
Connector Type:	CCS2 + CHAdeMO
Output Max. Current (A):	CCS2: 200 / CHA: 125
Supply Input:	3P + PE + N
Charging Cable Length (Ft):	23.0
Charging Cable Length (M):	7.0

Features and Documents

Accessible by Design

Designed for inclusive access with barrier-free cable reach and accessible interface height, supporting disability accessibility requirements

ADA-Conscious Form Factor

Designed with a compact footprint and accessible user interface to support deployment where space and usability are critical

High Power Output

Delivers up to 700A, with continuous charging at 500A, ideal for heavy-duty EVs needing stable, high-speed performance

Low-Power, Immediate Charging

Delivers DC fast charging from low-power AC input, enabling EV charging in locations where utility capacity is limited or upgrades are impractical

Simultaneous Vehicle Charging

Intelligent power sharing enables two vehicles to charge simultaneously without delays or reduced performance, maximizing throughput

Wide Input Compatibility

Operates from a broad range of AC inputs, providing flexibility for deployment in varied electrical environments without major infrastructure changes
