EVDC-FLEX-30 (EU)

The EVDC-FLEX-30 (EU) is part of our DC Fast Charger range.
Request A Quote
Product Group Information
The EVDC-FLEX series is designed for locations where space, available power, or installation constraints limit the deployment of higher-power DC fast charging. EVDC-FLEX combines a compact, space-saving form factor with flexible installation options, including wall-mounted, pedestal, or portable configurations. Adaptive power management automatically adjusts charging output based on available site power, ensuring reliable operation even in constrained electrical environments. With a wide 50–1000 VDC output range and multiple authentication options, EVDC-FLEX is well suited for commercial sites, fleet operations, parking facilities, and temporary deployments that require cost-effective, flexible DC fast charging without major infrastructure upgrades.
Warranty
3 years as standard
Operating Temperature Range:
-13°F (-25°C) to 149°F (65°C)
Group Information:

Compact DC fast chargers designed for space- or power-limited sites that require flexible installation and dependable performance.

Product Description:

Deploy DC fast charging wherever you need it. The EVDC-FLEX-30 (EU) delivers 30 kW of reliable DC charging in a compact, flexible form factor, ideal for sites with limited space or constrained electrical capacity. Designed for maximum deployment flexibility, the system supports wall-mounted, pedestal, or portable configurations, enabling fast rollout across a wide range of use cases, from permanent installations to mobile and temporary charging. With dynamic load management, the EVDC-FLEX Series automatically adjusts power output based on available capacity, ensuring stable operation without costly electrical upgrades. A wide 50 - 1000 VDC output range ensures compatibility with current and next-generation electric vehicles. Delivering up to 97% efficiency, flexible authentication options, and 400 (+/-10%) VAC input, the EVDC-FLEX-30 (EU) provides a cost-effective, space-efficient solution for expanding EV charging access, without complexity.

Expand
Frequency (Hz) 50/60
Input Current @ Rated Vac (A) 55.0
Electrical Protection Under-voltage protection, over-voltage protection, DC over-current protection, over-temperature protection, surge protection device, emergency stop protection, overload protection, short circuit protection, electric leakage protection, reverse connect protection, over-charge protection
Output Power (kW) 30
Output Voltage Range (Vdc) 50 - 1000
Input Voltage +/- 10% (Vac) 400
Efficiency ≥97% (50%-100% load)
Power Factor ≥0.99
THDI ≤5%

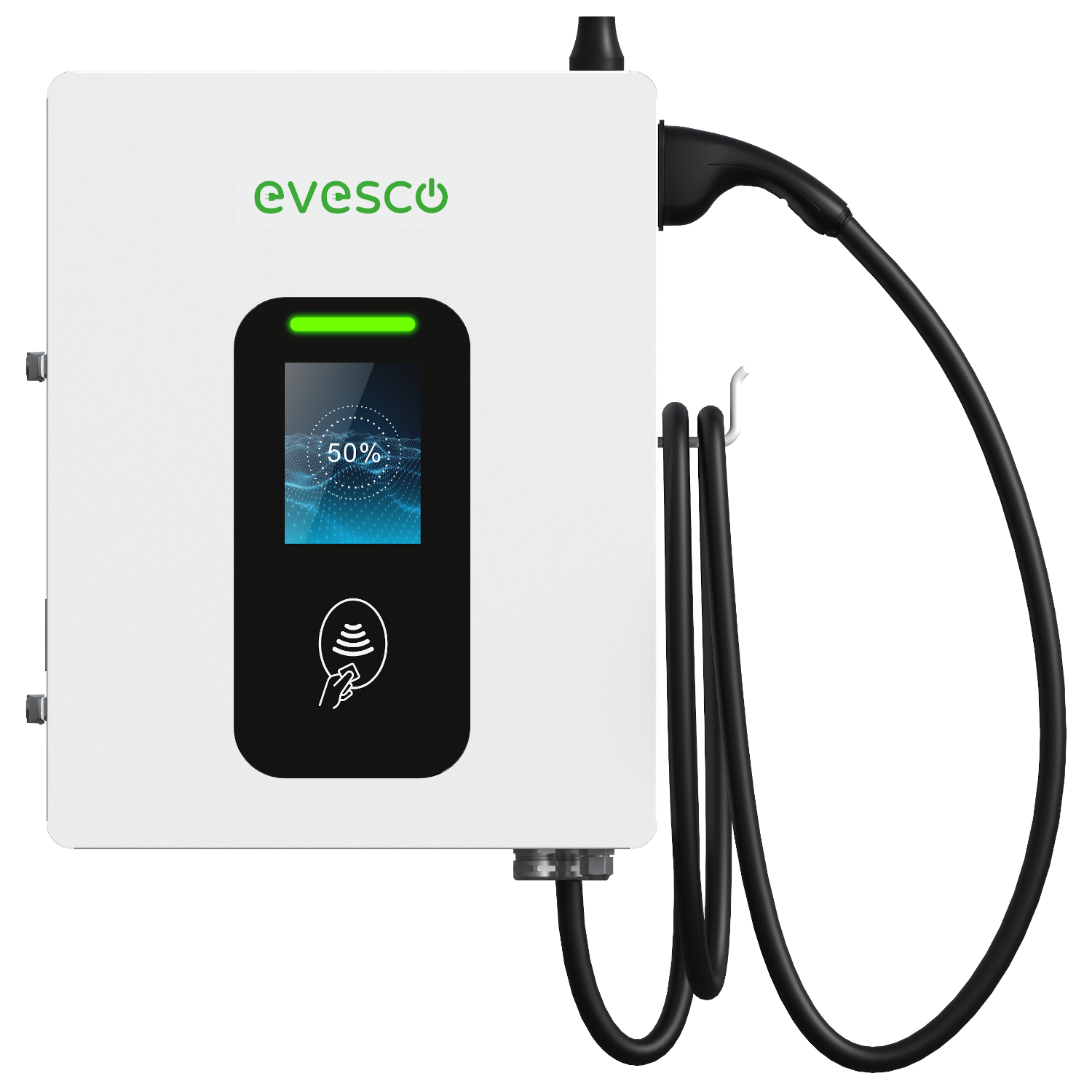

Product Image
EVDC-FLEX-30 (EU)
Length in (mm) 7.9 (200.0)
Width in (mm) 19.7 (500.0)
Height in (mm) 27.6 (700.0)
IP Rating IP55
Communication Protocol OCPP 1.6
Authentication Modes Auto charge, RFID, Customer backend via OCPP, Payment terminal
Emergency Stop Button Yes
IK Rating IK10
Display 15-inch LCD touchscreen
Operating Humidity 5% - 95% without condensation
Network Connectivity Ethernet, 4G
POS (Credit Card Reader) Optional
Mounting Options Wall mounted, pedestal (optional), portable (optional)
Auto Dealerships
Destination Charging
EV Manufacturing & Testing
Fleet Operations
Hotels & Hospitality
Logistics and Distribution
Off-Highway
Ports & Airports
Temporary Charging
Workplace Charging
Available in US: y
Available in EMEA: y
Cooling Method: Forced air cooling
Connector Type: CCS2
Output Max. Current (A): 80
Supply Input: 3P + PE + N
Charging Cable Length (Ft): 16.4
Charging Cable Length (M): 5.0

Features and Documents

Accessible by Design

Designed for inclusive access with barrier-free cable reach and accessible interface height, supporting disability accessibility requirements

All-Weather Reliability

Engineered for dependable operation across a wide range of climates and site conditions, supporting uptime in demanding environments

High Power Output

Delivers up to 700A, with continuous charging at 500A, ideal for heavy-duty EVs needing stable, high-speed performance

Up to 160 kW

Supports up to 160 kW charging to serve medium-duty fleets and high-demand public charging environments with faster turnaround times

Up to 240 kW

Delivers up to 240 kW charging to reduce dwell times and support high-throughput fleet or corridor applications

Up to 320 kW

Provides up to 320 kW charging for ultra-fast EV replenishment, helping maximize site throughput and minimize vehicle downtime
