EVDC-CORE-210-MEDIA (EU)

The EVDC-CORE-210-MEDIA (EU) is part of our Media Screen Fast Chargers range.
Request A Quote
Product Group Information
The EVDC-CORE-MEDIA series builds on the proven EVDC-CORE charging platform by adding a large-format, high-visibility 55-inch media screen designed for public-facing environments. Delivering 60 kW to 210 kW of DC fast charging, the system combines reliable charging performance with dynamic content display to support branding, wayfinding, and customer engagement. Intelligent dual-vehicle charging with power sharing maximizes site throughput, while a wide 300–1000 VDC output range ensures compatibility with today’s and next-generation EVs. EVDC-CORE-MEDIA chargers are commonly deployed at retail locations, forecourts, parking facilities, and destination sites where charging infrastructure doubles as a high-impact communication and revenue-generating platform.
Warranty
3 years as standard
Operating Temperature Range:
-4°F (-20°C) to 122°F (50°C)
Group Information:

Stand-alone DC fast chargers with integrated media display for public-facing sites where visibility and engagement matter.

Product Description:

Turn every charging session into a revenue opportunity. The EVDC-CORE-210-MEDIA (EU) combines reliable DC fast charging up to 210 kW with an integrated 55” media display, enabling operators to monetize driver dwell time through targeted advertising and branded content. Designed for high-visibility, high-traffic locations, the EVDC-CORE-MEDIA Series supports dual-vehicle charging with intelligent power sharing, maximizing site utilization while generating new recurring revenue streams per charger. A wide 300 - 1000 VDC output range ensures compatibility with current and next-generation EVs. With flexible authentication, OCPP connectivity, and 400 (+/-10%) VAC input, the EVDC-CORE-210-MEDIA (EU) delivers a high-impact, future-ready charging solution that drives both utilization and profitability.

Expand
Frequency (Hz) 50/60
Input Current @ Rated Vac (A) 308.0
Electrical Protection Over / under voltage protection, overload protection, short circuit protection, over / under temperature protection, surge protection, communication failure
Intelligent Power Sharing 1 vehicle: up to 210 kW, 2 vehicles: 120 kW + 90 kW
Output Power (kW) 210
Output Voltage Range (Vdc) 300 - 1000
Input Voltage +/- 10% (Vac) 400
Efficiency ≥96% (50%-100% load)
Power Factor ≥0.99
THDI ≤5%

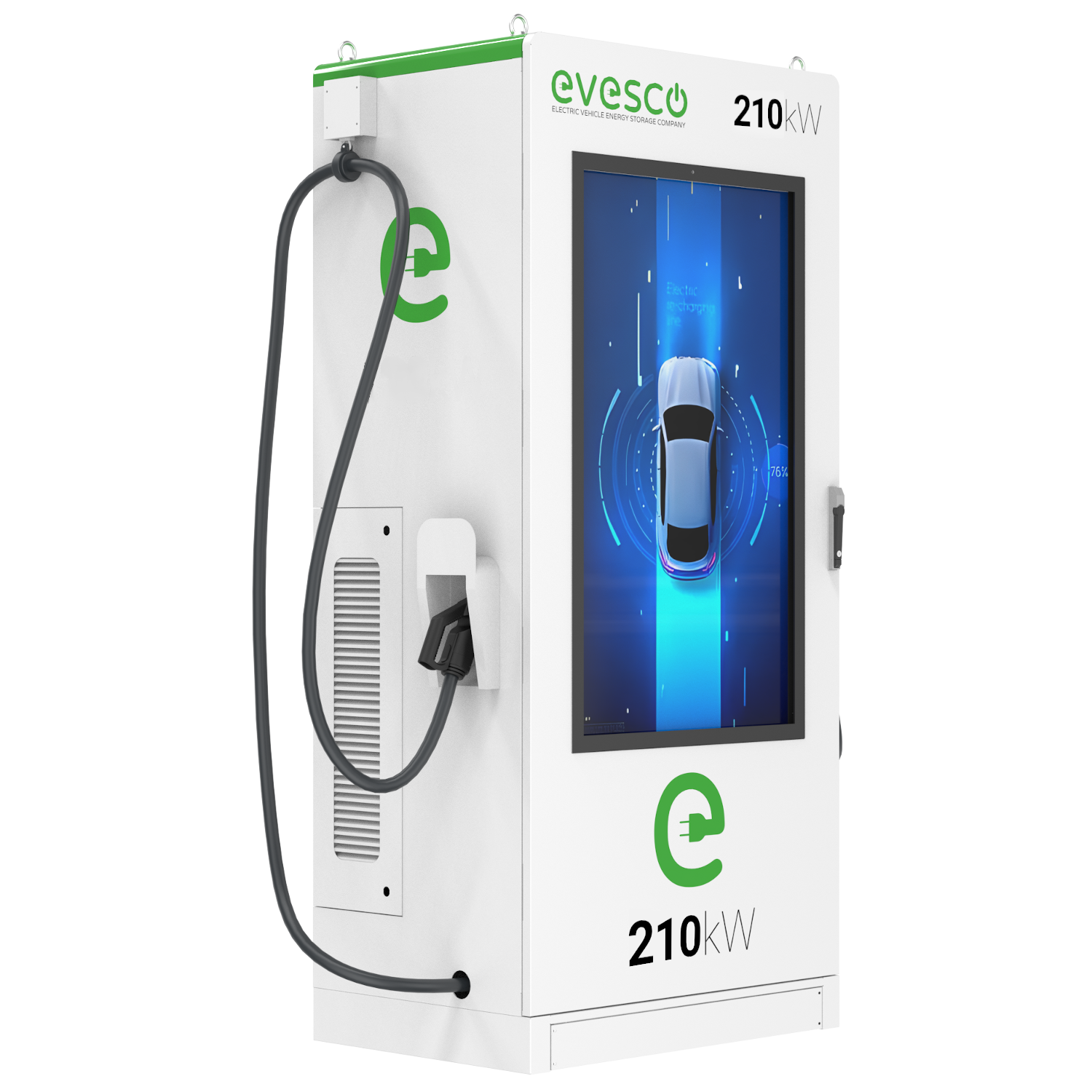

Product Image
EVDC-CORE-210-MEDIA (EU)
Length in (mm) 27.6 (702.0)
Width in (mm) 39.4 (1000.0)
Height in (mm) 86.6 (2200.0)
IP Rating IP54
Communication Protocol OCPP 1.6
Authentication Modes Auto charge, RFID, Customer backend via OCPP, Payment terminal
Emergency Stop Button Yes
IK Rating IK10
Media Screen 55 inch (1920 x 1080 resolution)
Display 10-inch LCD touchscreen
Operating Humidity 5% - 95% without condensation
Network Connectivity Ethernet, 4G, Wi-Fi
POS (Credit Card Reader) Optional
Auto Dealerships
Destination Charging
Fuel Stations
Hotels & Hospitality
Public Charging Networks
Retail
Available in US: y
Available in EMEA: y
Cooling Method: Liquid-cooling
Connector Type: CCS2 + CCS2
Output Max. Current (A): 500 / 500
Supply Input: 3P + PE + N
Charging Cable Length (Ft): 16.4
Charging Cable Length (M): 5.0
Available in US: y
Available in EMEA: y
Cooling Method: Liquid-cooling
Connector Type: CCS2 + CHAdeMO
Output Max. Current (A): CCS1: 500 / CHA: 125
Supply Input: 3P + PE + N
Charging Cable Length (Ft): 16.4
Charging Cable Length (M): 5.0

Features and Documents

ADA-Accessible Dispenser

Dispenser is designed to support accessible reach, interface height, and usability, helping meet ADA deployment requirements

Balanced Cable Management

Spring-loaded cable management reduces strain and improves ease of use while keeping the charging area cleaner and safer

Flexible Installation

Supports wall-mounted, pedestal, or portable configurations, offering deployment flexibility across a wide range of site types and use cases

High Power Output

Delivers up to 700A, with continuous charging at 500A, ideal for heavy-duty EVs needing stable, high-speed performance

OCPP-Compliant Connectivity

Open Charge Point Protocol (OCPP) compatibility enables integration with third-party charger management platforms and networks

Simultaneous Vehicle Charging

Intelligent power sharing enables two vehicles to charge simultaneously without delays or reduced performance, maximizing throughput
