DCM-12900-G27

The DCM-12900-G27 is part of our Deep Cycle AGM range. This 12.0V and [[ps_common_items.field_values.34]]Ah battery provides sustained discharge capability over many cycles. Features include AGM Technology, Cold Weather, Deep Cycle Paste, Fast Charge, HD Vibration Tolerance, Power Volume Ratio, SLA ABS Case, SLA Discharge Recovery, SLA Maintenance Free, and Vibration Impact Resistant. These batteries are commonly used in ATV, Generator Starting, Golf Carts, Lawn and Garden, Marine, Power Sport, Sport Recreation, and UTV requiring long runtimes and repeat cycling. Backed by decades of expertise, Power-Sonic batteries are subject to stringent quality controls through each step of the manufacturing process to ensure compliance, performance consistency, and reliability.
Request A QuoteGet Datasheet
Product Group Marketing Paragraph
Deep cycle AGM batteries are engineered for long runtimes, repeated cycling, and exceptional reliability. With a rugged plate design and AGM separators, they deliver dependable performance and long cycle life, making them ideal for marine, mobility, renewable energy, and other demanding applications.
Long Term Storage Statement
DCM series batteries may be stored for up to 6 months at 25C (77 F) and then a freshening charge is required. For higher temperatures the time interval will be shorter

Operating Temperature
Range _ Charge:
5°F - 104°F
(--15°C)
(40°C)
Operating Temperature
Range _ Discharge:
-4°F - 122°F
(--20°C)
(50°C)
Dimensional Tolerances:
+/- 0.04 in. (+/- 1mm) for length and width +/- 0.08 in. (+/- 2mm) for height dimensions
Additional Specifications:
For the detailed technical specifications please refer to the model's technical document
Group Description:

Deep cycle AGM batteries deliver long runtimes and exceptional cycle life with a rugged plate design and reliable AGM technology. Engineered for consistent performance, they excel in demanding applications where repeated cycling and dependable power are essential.

Product Description:

The DCM-12900-G27 is part of our Deep Cycle AGM range. This 12.0V and [[ps_common_items.field_values.34]]Ah battery provides sustained discharge capability over many cycles. Features include AGM Technology, Cold Weather, Deep Cycle Paste, Fast Charge, HD Vibration Tolerance, Power Volume Ratio, SLA ABS Case, SLA Discharge Recovery, SLA Maintenance Free, and Vibration Impact Resistant. These batteries are commonly used in ATV, Generator Starting, Golf Carts, Lawn and Garden, Marine, Power Sport, Sport Recreation, and UTV requiring long runtimes and repeat cycling. Backed by decades of expertise, Power-Sonic batteries are subject to stringent quality controls through each step of the manufacturing process to ensure compliance, performance consistency, and reliability.

Expand
Voltage 12.0
Number of Series Cells 6.0
Stored Energy (Wh) 1104.0
Rated Capacity 20hr 92.0
Recommended Discharge Cutoff Voltage 10.5
CCA 800.0
Cycle Constant Voltage Range 14.00V – 14.70V
Float Constant Voltage Range 13.50V - 13.80V
Parallel Connection Up to Four*
Recommended Chargers PSC-126000ACX
Reserve Capacity (min) 200.0

Recommended Charge Current (C rate) : 10.5 - 21.0

Case Material ABS Plastic Rated to UL94:HB
Length in (mm) 12.05 (306.0)
Width in (mm) 6.61 (168.0)
Height in (mm) 8.19 (208.0)
Height Over Terminal in (mm) 9.11 (232.0)
Minimum Weight kg (lbs) 62.84 (28.5)

Characteristic DCM12900G27
Terminal Type SAE/M8
VdS n
Active on Web US y
Active on Web EMEA n
SKU Battery DCM-12900-G27 SAE/M8
  • DCM-12900-G27 SAE/M8

Features and Documents

AGM Technology

Absorbent Glass Mat (AGM) technology for superior performance, service life, and reliability

Cold Weather

Suitable for cold weather conditions

Deep Cycle Paste

Special additives in the acid paste ensure excellent performance in deep discharge situations

Fast Charge

Enhanced design allows for fast charging

HD Vibration Tolerance

Heavy duty (HD) construction with high vibration tolerance

Power Volume Ratio

Excellent power to volume ratio yielding high energy density

SLA ABS Case

Rugged vibration and impact resistant ABS case and cover

SLA Discharge Recovery

Excellent recovery from over discharge situations

SLA Maintenance Free

Proven valve regulated technology that guarantees safe operation without maintenance or refilling

Vibration Impact Resistant

Highly vibration and impact resistant

Graphs

Capacity Retention SLA

Capacity Retention SLA

Shelf life of SLA at various temperatures

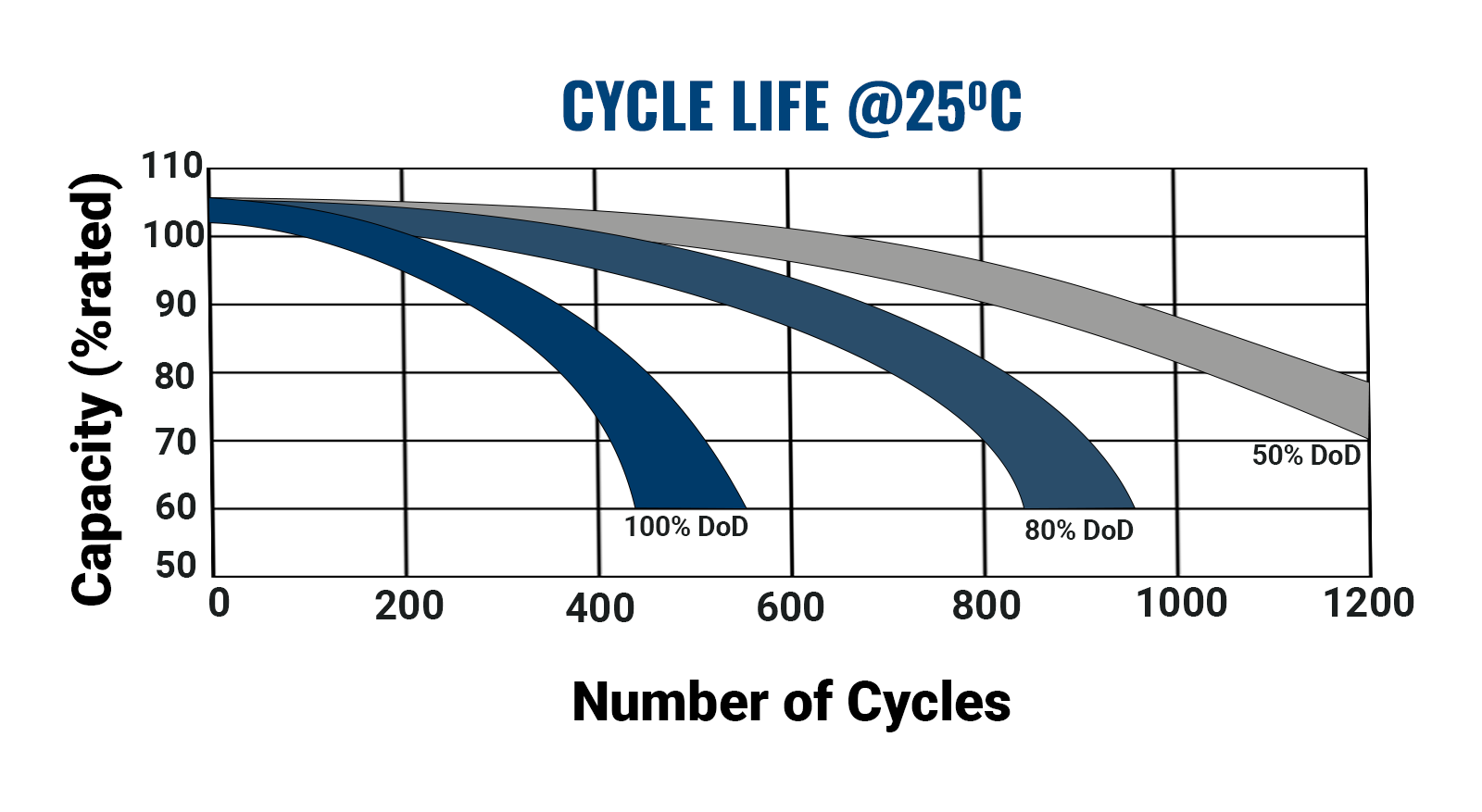

DCM Cycle Life

DCM Cycle Life

Cycle life vs depth of discharge for the DCM series

SLA Charging

SLA Charging

Charging characteristics for SLA

SLA Discharge Rates

SLA Discharge Rates

SLA voltage profiles at various rates
