DCG12-200

DCG Series

Where to buy
Download Technical Data Sheet

Features

Specifications

Terminal Options

  • Deep cycle gel battery
  • Thixotropic gel electrolyte for enhanced performance
  • Power/volume ratio yielding unrivalled energy density
  • Proven valve regulated technology that guarantees safe operation without maintenance
  • Rugged impact resistant ABS case and cover
  • Designed specifically for cyclic applications
  • Approved for transport by air. D.O.T., I.A.T.A., F.A.A. and C.A.B certified

Model Number:

DCG12-200

Nominal voltage:

12V

Capacity @20HR (AH):

200.00 Ah

Capacity @10HR (AH):

186.00 Ah

Weigth:

62.9kg / 138.7lbs

Case:

ABS UL94:HB (flame retardant UL94:V0 version also available)

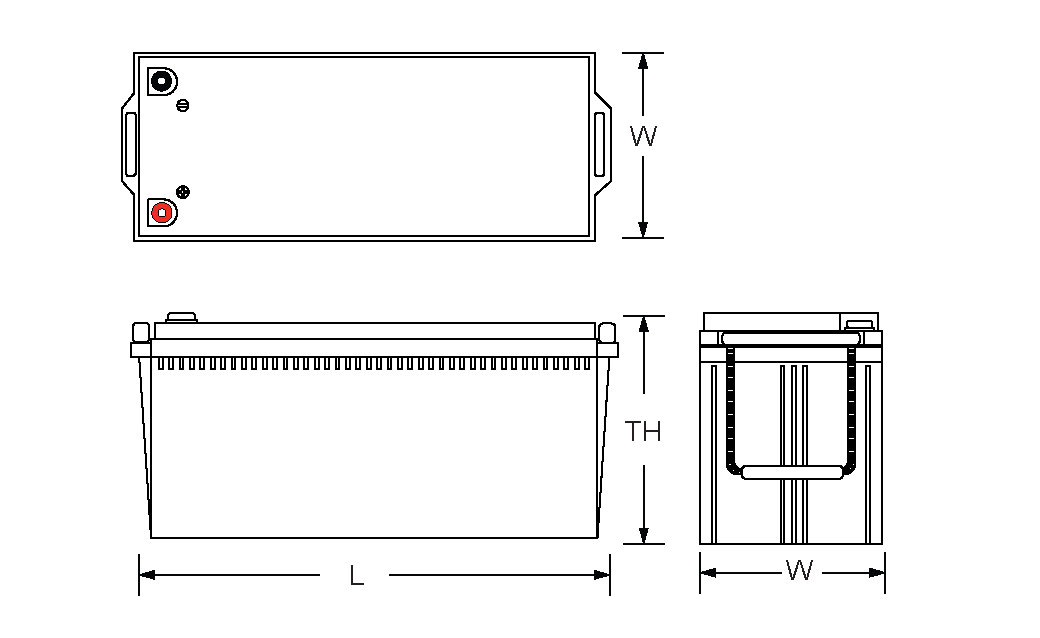

Dimensions

Length:

20.55'' / 522mm

Width:

9.45'' / 240mm

Height:

8.58'' / 218mm

Recommended Charger:

PSC-1220000-PC

T11
  • Deep cycle gel battery
  • Thixotropic gel electrolyte for enhanced performance
  • Power/volume ratio yielding unrivalled energy density
  • Proven valve regulated technology that guarantees safe operation without maintenance
  • Rugged impact resistant ABS case and cover
  • Designed specifically for cyclic applications
  • Approved for transport by air. D.O.T., I.A.T.A., F.A.A. and C.A.B certified

Model Number:

DCG12-200

Nominal voltage:

12V

Capacity @20HR (AH):

200.00 Ah

Capacity @10HR (AH):

186.00 Ah

Weigth:

62.9kg / 138.7lbs

Case:

ABS UL94:HB (flame retardant UL94:V0 version also available)

Dimensions

Length:

20.55'' / 522mm

Width:

9.45'' / 240mm

Height:

8.58'' / 218mm

Recommended Charger:

PSC-1220000-PC

T11

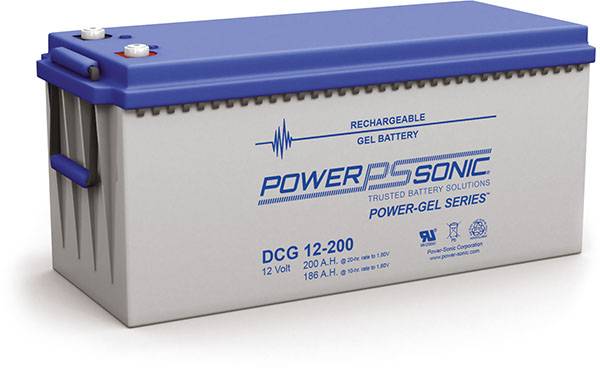

Product Image

This model replaces the PSGL122000

MODEL SUMMARY

The DCG12-200 is part of our DCG range of deep cycle gel batteries which have been designed specifically to offer superior performance in cyclic applications. The 12V 200.00Ah gel battery offers a high cycle life in a large range of cyclic applications including mobility, golf, solar and wind.

Power Sonic’s state-of-the-art manufacturing and process control combined with rigorous quality assurance procedures guarantee consistent and reliable performance.
