DCG12-110

The DCG12-110 is part of our Gel VRLA range. This 12.0V and 110.0Ah battery provides deep discharge recovery and strong vibration resistance. Features include Gas Recombination, Gel Electrolyte, Power Volume Ratio, SLA ABS Case, SLA Cycle Life, and SLA Maintenance Free. These batteries are commonly used in Golf Carts, Medical, Mobility, Signaling (Air,Rail,Sea), Solar, Telecomm, and Wind requiring deep cycle endurance in harsh and high temperature environments. Backed by decades of expertise, Power-Sonic batteries are subject to stringent quality controls through each step of the manufacturing process to ensure compliance, performance consistency, and reliability.
Request A QuoteGet Datasheet
Product Group Marketing Paragraph
Maintenance-free gel batteries with a thixotropic electrolyte deliver excellent deep-cycle endurance, enhanced safety, and strong vibration resistance. Built for harsh and higher temperature environments, they provide reliable cycling performance in applications such as medical devices, mobility equipment, and renewable energy systems.
Long Term Storage Statement
DCG series batteries may be stored for up to 6 months at 25C (77 F) and then a freshening charge is required. For higher temperatures the time interval will be shorter

Operating Temperature
Range _ Charge:
4°F - 104°F
(20°C)
(40°C)
Operating Temperature
Range _ Discharge:
4°F - 140°F
(20°C)
(60°C)
Operating Temperature
Range _ Recommended:
4°F - 122°F
(20°C)
(50°C)
Dimensional Tolerances:
+/- 0.08 in. (+/- 2mm) for length, width, and height dimensions
Additional Specifications:
For the detailed technical specifications please refer to the model's technical document
Group Description:

Featuring a true gel electrolyte for uniform acid distribution, these batteries deliver long cycle life, exceptional deep-discharge recovery, and safe sealed construction for indoor or enclosed installations.

Product Description:

The DCG12-110 is part of our Gel VRLA range. This 12.0V and 110.0Ah battery provides deep discharge recovery and strong vibration resistance. Features include Gas Recombination, Gel Electrolyte, Power Volume Ratio, SLA ABS Case, SLA Cycle Life, and SLA Maintenance Free. These batteries are commonly used in Golf Carts, Medical, Mobility, Signaling (Air,Rail,Sea), Solar, Telecomm, and Wind requiring deep cycle endurance in harsh and high temperature environments. Backed by decades of expertise, Power-Sonic batteries are subject to stringent quality controls through each step of the manufacturing process to ensure compliance, performance consistency, and reliability.

Charging Description:

Cycle Applications: Apply constant voltage charge at 2.35VPC – 2.45VPC (14.1 to 14.7 volts for 12V Monobloc) at 20°C. The initial charging current should be set at less than C/5 Amps. Switch to float charge when the current falls to a 3% capacity rate to avoid overcharging. Stand-By or "Float" Service: Apply constant voltage charge of 2.25VPC – 2.30VPC (13.5 to 13.8 volts for 12V Monobloc) at 20°C. When held at this voltage, the battery will seek its own current level and maintain itself in a fully charged condition. Temperature Compensation: Charging voltage for both cyclic and stand-by applications should be regulated in relation to ambient temperature. As temperature rises, charging voltage should be reduced to prevent overcharge and increased as the temperature falls to avoid undercharge. For further charging information, including temperature compensation factors, see the Power-Sonic Technical Manual.

Expand
Voltage 12.0
Number of Series Cells 6.0
Stored Energy (Wh) 1320.0
Rated Capacity 20hr 110.0
Rated Capacity 10hr 105.0
Rated Capacity 5hr 95.5
Rated Capacity 1hr 66.5
Capacity Voltage 20hr 10.8
Capacity Voltage 10hr 10.8
Capacity Current 10hr 10.5
Capacity Voltage 5hr 10.2
Capacity Voltage 1hr 9.6
Cycle Constant Voltage Range 14.10V-14.40V-30mV/℃
Float Constant Voltage Range 13.38V-13.62V-18mV/℃
Initial Charging Current (A) 27.5
Capacity Current 5hr 19.1
Capacity Current 1hr 66.5
Max Continuous Discharge Current (A) 1100.0
Internal Resistance (mΩ) 7.0
Capacity Current 20hr 5.5
Short Circuit Current (A) 1980.0
Recommended Chargers PSC-1212000ACX

Constant Current Discharge Table:
VoltageOverTime10min15min20min30min45min1h1.5h2h3h4h5h6h8h10h20h
1.60V/cell213.5163.8138.0105.679.566.548.038.829.423.219.817.213.411.15.97
1.65V/cell192.4150.3128.4100.376.665.147.638.429.022.919.617.013.311.025.94
1.67V/cell191.4149.5127.599.675.864.447.038.328.922.819.516.913.211.05.93
1.70V/cell182.0143.8123.296.974.363.346.137.528.522.419.116.613.110.95.85
1.75V/cell166.6133.8115.992.671.761.244.436.027.722.118.616.412.910.85.73
1.80V/cell150.8123.5108.388.569.054.640.633.626.621.418.015.812.710.55.5
1.85V/cell123.2102.591.376.360.949.436.830.524.219.717.115.012.110.35.32
Expand
Constant Power Discharge Table:
VoltageOverTime10min15min20min30min45min1h1.5h2h3h4h5h6h8h10h20h
1.60V/cell362.8286.4246.8191.7147.3124.790.673.656.244.438.333.026.021.711.8
1.65V/cell335.1267.7232.8184.5142.8122.689.472.955.644.238.032.925.921.6411.72
1.67V/cell333.9266.9231.8183.6141.8122.089.272.855.444.137.932.825.821.611.7
1.70V/cell321.1258.9225.6179.6139.8120.688.171.955.143.537.232.525.721.511.6
1.75V/cell299.3244.4214.5173.5135.9117.385.669.753.843.036.432.125.321.311.4
1.80V/cell275.6228.9202.8167.5131.9105.478.765.351.941.935.431.125.020.710.9
1.85V/cell229.2192.7173.0145.6117.295.971.759.647.538.733.729.524.020.410.6
Expand

Charge Voltage (25C) - Cycle Use : 2.35V-2.40V/cell -5mV/cell/℃

Charge Voltage (25C) - Float Charge : 2.23V-2.27V/cell -3mV/cell/℃

Recommended Charge Current (C rate) : 0.1 C-0.25C

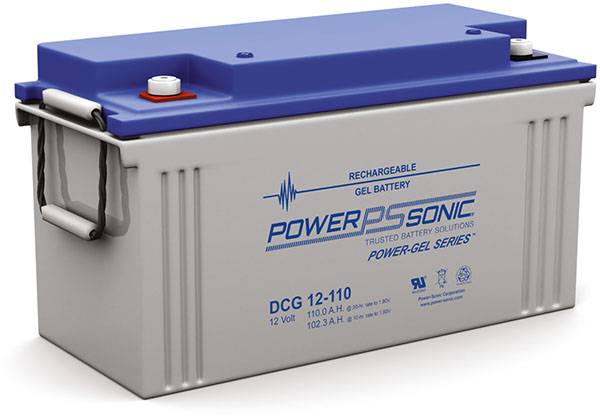

Image Featured
DCG12-110
Case Material ABS (UL94 HB or V-0 optional)
Minimum Weight (kg) 34.5
Minimum Weight (lbs) 76.06
Length (in) 16.06
Length (mm) 408.0
Width (in) 6.97

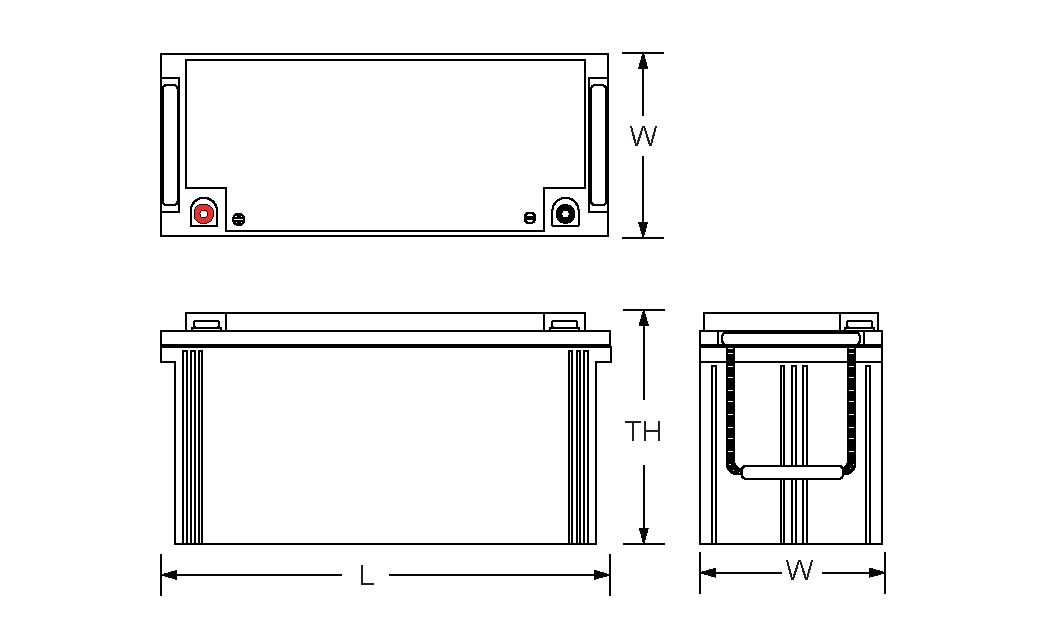

Dimensions Image
DCG12-110
Width (mm) 177.0
Height (in) 8.86
Height (mm) 225.0
Height Over Terminal (in) 8.86
Height Over Terminal (mm) 225.0

Characteristic 1211008405 G1211006809001
Terminal Type M8 M8
VdS n n
Active on Web US n y
Active on Web EMEA n y
Terminal Image 1211008405 G1211006809001
SKU Battery DCG12-110 M8 DCG12-110 M8
  • DCG12-110 M8
  • DCG12-110 M8

Features and Documents

Gas Recombination

Gas recombination technology for quick recovery of capacity during charge

Gel Electrolyte

Thixotropic gel electrolyte for enhanced performance

Power Volume Ratio

Excellent power to volume ratio yielding high energy density

SLA ABS Case

Rugged vibration and impact resistant ABS case and cover

SLA Cycle Life

Enhanced design for extended and optimal cycle life

SLA Maintenance Free

Proven valve regulated technology that guarantees safe operation without maintenance or refilling

Graphs

Capacity Retention SLA

Capacity Retention SLA

Shelf life of SLA at various temperatures

PDC Cycle Life

PDC Cycle Life

Cycle life vs depth of discharge for the PDC series

SLA Discharge Rates

SLA Discharge Rates

SLA voltage profiles at various rates
