Containerized Battery Energy Storage Systems (BESS)

BESS FEATURES

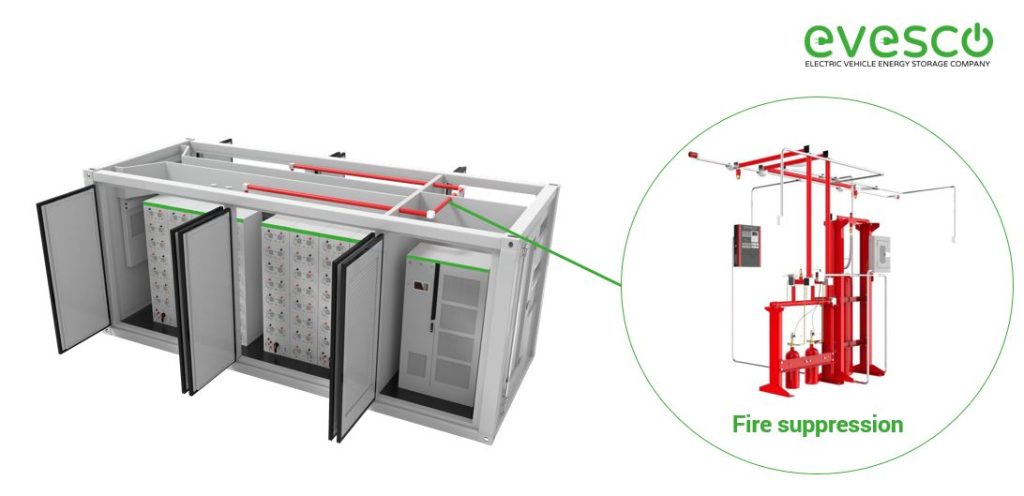

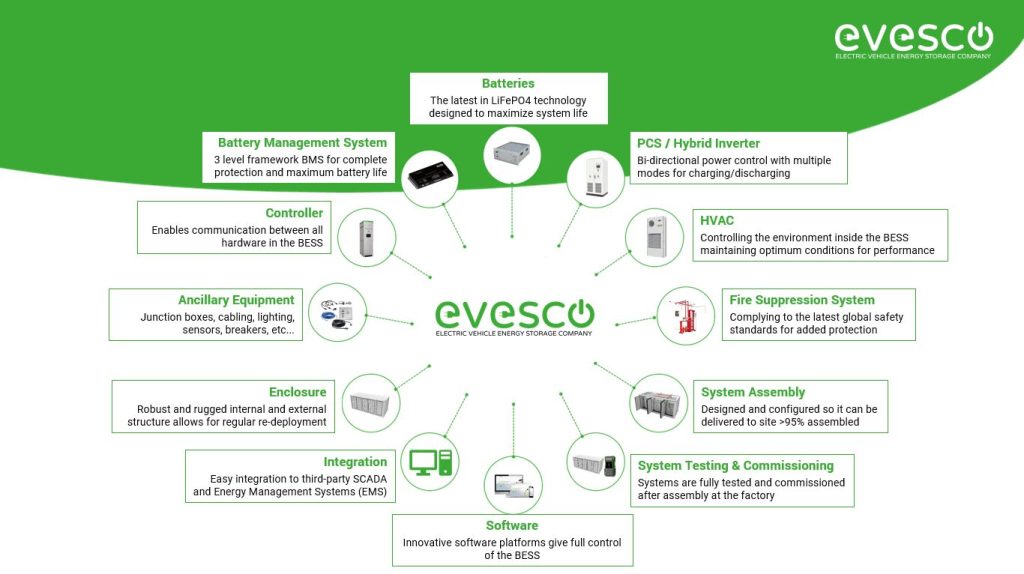

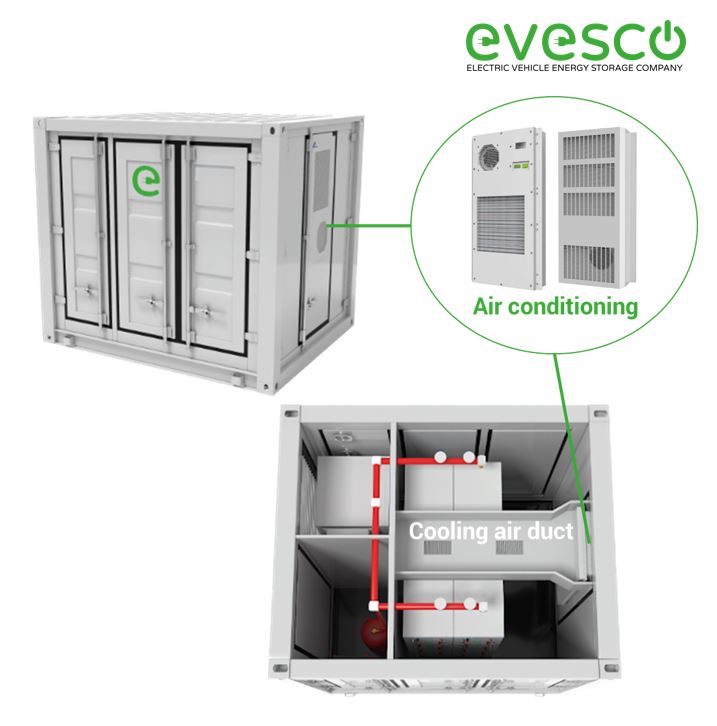

All-in-one containerized design complete with battery, PCS, HVAC, fire suppression, and smart controller
Maximum safety utilizing the safest type of lithium battery chemistry (LiFePO4) combined with an intelligent 3-level battery management system
Outstanding performance and long lifespan
Many models UL9540 certified and UL9540a tested for thermal runaway
Bi-directional technology with multiple modes for flexible charging and discharging
Optimized for both on-grid and off-grid (island mode) applications
Modular and scalable design enabling multiple MW of rated power and MWh of capacity
Prefabricated design with over 95% of the system prefabricated
Robust and rugged internal and external structure
Designed for quick and easy installation and maintenance

ALL-IN-ONE BATTERY ENERGY STORAGE SYSTEMS (BESS)

EVESCO’s containerized energy storage solutions have been developed on the back of over 50 years of expertise and innovation in battery and power conversion technology. Adding battery energy storage to EV charging, solar, wind, and other renewable energy applications can increase revenues dramatically. The EVESCO battery energy storage system creates tremendous value and flexibility for customers by utilizing stored energy during peak periods.

All of EVESCO’s battery energy storage systems are power source agnostic. They can integrate with various power generators in both on-grid and off-grid, also known as island mode, scenarios. If a grid connection is unavailable, the system can integrate with solar, wind, power generators utilizing biofuels or natural gas and fuel cells powered by hydrogen.

CONTAINERIZED ENERGY STORAGE

EVESCO’s 5ft, 10ft, and 20ft all-in-one containerized energy storage systems are designed to be Plug & Play solutions, manufactured, pre-configured, commissioned, and tested at our production facilities. This results in minimal on-site impact and almost instant operation. EVESCO's 40ft containerized systems are delivered pre-fabricated, with only the battery system needing to be assembled. While EVESCO offers several standardized solutions, our battery energy storage systems have been engineered to provide the flexibility to be adapted to your specific needs. The containerized solutions are configured with batteries, a power conversion system, HVAC, an intelligent controller, and all associated safety equipment, including fire suppression and a 3-level battery management system.

ES BESS Series

ES-10001000-EU

EVESCO’s ES-10001000-EU is an all-in-one containerized energy storage system that creates tremendous value and flexibility for commercial and...

Specs:

Rated Power: 1MW
Rated Capacity: 1106kWh
DC Voltage Range: 672 - 852 VDC
Supply Input: 400VAC / 50Hz

View ES-10001000-EU

ES-10001000-NA

EVESCO’s ES-10001000-NA is an all-in-one containerized energy storage system that creates tremendous value and flexibility for commercial and...

Specs:

Rated Power: 1MW
Rated Capacity: 1106kWh
DC Voltage Range: 672 - 852 VDC
Supply Input: 480VAC / 60Hz

View ES-10001000-NA

ES-10002000S

EVESCO’s ES-10002000S is an all-in-one and modular battery energy storage system that creates tremendous value and flexibility for commercial and...

Specs:

Rated Power: 1MW
Rated Capacity: 2064kWh
DC Voltage Range: 1075.2 - 1363.2 VDC
Supply Input: 690VAC, 50 / 60Hz
ANSI/CAN/UL 9540:2020 certified

View ES-10002000S

ES-250500-EU

EVESCO’s ES-250500-EU is an all-in-one containerized energy storage system that creates tremendous value and flexibility for commercial and...

Specs:

Rated Power: 250kW
Rated Capacity: 553kWh
DC Voltage Range: 672 - 852 VDC
Supply Input: 400VAC / 50Hz

View ES-250500-EU

ES-250500-NA

EVESCO’s ES-250500-NA is an all-in-one containerized energy storage system that creates tremendous value and flexibility for commercial and...

Specs:

Rated Power: 250kW
Rated Capacity: 553kWh
DC Voltage Range: 672 - 852 VDC
Supply Input: 480VAC / 60Hz

View ES-250500-NA

ES-5001000-EU

EVESCO’s ES-5001000-EU is an all-in-one containerized energy storage system designed to create tremendous value and flexibility for commercial and...

Specs:

Rated Power: 500kW
Rated Capacity: 1106kWh
DC Voltage Range: 672 - 852 VDC
Supply Input: 400VAC / 50Hz
ANSI/CAN/UL 9540:2020 certified

View ES-5001000-EU

ES-5001000-NA

EVESCO’s ES-5001000-NA is an all-in-one containerized energy storage system designed to create tremendous value and flexibility for commercial and...

Specs:

Rated Power: 500kW
Rated Capacity: 1106kWh
DC Voltage Range: 672 - 852 VDC
Supply Input: 480VAC / 60Hz
ANSI/CAN/UL 9540:2020 certified

View ES-5001000-NA

ES-500500-EU

EVESCO’s ES-500500-EU is an all-in-one containerized energy storage system designed to create tremendous value and flexibility for commercial and...

Specs:

Rated Power: 500kW
Rated Capacity: 553kWh
DC Voltage Range: 672 - 852 VDC
Supply Input: 400VAC / 50Hz
ANSI/CAN/UL 9540:2020 certified

View ES-500500-EU

ES-500500-NA

EVESCO’s ES-500500-NA is an all-in-one containerized energy storage system that creates tremendous value and flexibility for commercial and...

Specs:

Rated Power: 500kW
Rated Capacity: 553kWh
DC Voltage Range: 672 - 852 VDC
Supply Input: 480VAC / 60Hz
ANSI/CAN/UL 9540:2020 certified

View ES-500500-NA

ES-60128-EU

EVESCO’s ES-60128-EU is an all-in-one containerized energy storage system that creates tremendous value and flexibility for commercial and...

Specs:

Rated Power: 60kW
Rated Capacity: 128kWh
DC Voltage Range: 314 - 398 VDC
Supply Input: 400VAC / 50Hz
ANSI/CAN/UL 9540:2020 certified

View ES-60128-EU

ES-60128-NA

EVESCO’s ES-60128-NA is an all-in-one containerized energy storage system that creates tremendous value and flexibility for commercial and...

Specs:

Rated Power: 60kW
Rated Capacity: 128kWh
DC Voltage Range: 314 - 398 VDC
Supply Input: 480VAC / 60Hz
ANSI/CAN/UL 9540:2020 certified

View ES-60128-NA

ES-60192-EU

EVESCO’s ES-60192-EU is an all-in-one containerized energy storage system that creates tremendous value and flexibility for commercial and...

Specs:

Rated Power: 60kW
Rated Capacity: 192kWh
DC Voltage Range: 314 - 398 VDC
Supply Input: 400VAC / 50Hz
ANSI/CAN/UL 9540:2020 certified

View ES-60192-EU

ES-60192-NA

EVESCO’s ES-60192-NA is an all-in-one containerized energy storage system that creates tremendous value and flexibility for commercial and...

Specs:

Rated Power: 60kW
Rated Capacity: 192kWh
DC Voltage Range: 314 - 398 VDC
Supply Input: 480VAC / 60Hz
ANSI/CAN/UL 9540:2020 certified

View ES-60192-NA

ES-60256-EU

EVESCO’s ES-60256-EU is an all-in-one containerized energy storage system that creates tremendous value and flexibility for commercial and...

Specs:

Rated Power: 60kW
Rated Capacity: 256kWh
DC Voltage Range: 314 - 398 VDC
Supply Input: 400VAC / 50Hz
ANSI/CAN/UL 9540:2020 certified

View ES-60256-EU

ES-60256-NA

EVESCO’s ES-60256-NA is an all-in-one containerized energy storage system that creates tremendous value and flexibility for commercial and...

Specs:

Rated Power: 60kW
Rated Capacity: 256kWh
DC Voltage Range: 314 - 398 VDC
Supply Input: 480VAC / 60Hz
ANSI/CAN/UL 9540:2020 certified

View ES-60256-NA

ES-60320-EU

EVESCO’s ES-60320-EU is an all-in-one containerized energy storage system that creates tremendous value and flexibility for commercial and...

Specs:

Rated Power: 60kW
Rated Capacity: 320kWh
DC Voltage Range: 314 - 398 VDC
Supply Input: 400VAC / 50Hz
ANSI/CAN/UL 9540:2020 certified

View ES-60320-EU

ES-60320-NA

EVESCO’s ES-60320-NA is an all-in-one containerized energy storage system that creates tremendous value and flexibility for commercial and...

Specs:

Rated Power: 60kW
Rated Capacity: 320kWh
DC Voltage Range: 314 - 398 VDC
Supply Input: 480VAC / 60Hz
ANSI/CAN/UL 9540:2020 certified

View ES-60320-NA

ES-60384-EU

EVESCO’s ES-60384-EU is an all-in-one containerized energy storage system that creates tremendous value and flexibility for commercial and...

Specs:

Rated Power: 60kW
Rated Capacity: 384kWh
DC Voltage Range: 314 - 398 VDC
Supply Input: 400VAC / 50Hz
ANSI/CAN/UL 9540:2020 certified

View ES-60384-EU

ES-60384-NA

EVESCO’s ES-60384-NA is an all-in-one containerized energy storage system that creates tremendous value and flexibility for commercial and...

Specs:

Rated Power: 60kW
Rated Capacity: 384kWh
DC Voltage Range: 314 - 398 VDC
Supply Input: 480VAC / 60Hz
ANSI/CAN/UL 9540:2020 certified

View ES-60384-NA

ES-90128-EU

EVESCO’s ES-90128-EU is an all-in-one containerized energy storage system that creates tremendous value and flexibility for commercial and...

Specs:

Rated Power: 90kW
Rated Capacity: 128kWh
DC Voltage Range: 314 - 398 VDC
Supply Input: 400VAC / 50Hz
ANSI/CAN/UL 9540:2020 certified

View ES-90128-EU

ES-90128-NA

EVESCO’s ES-90128-NA is an all-in-one containerized energy storage system that creates tremendous value and flexibility for commercial and...

Specs:

Rated Power: 90kW
Rated Capacity: 128kWh
DC Voltage Range: 314 - 398 VDC
Supply Input: 480VAC / 60Hz
ANSI/CAN/UL 9540:2020 certified

View ES-90128-NA

ES-90192-EU

EVESCO’s ES-90192-EU is an all-in-one containerized energy storage system that creates tremendous value and flexibility for commercial and...

Specs:

Rated Power: 90kW
Rated Capacity: 192kWh
DC Voltage Range: 314 - 398 VDC
Supply Input: 400VAC / 50Hz
ANSI/CAN/UL 9540:2020 certified

View ES-90192-EU

ES-90192-NA

EVESCO’s ES-90192-NA is an all-in-one containerized energy storage system that creates tremendous value and flexibility for commercial and...

Specs:

Rated Power: 90kW
Rated Capacity: 192kWh
DC Voltage Range: 314 - 398 VDC
Supply Input: 480VAC / 60Hz
ANSI/CAN/UL 9540:2020 certified

View ES-90192-NA

ES-90256-EU

EVESCO’s ES-90256-EU is an all-in-one containerized energy storage system that creates tremendous value and flexibility for commercial and...

Specs:

Rated Power: 90kW
Rated Capacity: 256kWh
DC Voltage Range: 314 - 398 VDC
Supply Input: 400VAC / 50Hz
ANSI/CAN/UL 9540:2020 certified

View ES-90256-EU

ES-90256-NA

EVESCO’s ES-90256-NA is an all-in-one containerized energy storage system that creates tremendous value and flexibility for commercial and...

Specs:

Rated Power: 90kW
Rated Capacity: 256kWh
DC Voltage Range: 314 - 398 VDC
Supply Input: 480VAC / 60Hz
ANSI/CAN/UL 9540:2020 certified

View ES-90256-NA

ES-90320-EU

EVESCO’s ES-90320-EU is an all-in-one containerized energy storage system that creates tremendous value and flexibility for commercial and...

Specs:

Rated Power: 90kW
Rated Capacity: 320kWh
DC Voltage Range: 314 - 398 VDC
Supply Input: 400VAC / 50Hz
ANSI/CAN/UL 9540:2020 certified

View ES-90320-EU

ES-90320-NA

EVESCO’s ES-90320-NA is an all-in-one containerized energy storage system that creates tremendous value and flexibility for commercial and...

Specs:

Rated Power: 90kW
Rated Capacity: 320kWh
DC Voltage Range: 314 - 398 VDC
Supply Input: 480VAC / 60Hz
ANSI/CAN/UL 9540:2020 certified

View ES-90320-NA

ES-90384-EU

EVESCO’s ES-90384-EU is an all-in-one containerized energy storage system that creates tremendous value and flexibility for commercial and...

Specs:

Rated Power: 90kW
Rated Capacity: 384kWh
DC Voltage Range: 314 - 398 VDC
Supply Input: 400VAC / 50Hz
ANSI/CAN/UL 9540:2020 certified

View ES-90384-EU

ES-90384-NA

EVESCO’s ES-90384-NA is an all-in-one containerized energy storage system that creates tremendous value and flexibility for commercial and...

Specs:

Rated Power: 90kW
Rated Capacity: 384kWh
DC Voltage Range: 314 - 398 VDC
Supply Input: 480VAC / 60Hz
ANSI/CAN/UL 9540:2020 certified

View ES-90384-NA

The electric grid is facing challenges that have never been experienced before. The electrification of transport, heating, and other technologies has increased electricity demand worldwide, and consumers are demanding clean, reliable, and affordable energy. Innovative battery storage is helping transform the grid, making it more reliable and resilient while unlocking new opportunities and revenue streams for businesses. Battery energy storage systems are an essential asset within the energy mix. They can be utilized both behind-the-meter to give energy users more control over their energy and reduce costs and front-of-the-meter to help stabilize and bring more resilience to the grid.

WORK WITH EVESCO

We understand the complexities of energy storage and power conversion and will assess your requirements to ensure you get the optimal solution for your specific needs. We offer standardized energy storage systems and customized solutions tailored to your exacting power and capacity requirements.

Reduce Energy Bills

By optimizing their energy, businesses maximize savings by reducing peak grid usage and demand charges on energy bills

Lower Greenhouse Gas Emissions

Demonstrate leadership in sustainability and increase control over clean energy usage to meet ESG objectives

Generate Revenue

By participating in demand response programs that help relieve stress on the grid, businesses can generate additional revenue

Increase Business Resilience

With the negative effects of increasing blackouts, surges, and power outages, the need for reliable backup power has never been so critical
