PSL-SH SERIES - HIGH RATE LITHIUM BATTERIES

RANGE FEATURES

  • Super safe lithium iron phosphate (LiFePO4) chemistry
  • Delivers twice the power of lead acid batteries, even at high discharge rates, while maintaining constant power
  • Compact design and only 40% of the weight of comparable lead acid batteries
  • An intelligent protection circuit module (PCM) controls the parameters of the battery to provide optimum safety
  • Faster charging and lower self-discharge
  • Up to 10 times longer cycle life than lead acid batteries
  • Higher voltage capability through serial connections
  • Rugged impact resistant ABS case and cover
Summary Image

QUALITY LITHIUM BATTERIES FOR HIGH RATE DISCHARGE APPLICATIONS

Power Sonic’s PSL-SH series has been specifically designed as a drop-in replacement to lead acid batteries. Combining proven lithium iron phosphate (LiFePO4) technology with an intelligent protection circuit module (PCM), the PSL-SH series delivers more power, faster charging and a longer life at less than half the weight of the equivalent lead acid battery.

With high efficiency and ultra-fast charging and discharging the PSL-SH series is ideal for industrial applications where a long-life span and quick charging capabilities are needed. At the heart of every PSL-SH lithium battery is an intelligent PCM that monitors and reacts to multiple voltage and current events to maximize performance, battery life and safety. The PCM includes a balancing circuit that controls all cell voltages in the battery, making sure they are constantly at the same voltage level, optimizing battery capacity.

KNOW YOUR BATTERY MODEL NUMBER?

If you know the model number of the battery you are looking for, please enter it below.

Oops looks like something went wrong

X

WANT TO FILTER OUR FULL BATTERY RANGE?

Click here

PSL-SH SERIES Batteries

Sort by



Voltage

Capacity

Min (6)
01

Max (11)
01

Weight (Kg) (Pound)

01

Terminal Options

Height (mm) (inches)

01

Length (mm) (inches)

01

Width (mm) (inches)

01

PSL-SH-12100

The PSL-SH-12100 is part of our high rate lithium series which have been designed as a drop-in replacement to lead acid batteries. The 12.8V 10.8Ah...

Capacity Ah :

10.8 AH

Voltage:

12.8V

View PSL-SH-12100

PSL-SH-12110

The PSL-SH-12110 is part of our high rate lithium series which have been designed as a drop-in replacement to lead acid batteries. The 12.8V 11.4Ah...

Capacity Ah :

11.4 AH

Voltage:

12.8V

View PSL-SH-12110

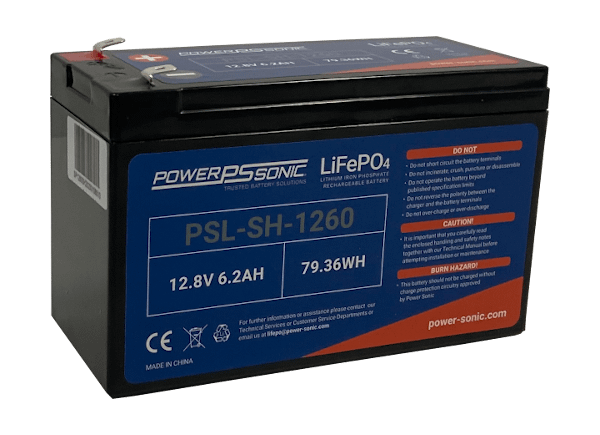

PSL-SH-1260

The PSL-SH-1260 is part of our high rate lithium series which have been designed as a drop-in replacement to lead acid batteries. The 12.8V 6.2Ah...

Capacity Ah :

6.2 AH

Voltage:

12.8V

View PSL-SH-1260

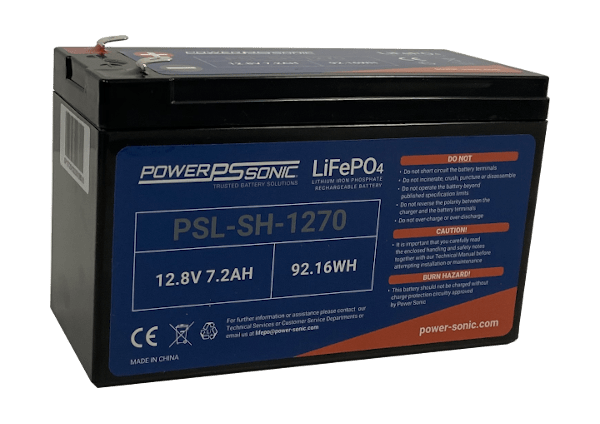

PSL-SH-1270

The PSL-SH-1270 is part of our high rate lithium series which have been designed as a drop-in replacement to lead acid batteries. The 12.8V 7.2Ah...

Capacity Ah :

7.2 AH

Voltage:

12.8V

View PSL-SH-1270

LiFePO4 batteries are much safer than other lithium battery technologies. Using them reduces the risk of explosion or combustion due to high impact, over-charging or short circuit situations. Not only are they safer but they can be mounted in any direction and will never leak.

Lithium offers several performance benefits versus it's sealed lead acid (SLA) equivalent. A lithium battery's capacity is independent from the discharge rate and provides constant power throughout it's discharge. The degredation of a lithium battery at a high temperature is significantly reduced in comparison to SLA. Lithium has ten times the cycle life as SLA at room temperature. Even at an elevated temperature, lithium still has increased cycle life.

Lastly, Lithium charging follows a similar charging profile as SLA, Constant Current Constant Voltage (CC/CV). However, lithium can be charged faster, without the need for a maintenance float charge. Take a look at these blog posts for more information on lithium vs lead acid batteries and how to charge a lithium battery.
