Range _ Charge:
Range _ Discharge:
Range _ Recommended:
PSH series general-purpose high-rate batteries deliver quick discharge and dependable performance for standby and light cyclic applications.

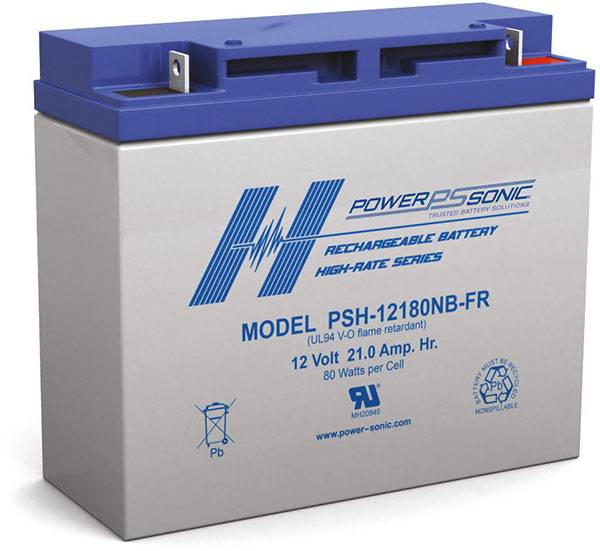

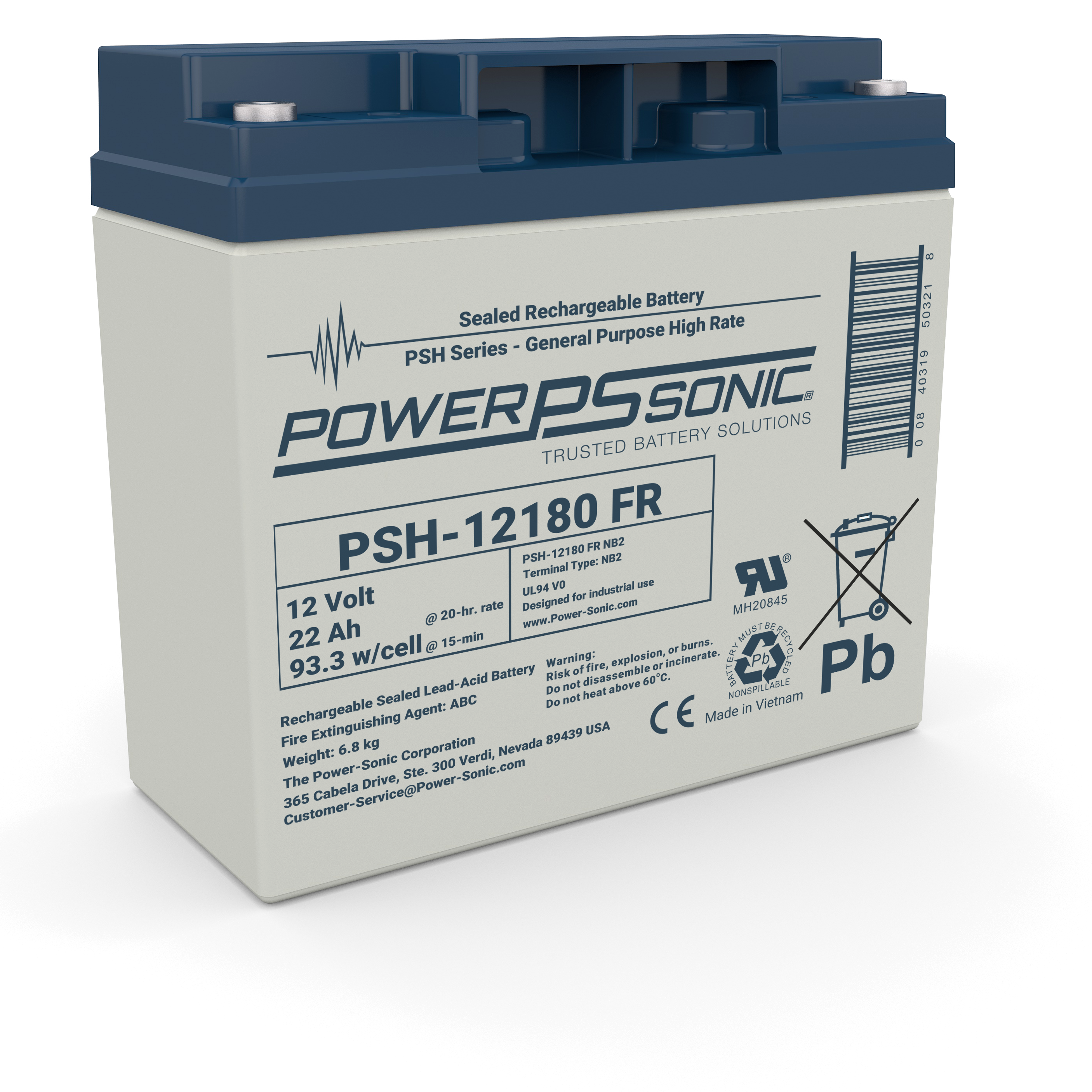

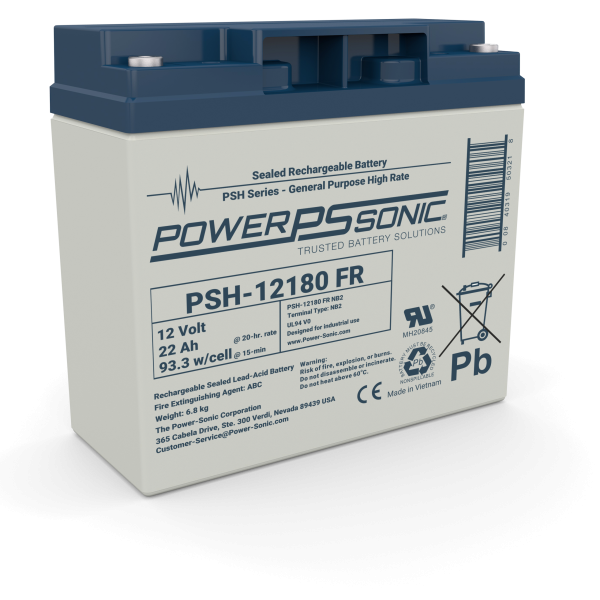

The PSH-12180 FR is part of our High Rate Discharge Batteries range. This 12.0V and 18.9Ah battery provides high rate discharge and dependable performance. Features include AGM Technology, High-Rate UPS Application, Power Volume Ratio, SLA ABS Case, and SLA Maintenance Free. These batteries are commonly used in Edge Data Center, Fire Security, Telecomm, and UPS requiring rapid discharge in standby and light cyclic use. Backed by decades of expertise, Power-Sonic batteries are subject to stringent quality controls through each step of the manufacturing process to ensure compliance, performance consistency, and reliability.
Cycle Applications: Apply constant voltage charge at 2.35VPC – 2.45VPC (14.1 to 14.7 volts for 12V Monobloc) at 20°C. The initial charging current should be set at less than C/5 Amps. Switch to float charge when the current falls to a 3% capacity rate to avoid overcharging. Stand-By or "Float" Service: Apply constant voltage charge of 2.25VPC – 2.30VPC (13.5 to 13.8 volts for 12V Monobloc) at 20°C. When held at this voltage, the battery will seek its own current level and maintain itself in a fully charged condition. Temperature Compensation: Charging voltage for both cyclic and stand-by applications should be regulated in relation to ambient temperature. As temperature rises, charging voltage should be reduced to prevent overcharge and increased as the temperature falls to avoid undercharge. For further charging information, including temperature compensation factors, see the Power-Sonic Technical Manual.
