Range _ Charge:
Range _ Discharge:
Range _ Recommended:
Engineered with thick plates for superior deep-discharge recovery, these spill-proof VRLA batteries deliver low self-discharge, broad temperature tolerance, and reliable cyclic performance in the most demanding environments.

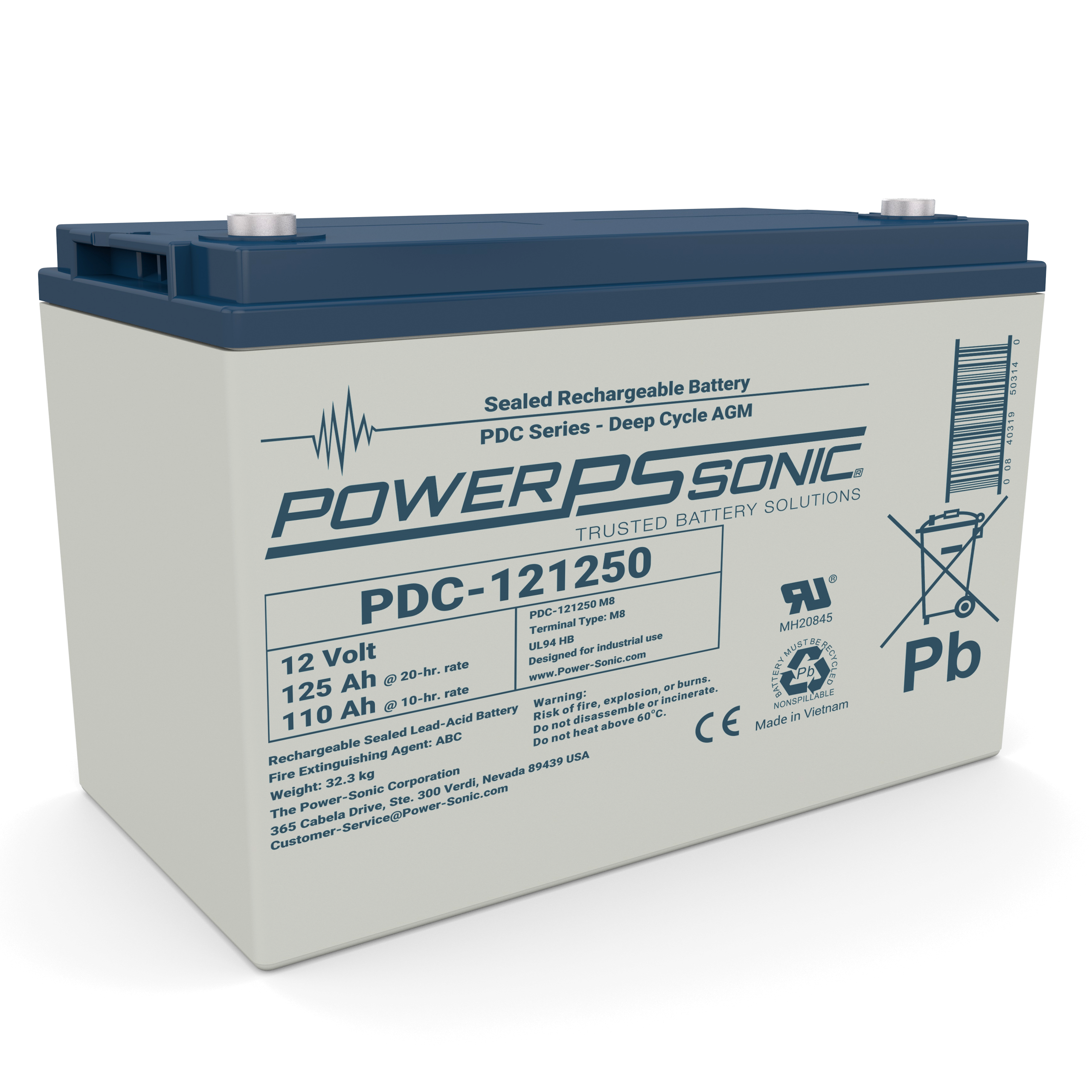

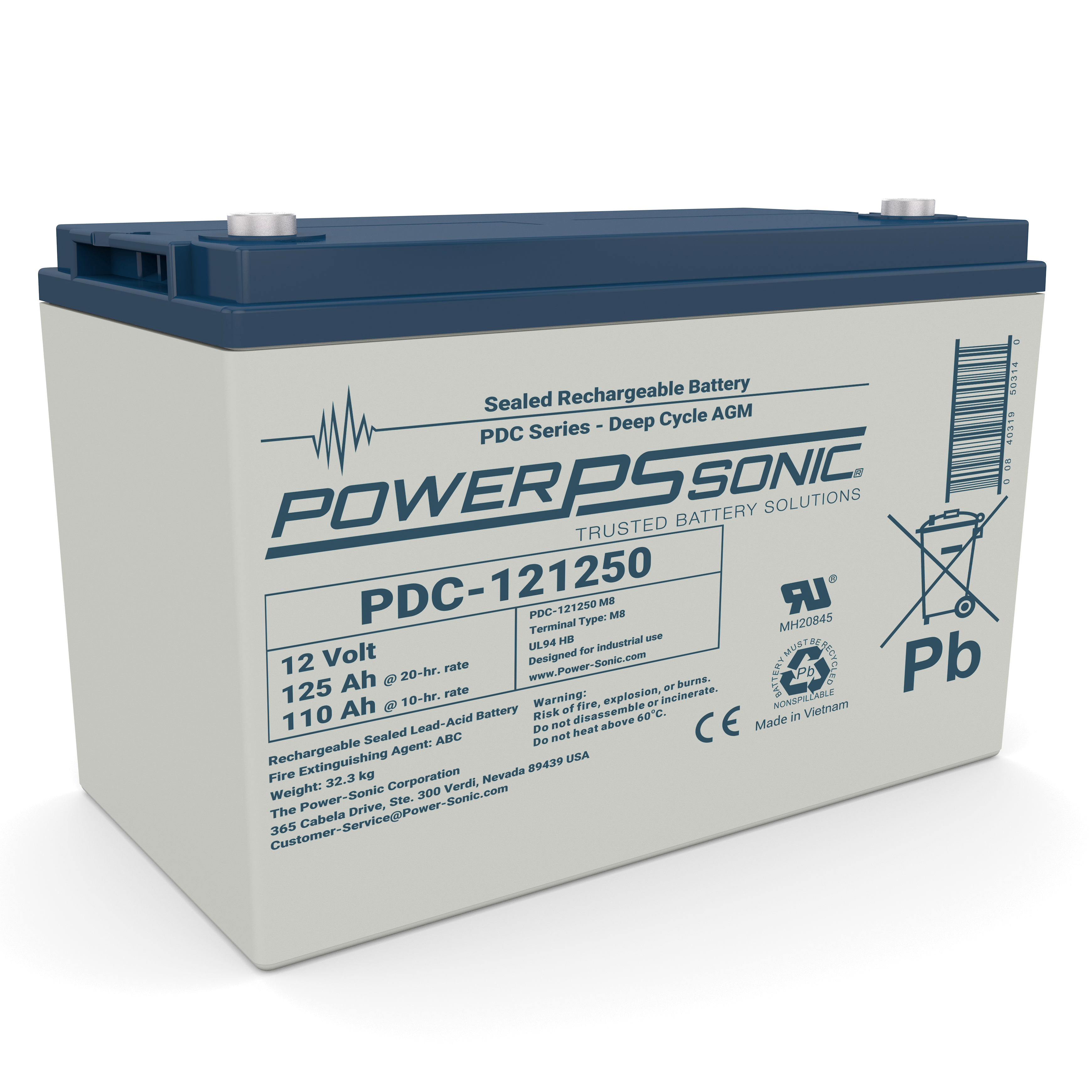

The PDC-121250 is part of our Deep Cycle AGM range. This 12.0V and 110.0Ah battery features long cycle life and deep discharge capability. Key advantages include AGM Technology, Deep Cycle Paste, Power Volume Ratio, SLA ABS Case, and SLA Maintenance Free and suitability for Golf Carts, Medical, Mobility, Solar, and Wind. Backed by decades of expertise, Power-Sonic batteries are subject to stringent quality controls through each step of the manufacturing process to ensure compliance, performance consistency, and reliability.
Cycle Applications: Apply constant voltage charge at 2.35VPC – 2.45VPC (14.1 to 14.7 volts for 12V Monobloc) at 20°C. The initial charging current should be set at less than C/5 Amps. Switch to float charge when the current falls to a 3% capacity rate to avoid overcharging. Stand-By or "Float" Service: Apply constant voltage charge of 2.25VPC – 2.30VPC (13.5 to 13.8 volts for 12V Monobloc) at 20°C. When held at this voltage, the battery will seek its own current level and maintain itself in a fully charged condition. Temperature Compensation: Charging voltage for both cyclic and stand-by applications should be regulated in relation to ambient temperature. As temperature rises, charging voltage should be reduced to prevent overcharge and increased as the temperature falls to avoid undercharge. For further charging information, including temperature compensation factors, see the Power-Sonic Technical Manual.
