EVES-6060

The EVES-6060 is part of our Off-Grid Mobile EV Chargers range. This EV Charger provides flexible, off-grid charging built for remote locations or emergency response. Features include and Charger Universal Voltage. These chargers are commonly used in and EV Charging requiring rapid deployment where grid access is limited. Backed by decades of expertise, Power-Sonic products are subject to stringent quality controls through each step of the manufacturing process to ensure compliance, performance consistency, and reliability.
Request A QuoteGet Datasheet
Product Group Information
The EVES series is designed for situations where grid power is unavailable, unreliable, or impractical. Integrating high-capacity LFP battery storage with DC fast charging, EVES enables dependable vehicle charging without reliance on utility infrastructure. The system supports multi-standard charging for mixed fleets, with up to two DC outputs and an additional Level 2 output to serve diverse vehicle types. Flexible recharging options allow the system to be replenished via an AC grid connection or from an existing DC fast charger, maximizing uptime between deployments. EVES systems are commonly used for emergency response, disaster recovery, temporary charging sites, and remote operations where off-grid capability and rapid deployment are critical.
Warranty
3 years as standard
Operating Temperature Range:
-4°F (-20°C) to 131°F (55°C)
Group Information:

Battery-integrated DC fast charging systems delivering reliable off-grid charging for outages, emergencies, and remote locations.

Product Description:

Deploy EV charging anywhere, without relying on grid infrastructure. The EVES-60/60 (EU) combines 60 kW DC fast charging with 60 kWh of integrated battery storage, enabling immediate deployment in remote, temporary, or grid-constrained locations. Designed for maximum operational flexibility, the EVES Series can be configured with up to three charging outputs, including two DC fast charging connectors and one AC Level 2 connection, supporting a wide range of vehicles and use cases from a single unit. With a fully integrated LFP battery system and stand-alone architecture, the off-grid EV charging system enables rapid commissioning with minimal setup, allowing charging operations to begin wherever power is needed. Flexible recharging options via a 400 VAC grid connection or DC fast charging ensure continuous operation and high uptime, even in demanding environments. Built for mobility and adaptability, the EVES-60/60 (EU) can be deployed as a standalone unit or integrated into vehicle- or trailer-mounted solutions, providing a scalable, off-grid charging platform that expands with your operational needs.

Expand
Frequency (Hz) 50/60
Electrical Protection Charging Device: Over / under voltage protection, overload protection, short circuit protection, over / under temperature protection, surge protection, communication failure, Battery: Over charge / discharge protection, over current protection, over / under temperature protection, short circuit protection.
Recharging the Battery Grid: 400Vac +/- 10% (3P+N+PE), DC Charging Station: CCS2
Stored Energy (Wh) 60
Cycle Life 6000
Output Power (kW) 60
Output Voltage Range (Vdc) 200 - 920
Input Voltage +/- 10% (Vac) 400
Battery Chemistry LiFePO4

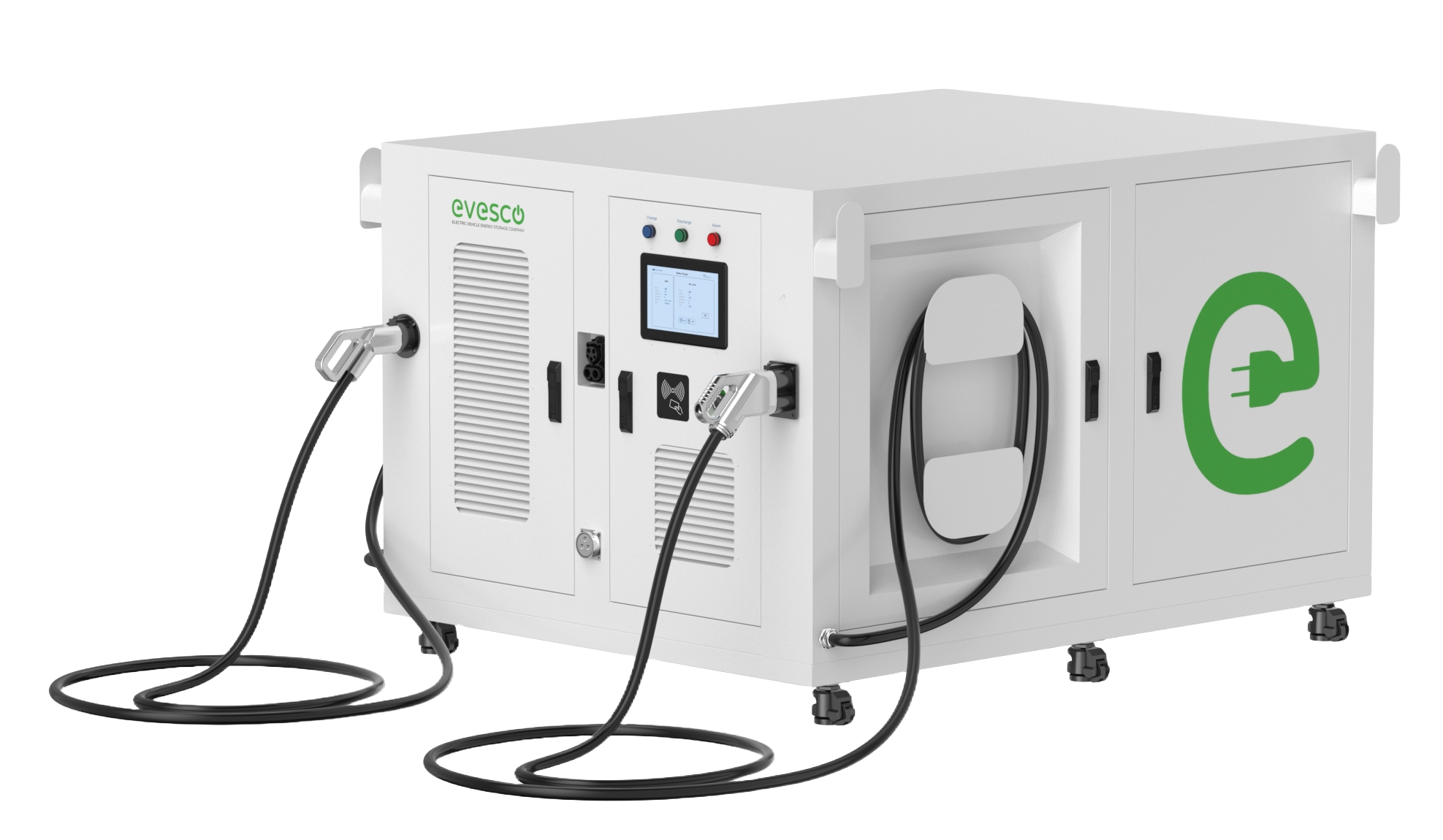

Product Image
EVES-6060
Length in (mm) 63.0 (1600.0)
Width in (mm) 50.4 (1280.0)
Height in (mm) 48.0 (1220.0)
IP Rating IP54
Communication Protocol OCPP 1.6
Authentication Modes Auto charge, RFID, Customer backend via OCPP, Payment terminal
Emergency Stop Button Yes
IK Rating IK10
Display Dual 10-Inch LCD touchscreens
Operating Humidity 5% - 95% without condensation
Network Connectivity Ethernet, 4G, Wi-Fi
POS (Credit Card Reader) Optional
EV Charging
EV Charging
Available in US: y
Available in EMEA: y
Cooling Method: Forced air cooling
Connector Type: CCS2 + CCS2
Output Max. Current (A): 125 / 125
Supply Input: 3P + PE
Charging Cable Length (Ft): 29.5
Charging Cable Length (M): 9.0
Available in US: y
Available in EMEA: y
Cooling Method: Forced air cooling
Connector Type: CCS2 + CCS2 + Type 2
Output Max. Current (A): CSS2: 125 / Type2: 40
Supply Input: 3P + PE
Charging Cable Length (Ft): 29.5
Charging Cable Length (M): 9.0
Available in US: y
Available in EMEA: y
Cooling Method: Forced air cooling
Connector Type: CCS2 + GBT
Output Max. Current (A): CCS2: 125 / GBT: 125
Supply Input: 3P + PE
Charging Cable Length (Ft): 29.5
Charging Cable Length (M): 9.0
Available in US: y
Available in EMEA: y
Cooling Method: Forced air cooling
Connector Type: CCS2 + GBT + Type 2
Output Max. Current (A): CSS2: 125 / GBT: 125 / Type2: 40
Supply Input: 3P + PE
Charging Cable Length (Ft): 29.5
Charging Cable Length (M): 9.0
Available in US: y
Available in EMEA: y
Cooling Method: Forced air cooling
Connector Type: CCS2 + CCS2
Output Max. Current (A): 125 / 125
Supply Input: 3P + PE + N
Charging Cable Length (Ft): 29.5
Charging Cable Length (M): 9.0
Available in US: y
Available in EMEA: y
Cooling Method: Forced air cooling
Connector Type: CCS2 + CCS2 + Type 2
Output Max. Current (A): CSS2: 125 / Type2: 40
Supply Input: 3P + PE + N
Charging Cable Length (Ft): 29.5
Charging Cable Length (M): 9.0
Available in US: y
Available in EMEA: y
Cooling Method: Forced air cooling
Connector Type: CCS2 + GBT
Output Max. Current (A): CCS2: 125 / GBT: 125
Supply Input: 3P + PE + N
Charging Cable Length (Ft): 29.5
Charging Cable Length (M): 9.0
Available in US: y
Available in EMEA: y
Cooling Method: Forced air cooling
Connector Type: CCS2 + GBT + Type 2
Output Max. Current (A): CSS2: 125 / GBT: 125 / Type2: 40
Supply Input: 3P + PE + N
Charging Cable Length (Ft): 29.5
Charging Cable Length (M): 9.0

Features and Documents

Charger Universal Voltage

Universal input voltage range 100VAC - 240VAC
