ES-125233-NA

All-in-One BESS Series

Contact us
Download Technical Data Sheet

Features

Specifications

  • All-in-one design integrates battery and PCS for faster deployment and minimal installation effort
  • 125 kW output with 233 kWh capacity delivers strong, consistent performance across applications
  • Buy American Act-compliant system supports federal infrastructure projects and public sector procurement
  • Advanced liquid cooling ensures stable operation and extends battery life in all conditions
  • UL9540 certified for industry-leading safety in critical power environments
  • Integrated EMS provides remote monitoring, smart automation, and real-time performance optimization
  • Compact footprint simplifies logistics and maximizes space efficiency for constrained sites
  • Built-in fire suppression and intelligent BMS deliver robust safety and protection

Model Number:

ES-125233-NA

Rated Power:

125 kW

Input / Output Voltage:

480 VAC (+/- 10%)

Input / Output Frequency:

60Hz

Rated DC Capacity:

233 kWh

DC Voltage Range:

761 - 923 VDC

Battery Chemistry:

Lithium Iron Phosphate (LiFePO4)

Communication:

CAN, RS485, WiFi, LTE

All-in-One:

Battery, BMS, Thermal Management, PCS, Fire Suppression, Smart Controller, EMS

Example Applications:

Solar + Storage, EV Charging, Micro-Grid, Peak-Shaving, Demand management, Backup Power

Dimensions

Width:

43'' / 1100mm

Depth:

57'' / 1450mm

Height:

91'' / 2320mm

  • All-in-one design integrates battery and PCS for faster deployment and minimal installation effort
  • 125 kW output with 233 kWh capacity delivers strong, consistent performance across applications
  • Buy American Act-compliant system supports federal infrastructure projects and public sector procurement
  • Advanced liquid cooling ensures stable operation and extends battery life in all conditions
  • UL9540 certified for industry-leading safety in critical power environments
  • Integrated EMS provides remote monitoring, smart automation, and real-time performance optimization
  • Compact footprint simplifies logistics and maximizes space efficiency for constrained sites
  • Built-in fire suppression and intelligent BMS deliver robust safety and protection

Model Number:

ES-125233-NA

Rated Power:

125 kW

Input / Output Voltage:

480 VAC (+/- 10%)

Input / Output Frequency:

60Hz

Rated DC Capacity:

233 kWh

DC Voltage Range:

761 - 923 VDC

Battery Chemistry:

Lithium Iron Phosphate (LiFePO4)

Communication:

CAN, RS485, WiFi, LTE

All-in-One:

Battery, BMS, Thermal Management, PCS, Fire Suppression, Smart Controller, EMS

Example Applications:

Solar + Storage, EV Charging, Micro-Grid, Peak-Shaving, Demand management, Backup Power

Dimensions

Width:

43'' / 1100mm

Depth:

57'' / 1450mm

Height:

91'' / 2320mm

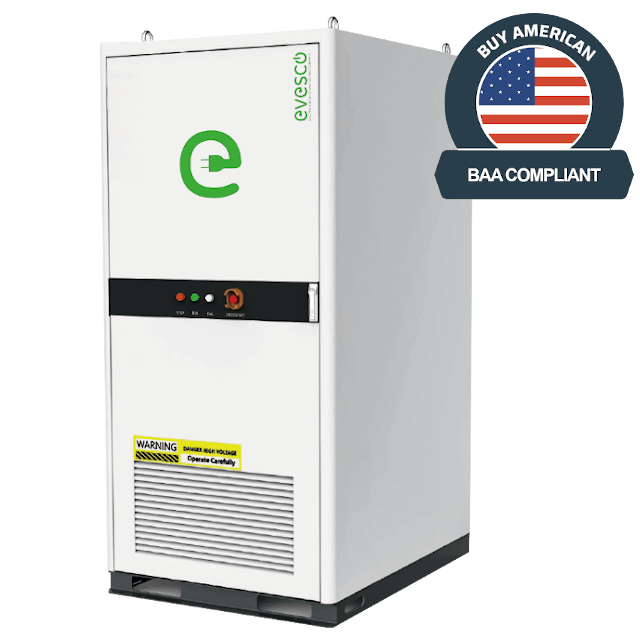

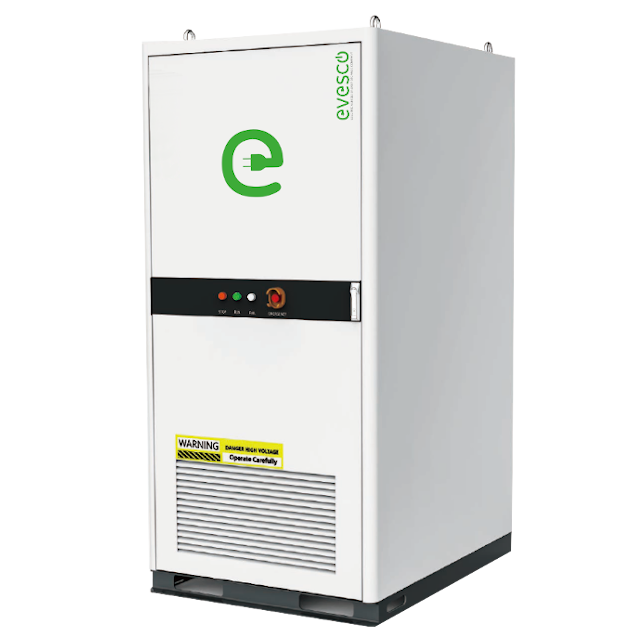

Product Image

The ES-125233-NA BESS is compliant with the Buy American Act (BAA) and certified to ANSI/CAN/UL 9540:2020 standards. It also meets CEPA and NFPA safety codes.

MODEL SUMMARY

The ES-125233-NA is a compact, all-in-one battery energy storage system that combines high-capacity lithium storage with an integrated power conversion system in a single enclosure. With a 125 kW output and 233 kWh of energy capacity, it’s engineered for rapid deployment, reduced installation complexity, and minimal site footprint. This fully integrated design makes it ideal for commercial EV charging, microgrids, and backup power applications where space, speed, and simplicity matter most.

Fully compliant with the Buy American Act (BAA), the ES-125233-NA may qualify for U.S. federal infrastructure funding and public sector projects. It is certified to UL9540 safety standards, ensuring high-performance operation and regulatory alignment in mission-critical environments. With advanced liquid cooling, an intelligent EMS, and built-in fire suppression, the system delivers safe, resilient, and intelligent energy storage from day one.
