PSL-SH-12100

PSL-SH Series

Where to buy
Download Technical Data Sheet

Features

Specifications

Terminal Options

  • High rate lithium battery
  • Protection Circuit Module (PCM) controls the parameters of the battery to provide optimum safety and performance
  • Delivers twice the power of lead acid batteries, even at high discharge rates, while maintaining constant power
  • Super safe lithium iron phosphate (LiFePO4) chemistry
  • Compact design and only 40% of the weight of comparable lead acid batteries
  • A drop-in replacement to lead acid batteries
  • Faster charging and lower self-discharge
  • Up to 10 times longer cycle life than lead acid batteries

Model Number:

PSL-SH-12100

Nominal voltage:

12.8V

Capacity @20HR (AH):

10.8 Ah

Weight:

1.25kg / 2.75lbs

Case:

ABS

Dimensions

Length:

5.95'' / 151mm

Width:

2.56'' / 65mm

Height:

3.86'' / 98mm

F2
Terminal Info
  • High rate lithium battery
  • Protection Circuit Module (PCM) controls the parameters of the battery to provide optimum safety and performance
  • Delivers twice the power of lead acid batteries, even at high discharge rates, while maintaining constant power
  • Super safe lithium iron phosphate (LiFePO4) chemistry
  • Compact design and only 40% of the weight of comparable lead acid batteries
  • A drop-in replacement to lead acid batteries
  • Faster charging and lower self-discharge
  • Up to 10 times longer cycle life than lead acid batteries

Model Number:

PSL-SH-12100

Nominal voltage:

12.8V

Capacity @20HR (AH):

10.8 Ah

Weight:

1.25kg / 2.75lbs

Case:

ABS

Dimensions

Length:

5.95'' / 151mm

Width:

2.56'' / 65mm

Height:

3.86'' / 98mm

F2
Terminal Info

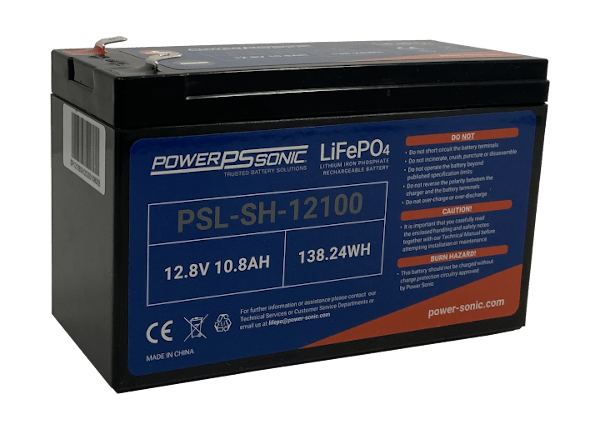

Product Image

Protection Circuit Module features include over-current protection, over-charge protection, over-discharge protection, short circuit protection and over-temperature protection.

MODEL SUMMARY

The PSL-SH-12100 is part of our high rate lithium series which have been designed as a drop-in replacement to lead acid batteries. The 12.8V 10.8Ah LiFePO4 battery delivers more power, faster charging and a longer life than comparable lead acid batteries. With high efficiency and ultra-fast charging and discharging capabilities the PSL-SH series is an ideal solution for industrial applications where a long service life and quick charging is needed.

The PSL-SH series comes with a protection circuit module (PCM) which monitors current and voltages during charge and discharge. This protects the battery from over-charge and over-discharge. The PCM includes a balancing circuit that controls all cell voltages in the battery, making sure they are constantly at the same voltage level, optimizing battery capacity.
