PSL-12450E

PSL Series

Where to buy
Download Technical Data Sheet

Features

Specifications

Terminal Options

  • High performance LiFePO4 battery
  • Compact and only 40% of the weight of comparable lead acid battery
  • Up to 2000 times longer cycle life
  • Delivers twice the power of lead acid batteries, even high discharge rate, while maintaining high energy capacity
  • Super safe chemistry reducing the risk of explosion or combustion due to high impact, overcharging or short circuit situation
  • Rugged impact resistant ABS case and cover flame retardant to UL94:V-0
  • Smart electrical design for enhanced temperature control
  • Integrated battery management system (BMS) controls the parameters of the battery to provide optimum safety and performance

Model Number:

PSL-12450E

Nominal voltage:

12.8V

Capacity @20HR (AH):

45.00 Ah

Capacity @10HR (AH):

45.00 Ah

Capacity @5HR (AH):

45.00 Ah

Weigth:

5.8kg / 12.8lbs

Case:

UL94:V0 Flame retardant plastic

Dimensions

Length:

7.68'' / 195mm

Width:

5.12'' / 130mm

Height:

7.20'' / 183mm

M6
  • High performance LiFePO4 battery
  • Compact and only 40% of the weight of comparable lead acid battery
  • Up to 2000 times longer cycle life
  • Delivers twice the power of lead acid batteries, even high discharge rate, while maintaining high energy capacity
  • Super safe chemistry reducing the risk of explosion or combustion due to high impact, overcharging or short circuit situation
  • Rugged impact resistant ABS case and cover flame retardant to UL94:V-0
  • Smart electrical design for enhanced temperature control
  • Integrated battery management system (BMS) controls the parameters of the battery to provide optimum safety and performance

Model Number:

PSL-12450E

Nominal voltage:

12.8V

Capacity @20HR (AH):

45.00 Ah

Capacity @10HR (AH):

45.00 Ah

Capacity @5HR (AH):

45.00 Ah

Weigth:

5.8kg / 12.8lbs

Case:

UL94:V0 Flame retardant plastic

Dimensions

Length:

7.68'' / 195mm

Width:

5.12'' / 130mm

Height:

7.20'' / 183mm

M6

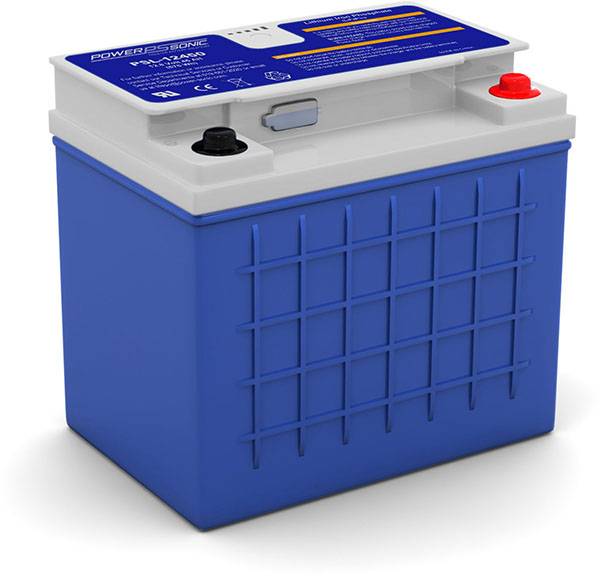

Product Image

E3 – With SMBus series PCM (With communications port)

MODEL SUMMARY

The PSL-12450E is part of our PSL range of Lithium Iron Phosphate (LiFePO4) batteries which have been engineered to offer a lighter, longer life and higher power solution when compared to standard lead acid batteries. The 12.8V 45.00Ah LiFePO4 battery offers up to 10 times more cycles at 40% of the weight of the equivalent lead acid battery. Applications include renewable energy, telecoms, medical and electric vehicles. The PSL-12450E has an integrated battery management system (BMS) which controls the parameters of the battery to provide optimum safety and performance. Enhanced design balances the battery cells and protects against overcharging or over discharging.

Power Sonic’s cutting-edge manufacturing and process control combined with meticulous quality assurance procedures guarantee consistent and dependable performance.
